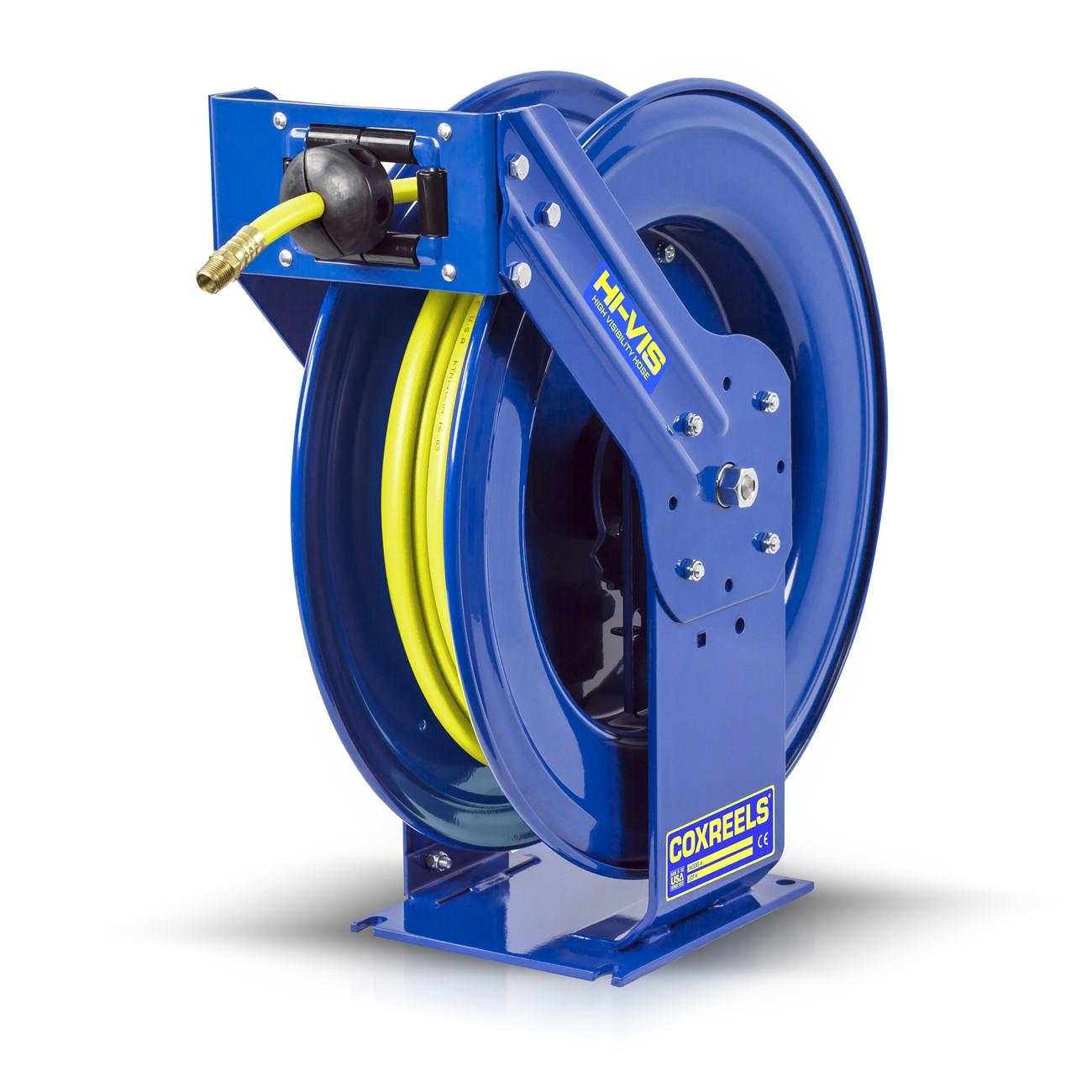

Coxreels TSH-N-475-HV Hv Safety Hose Reel 1/2 in

Product Description

The COXREELS TSH-N-475-HV is a high-visibility safety hose reel built for industrial and trade environments where hose management and operator awareness are critical. The reel features a hybrid bright yellow hose with a white glossy stripe, combining PVC and rubber construction to deliver flexibility, kink resistance, and reduced coil memory. The hose lays flat to minimize trip hazards on the shop floor or job site. The reel assembly is built around heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, a solid one-piece steel base, and a cartridge-style retraction motor. Licensed tradespeople and maintenance technicians working in HVAC, industrial, or facility service applications typically specify this unit for pressurized fluid or air service delivery.

The TSH-N-475-HV is suited for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to service bays, mechanical rooms, and fleet maintenance facilities. The 1/2 inch inner diameter hose path accommodates moderate-flow compressed air or fluid lines at standard trade pressures. The guide arm adjusts to multiple mounting orientations without requiring reel removal. Applications include industrial air supply, fluid transfer, and general hose management in commercial and light industrial settings where high-visibility safety compliance is a priority.

Key Features

• High-visibility hybrid hose in bright yellow with white glossy stripe reduces job site trip hazard potential and increases operator awareness
• Hybrid PVC and rubber hose construction delivers improved low-temperature flexibility, kink resistance, and reduced coil memory compared to standard PVC hose
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base with dual pedestal design and triple axle super-hub support for maximum stability without welded joints
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed and lubricated cartridge-style motor is removable for convenient servicing; chip-resistant CPC powder coat finish on all metal components

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for industrial and trade pressurized hose management systems requiring a 1/2 inch ID hose path and steel construction.

Installation Notes

Installation is typically performed by a qualified industrial mechanic or licensed tradesperson. Before mounting or servicing the reel, depressurize and shut off the supply line at the source valve. The guide arm supports wall, floor, ceiling, and vehicle mounting configurations — confirm fastener rating and substrate load capacity before mounting. Follow applicable facility safety codes and manufacturer mounting guidelines when positioning the unit in high-traffic areas.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Type: Hybrid PVC and rubber blend, high-visibility yellow with white stripe
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Material: Steel, one-piece dual pedestal, no-weld design
• Swivel: Machined solid brass, 90-degree full-flow NPT
• Motor Type: Enclosed lubricated cartridge-style
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255752733

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-475-HV
