Coxreels TSH-N-450-HV Hv Safety Hose Reel 1/2 in Id Steel

Product Description

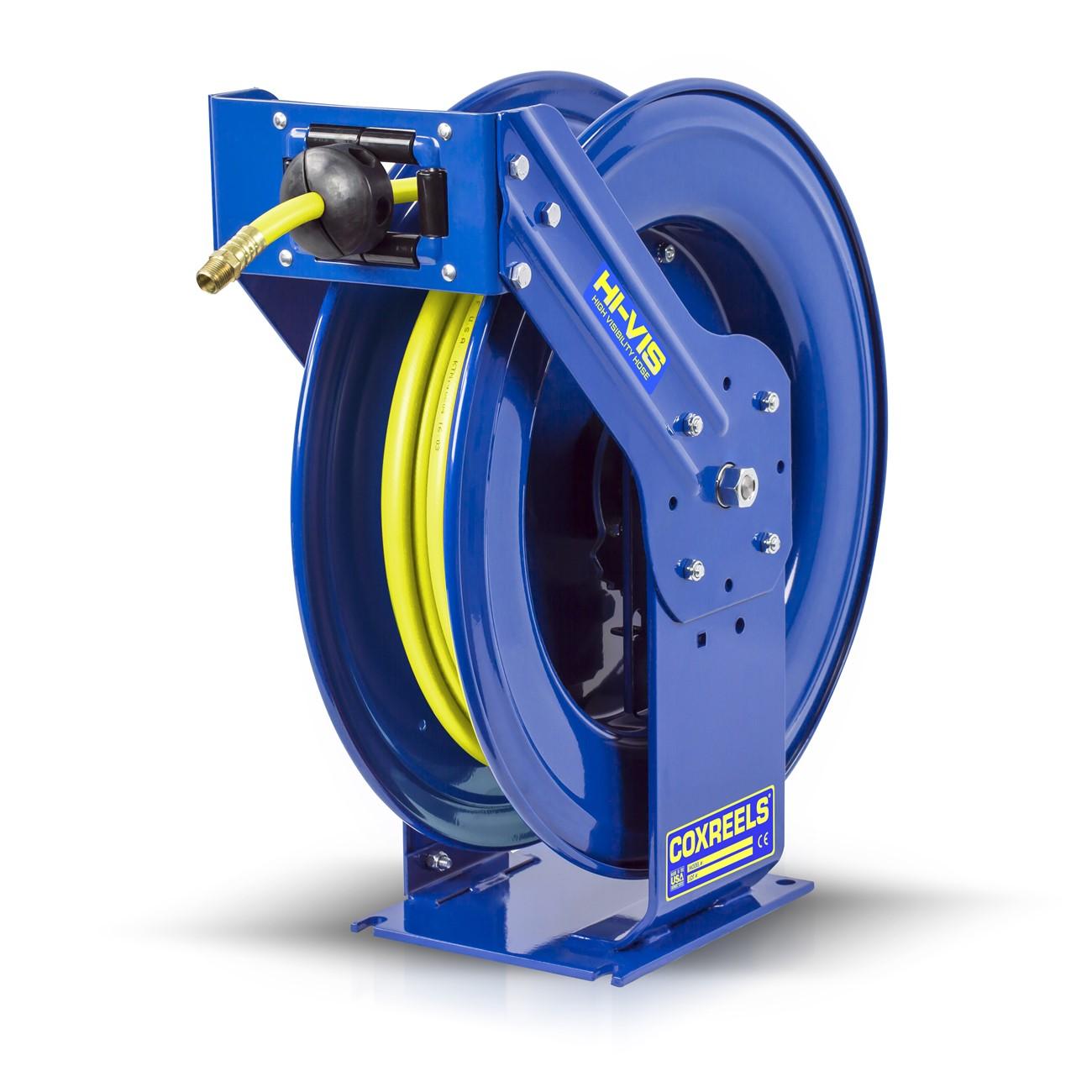

The COXREELS TSH-N-450-HV is a high-visibility spring-retractable safety hose reel built for demanding trade and industrial environments. The reel features a bright yellow hybrid hose with a white glossy stripe, making it easy to spot in busy shops, service bays, and worksites. The drum and disc assembly is constructed from heavy-duty steel with CNC robotically spun and ribbed discs, rolled edges, and a chip-resistant CPC powder coat finish. A machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and simple seal maintenance without removing the reel from its mount. Licensed contractors, fleet service technicians, and industrial maintenance crews install this unit in both fixed and mobile applications.

The TSH-N-450-HV suits a wide range of fluid delivery and compressed air applications where hose visibility and controlled retraction are a priority. It is used in automotive service, industrial maintenance, construction, and fleet operations. The reel mounts to walls, floors, ceilings, and vehicles via an adjustable guide arm, making it adaptable to tight or unconventional workspaces. The 1/2-inch ID, 3/4-inch OD hose configuration is appropriate for air, water, and compatible fluid service lines common in trade shop environments.

Key Features

• High-visibility hybrid hose — bright yellow body with white glossy stripe for improved worksite awareness and reduced trip hazard
• Hybrid PVC-rubber construction delivers enhanced kink resistance, reduced coil memory, improved low-temperature flexibility, and a non-marring jacket surface
• Machined solid brass 90-degree full-flow NPT swivel supports seal maintenance and hose changes without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe servicing without special tools
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and operator safety
• Dual pedestal steel base with no-weld one-piece construction and triple axle support hub for maximum stability
• Adjustable guide arm mounts to wall, floor, ceiling, or vehicle; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-retractable hose reel for trade shop, industrial, and mobile service installations requiring a 1/2-inch ID hose path with standard NPT swivel connections.

Installation Notes

Install by a qualified technician familiar with compressed air or fluid distribution systems. Shut off all supply pressure and depressurize the line before mounting or servicing the reel. Secure the mounting base to a structural surface capable of supporting the reel weight plus hose and fluid load. Verify that NPT thread sealant or tape is applied to all threaded connections and confirm the swivel rotates freely before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Type: Hybrid PVC and Rubber blend, High Visibility Yellow with White Stripe
• Swivel: Machined solid brass 90-degree full-flow NPT
• Motor Type: Enclosed lubricated cartridge-style, spring retractable
• Base Material: Steel, one-piece no-weld dual pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255752726

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-450-HV
