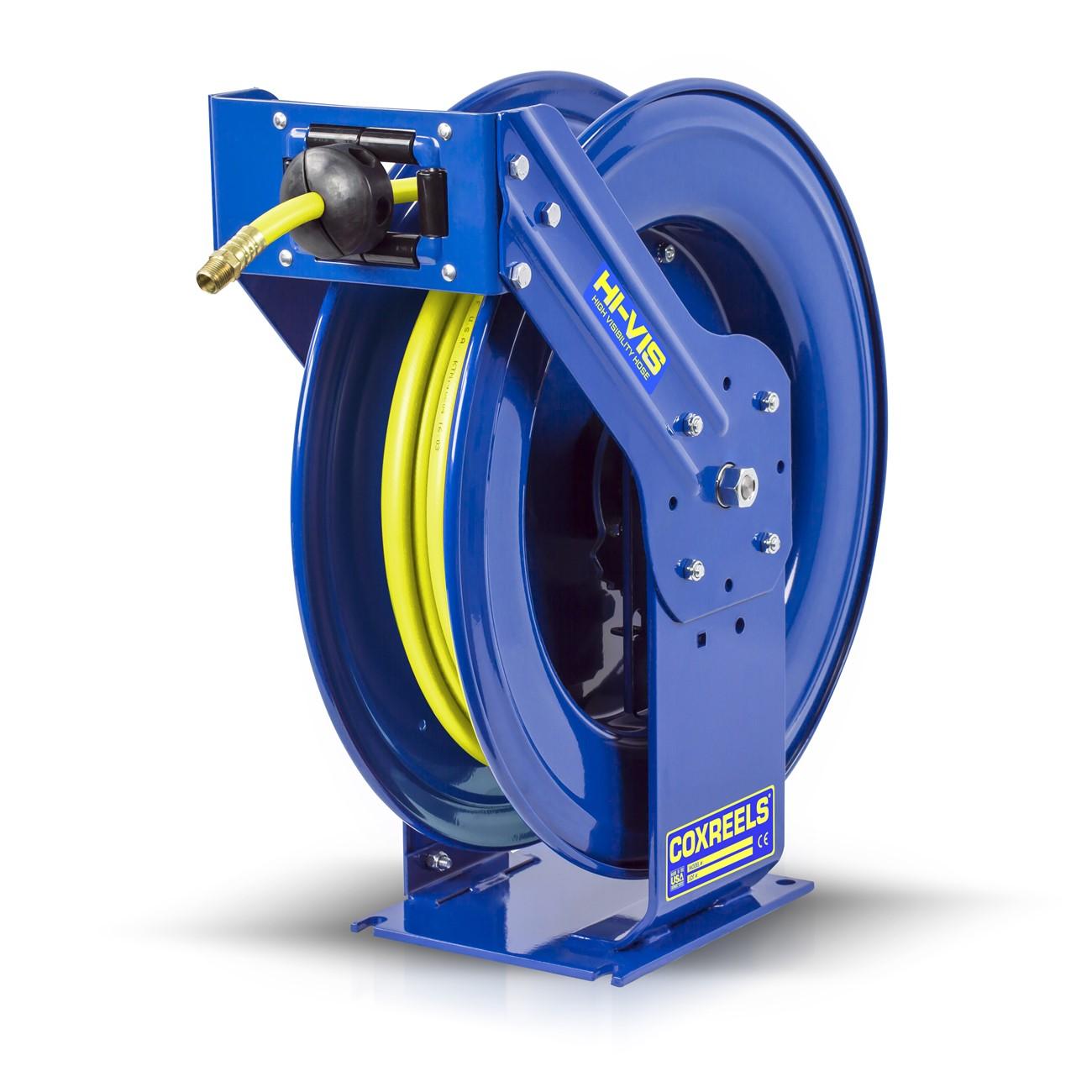

Coxreels TSH-N-4100-HV Safety Hose Reel 1/2 in

Product Description

The COXREELS TSH-N-4100-HV is a high-visibility safety hose reel designed for demanding industrial and trade applications where hose management and operator safety are priorities. The reel features a hybrid bright yellow hose with a white glossy stripe, combining PVC and rubber construction for improved flexibility, kink resistance, and reduced coil memory. The hose lays flat to reduce trip hazard potential. The reel is built on a heavy-duty steel base with CNC robotically spun and ribbed discs and comes ready for wall, floor, ceiling, or vehicle mounting. Maintenance is simplified by a removable cartridge-style motor and a machined brass NPT swivel that allows hose changes without removing the reel from its mount.

The TSH-N-4100-HV is suited for industrial facilities, service shops, and fleet maintenance environments where a retractable hose reel improves workflow and reduces hazards. The high-visibility hose increases situational awareness in busy work areas. The EZ-Coil controlled retraction system provides smooth, managed hose return. The adjustable guide arm allows flexible installation in a range of mounting orientations, making this reel a practical fit for both fixed shop installations and vehicle-mounted service applications.

Key Features

• High-visibility hybrid hose with bright yellow jacket and white stripe for increased safety awareness
• PVC and rubber blend construction delivers flexibility, kink resistance, and reduced coil memory with a non-marring surface
• Machined solid brass 90-degree full-flow NPT swivel allows hose changes without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for easy, safe maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength and hose protection
• Solid one-piece steel dual pedestal base with triple axle hub support and CPC chip-resistant powder coat finish

Compatibility

Designed as an OEM-style retractable hose reel with a 1/2 inch ID hose path, suitable for compressed air, fluid, and similar service lines in industrial and vehicle-mount applications.

Installation Notes

Installation is typically performed by a qualified maintenance technician or journeyman mechanic. Shut off and depressurize the supply line completely before mounting or connecting the reel. Secure the steel base to a structural surface capable of supporting the reel weight and hose load. Verify NPT thread connections are sealed with appropriate thread sealant per shop or facility standards before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Material: Hybrid PVC and rubber blend
• Hose Color: Bright yellow with white stripe
• Base Material: Steel
• Swivel Material: Solid brass
• Swivel Connection: 90-degree full-flow NPT
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 95 pounds
• UPC: 674255752740

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-4100-HV
