Coxreels TSH-N-375-HV Hv Safety Hose Reel 3/8 in

Product Description

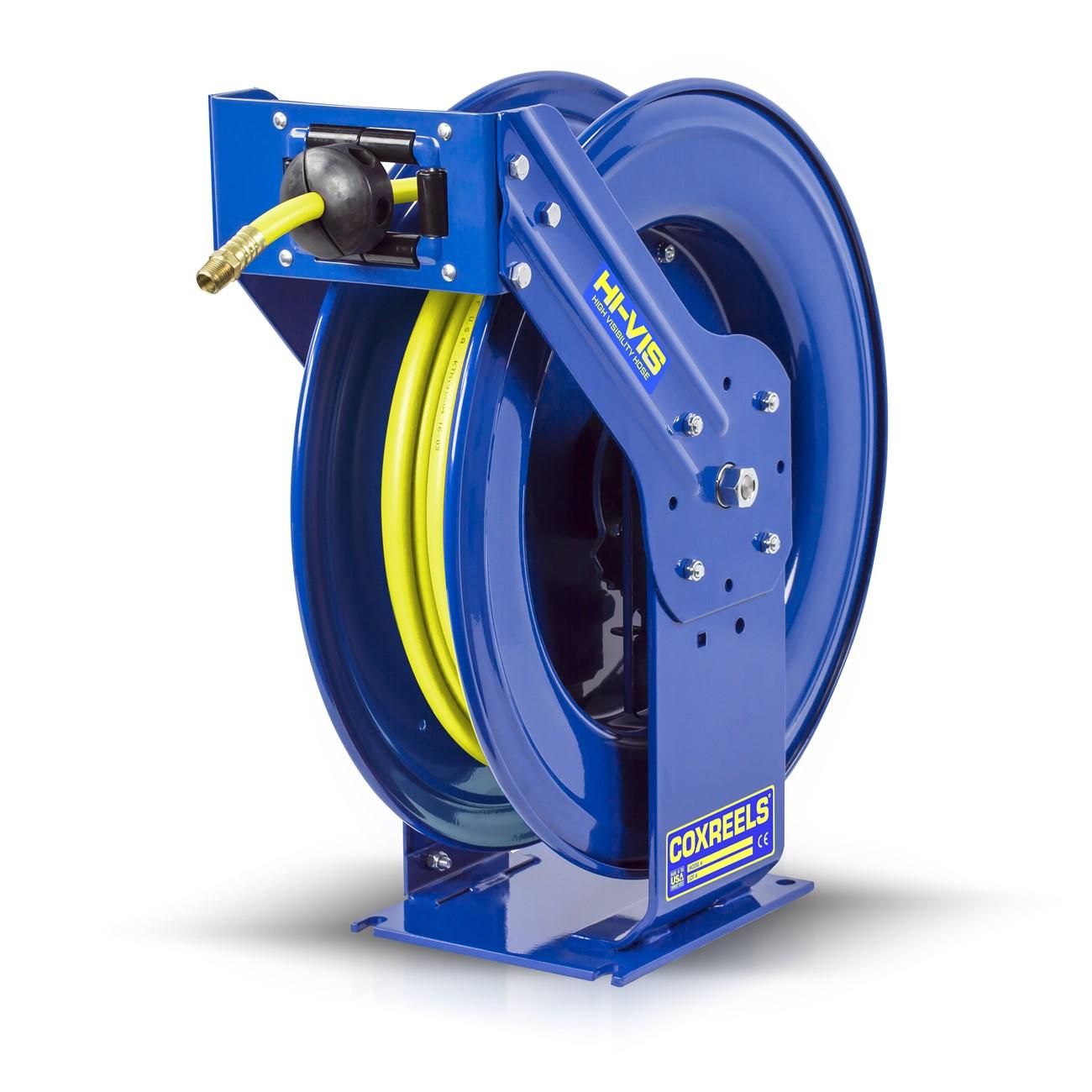

The COXREELS TSH-N-375-HV is a high-visibility safety hose reel built for demanding trade and industrial environments where hose management and worker safety are priorities. The reel ships with a hybrid bright yellow hose with a white glossy stripe, combining PVC and rubber construction for improved flexibility, kink resistance, and reduced coil memory. The hose lays flat to minimize trip hazard potential. The unit features a machined brass 90-degree full-flow NPT swivel, CNC robotically spun and ribbed steel discs with rolled edges, and a sturdy one-piece steel base with dual pedestal support. At 82 pounds, it is a heavy-duty fixed installation suitable for shop, fleet, or facility use. Licensed mechanics, fleet technicians, and industrial maintenance trades are the primary installers.

The TSH-N-375-HV is designed for facilities and service environments that require high-visibility hose management, including automotive shops, fleet maintenance bays, manufacturing floors, and industrial service areas. The 3/8-inch ID hose accommodates common air and fluid delivery applications. The enclosed cartridge-style motor is field-removable for maintenance without taking the reel off its mount. The guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a wide range of install layouts.

Key Features

• High-visibility hybrid hose with bright yellow body and white glossy stripe improves site safety awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe maintenance
• CNC robotically spun ribbed steel discs with rolled edges provide durability and hose protection
• One-piece steel base with dual pedestal design and no-weld construction for maximum stability; includes triple axle hub support
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for 3/8-inch ID hose reel applications in commercial and industrial service environments.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician familiar with hose reel mounting requirements. Shut off all fluid or air supply to the reel before servicing the swivel, motor cartridge, or hose connections. Secure the mounting base to a structurally adequate surface using fasteners rated for the reel weight. Verify hose inlet and outlet fittings match the system thread type and pressure rating before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255752702

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-375-HV
