Coxreels TSH-N-350-HV High Visibility Safety Hose Reel

Product Description

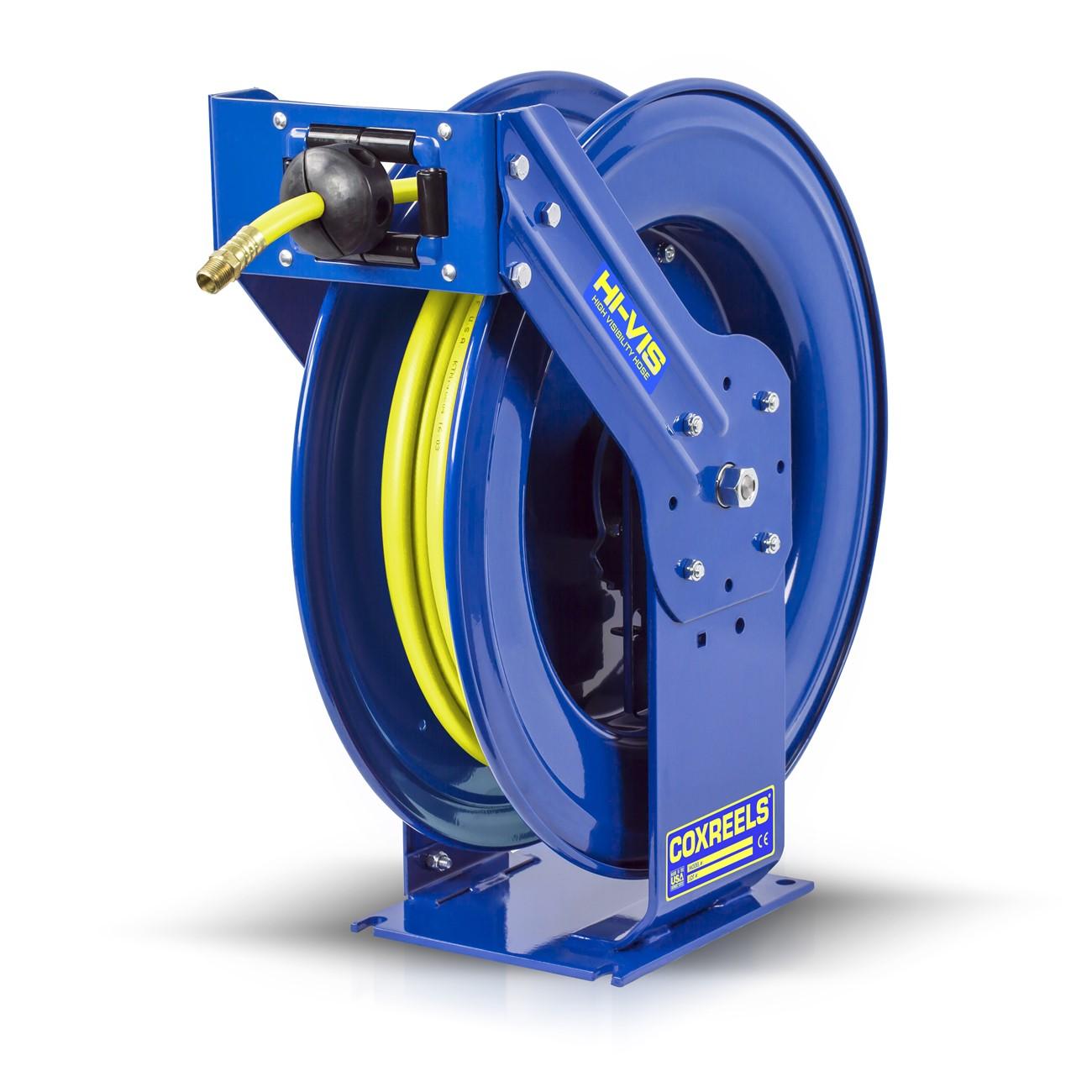

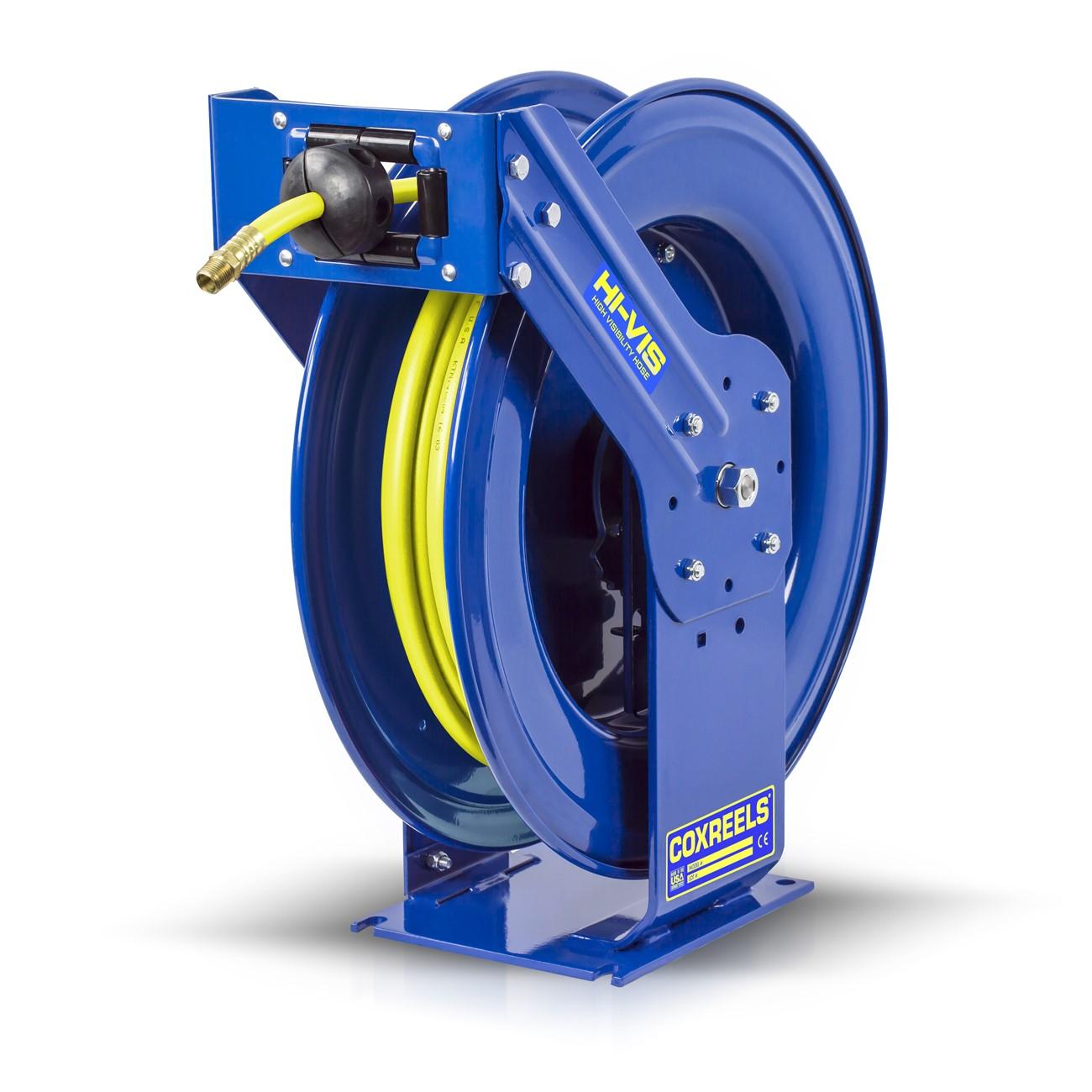

The COXREELS TSH-N-350-HV is a high-visibility safety hose reel designed for industrial and commercial environments where hose awareness and operator safety are critical priorities. Built around a bright yellow hybrid hose with a white glossy stripe, this reel makes hose routing visible to personnel on the floor. The hose accepts a 3/8 inch ID with a 5/8 inch OD profile. The reel features CNC robotically spun and ribbed steel discs, a solid one-piece steel base with dual pedestal support, and a machined solid brass 90-degree full-flow NPT swivel. Licensed technicians and maintenance professionals working in shops, fleet service bays, and industrial facilities are the primary installers.

The TSH-N-350-HV is suited for retractable hose applications in commercial workshops, vehicle service facilities, and industrial plants where overhead, wall, floor, or ceiling mounting configurations are required. The guide arm adjusts to accommodate multiple mounting positions, making it adaptable to tight or unconventional bay layouts. The hybrid hose construction combines PVC and rubber materials to deliver improved flexibility, better low-temperature performance, enhanced kink resistance, and reduced coil memory for a flatter lay that minimizes trip hazard potential.

Key Features

• High-visibility hybrid hose in bright yellow with white glossy stripe for enhanced floor-level awareness
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated and enclosed cartridge-style motor is fully removable for easy maintenance access
• Solid one-piece steel base with dual pedestal design and triple axle support hub — no weld construction
• Adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style retractable safety hose reel for use with 3/8 inch ID hose in industrial, commercial, and fleet service applications.

Installation Notes

Installation should be performed by a qualified mechanic or industrial maintenance technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line completely before mounting or connecting the reel. Secure all mounting hardware to a structurally rated surface appropriate for the reel weight of 61 pounds. Follow applicable facility safety codes and manufacturer torque guidelines for swivel fittings.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Type: Hybrid PVC and Rubber blend, high-visibility bright yellow with white stripe
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Material: Steel, one-piece no-weld dual pedestal
• Swivel: Machined solid brass 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 61 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• UPC: 674255752696

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-350-HV
