Coxreels TSH-N-3100-HV Hv Safety Hose Reel 3/8 in

Product Description

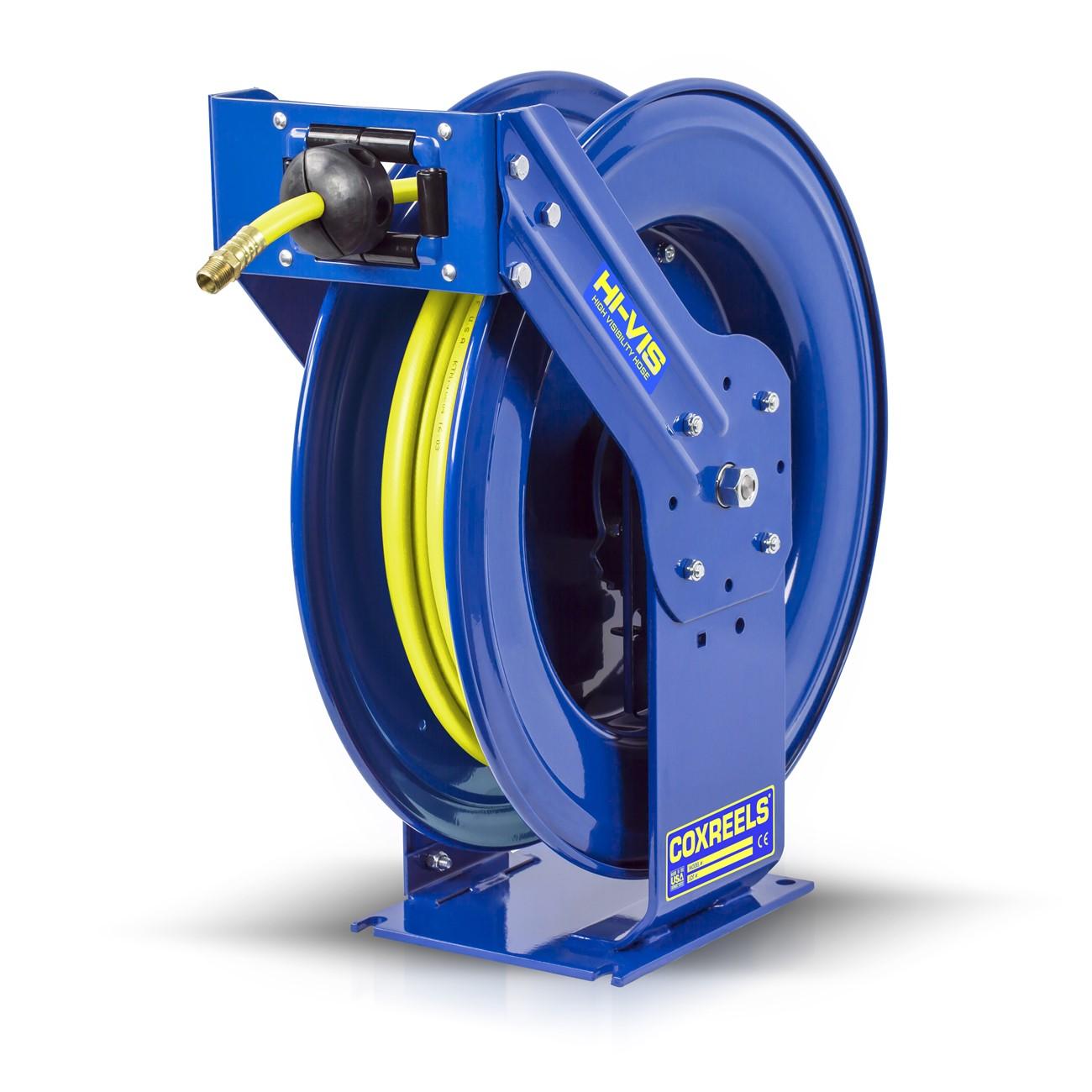

The COXREELS TSH-N-3100-HV is a high-visibility safety hose reel designed for demanding industrial and trade environments where hose location and operator safety are critical. Built around a 3/8 inch ID, 5/8 inch OD hybrid bright yellow hose with a white glossy stripe, this reel makes hose routing easy to spot across busy job sites and service bays. The steel base construction, CNC robotically spun ribbed discs, and a permanently lubricated precision bearing system deliver long-term durability under daily professional use. At 85 pounds, it is a heavy-duty unit intended for permanent or semi-permanent installation by qualified service technicians.

The TSH-N-3100-HV is suited for use in automotive service shops, industrial facilities, fleet maintenance operations, and similar commercial settings where a retractable hose reel improves workflow and reduces trip hazards. The guide arm adjusts to support wall, floor, ceiling, and vehicle mounting positions, making it adaptable to a range of installation layouts. The high-visibility hybrid hose combines PVC and rubber construction for improved flexibility, reduced coil memory, and enhanced kink resistance, which keeps the hose lying flat when not in use.

Key Features

• High-visibility hybrid hose in bright yellow with white stripe for increased job site awareness
• Machined solid brass 90-degree full-flow NPT swivel for easy hose installation without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for added strength and operator safety
• 1/4 inch solid one-piece steel base with dual pedestal design and triple axle support hub — no welds
• Lubricated enclosed cartridge-style motor is removable for field maintenance
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Adjustable solid rubber hose stop and versatile guide arm for multi-position mounting

Compatibility

Designed as an OEM-style retractable safety hose reel for professional installation in industrial, fleet, and commercial service environments requiring 3/8 inch ID hose delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid delivery systems. Shut off and depressurize the supply line fully before mounting or connecting the reel. Secure the steel base to a structurally sound surface rated for the unit weight using appropriate fasteners. Verify all NPT swivel fittings are sealed properly and test for leaks at operating pressure before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Base Material: Steel
• Hose Type: Hybrid PVC and Rubber blend, high-visibility yellow with white stripe
• Swivel Type: Solid brass 90-degree full-flow NPT
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 85 pounds
• UPC: 674255752719

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-3100-HV
