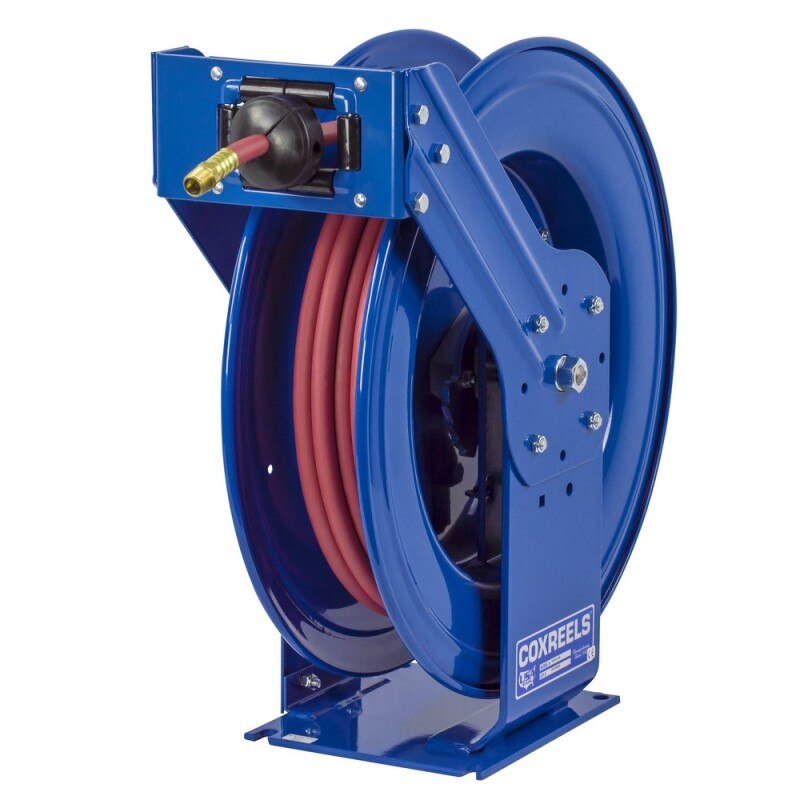

Coxreels TMPL-N-650 Truck Mount Hose Reel 1 in 50 Ft

Product Description

The COXREELS TMPL-N-650 is a spring-driven, truck-mount hose reel built for heavy-duty service in off-road and demanding field environments. Part of the COXREELS T Series line, it accepts hose with a 1 inch inner diameter and 1 3/8 inch outer diameter up to 50 feet in length. The reel is constructed with a steel base and features a dual pedestal chassis with the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under abusive conditions. Licensed HVAC, plumbing, and mechanical service technicians who work from service vehicles rely on this reel for consistent, durable hose management in the field.

The TMPL-N-650 is designed for truck and vehicle-mounted applications where spring-driven automatic retraction is required. It suits residential and commercial service work where technicians deploy hose directly from a vehicle. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service vehicle setups and shop installations. The unit ships as a single reel assembly.

Key Features

• Spring-driven retraction with a lubricated, enclosed cartridge-style motor that is removable for field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Dual pedestal design with a solid one-piece steel base and support post — no weld construction — for maximum stability
• COXREELS Super Hub triple axle support reduces vibration and strengthens structural integrity for off-road use
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings included

Compatibility

Designed as a truck-mount, spring-driven hose reel replacement or new installation for service vehicles requiring a 1 inch ID hose reel with up to 50 feet of hose capacity.

Installation Notes

Installation is typically performed by a qualified service technician familiar with vehicle or shop mounting hardware. Power down or isolate any fluid supply lines before connecting or disconnecting hose assemblies. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and fluid-filled hose. Consult the vehicle manufacturer and applicable safety codes for proper mounting requirements on service vehicles.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 3/8 inches
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 81 pounds
• UPC: 674255738188

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMPL-N-650
