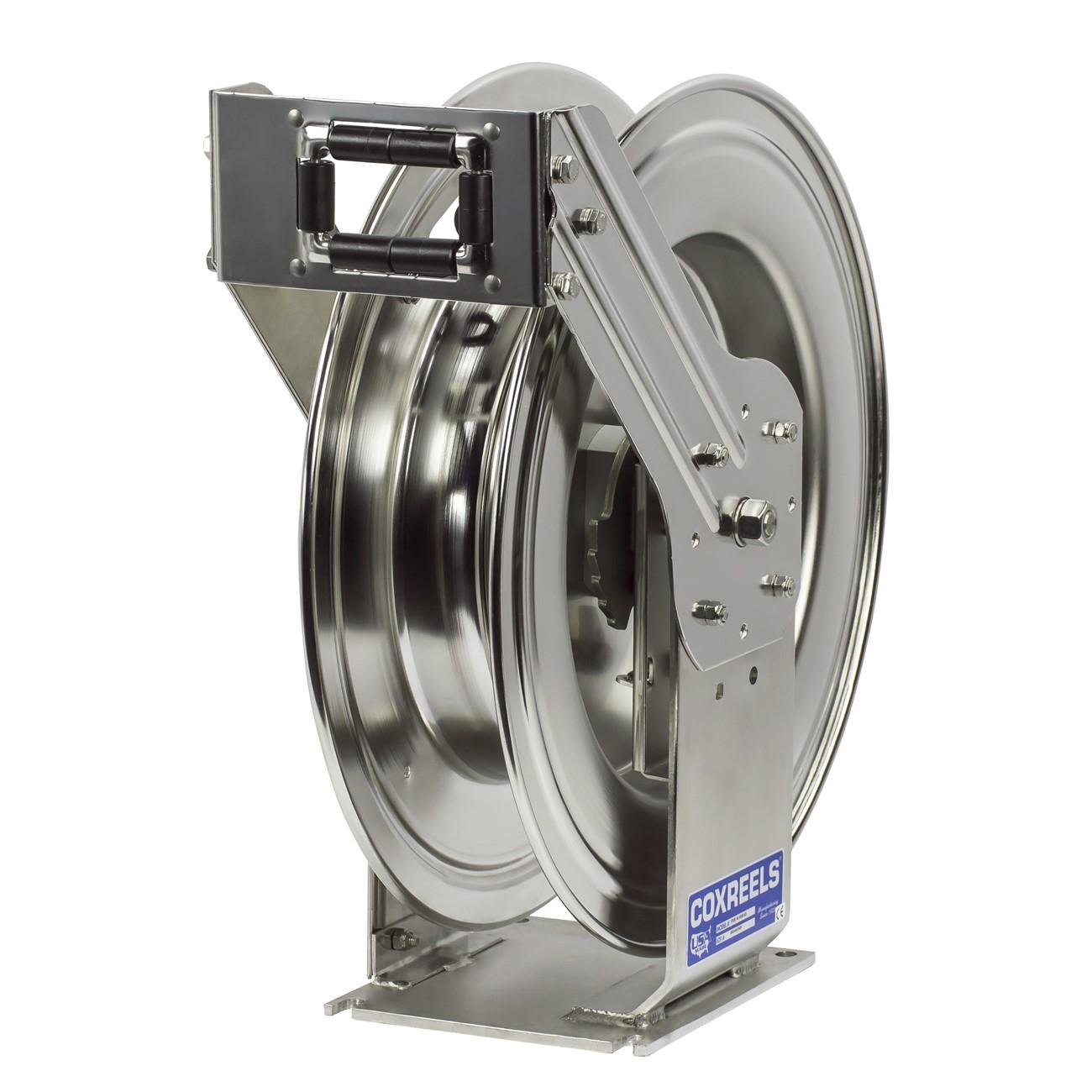

Coxreels TMPL-N-4100-SS Stainless Steel Hose Reel

Product Description

The COXREELS TMPL-N-4100-SS is a spring-driven hose reel built from electro-polished stainless steel with a full stainless steel fluid path. It is part of the COXREELS SS Series, designed for environments where rust, corrosion, and contamination are ongoing concerns. The reel accommodates 1/2 inch ID hose up to 100 feet in length. A 90-degree full-flow NPT stainless steel swivel inlet maintains a non-corrosive external fluid path. Licensed plumbing and mechanical contractors, as well as industrial maintenance technicians, are the primary installers of this reel type.

This hose reel is well suited for food and chemical processing facilities, marinas, wash-down stations, and other commercial or industrial environments where moisture, chemicals, or contaminants would degrade standard steel reels. Its spring-drive retraction and multi-position guide arm make it adaptable to wall, floor, ceiling, and vehicle mounting configurations, covering a broad range of fixed and mobile service setups.

Key Features

• Electro-polished stainless steel construction throughout, including the fluid path, for non-corrosive performance
• 90-degree full-flow NPT stainless steel swivel inlet machined for clean, leak-resistant connection
• Cartridge-style spring motor is electro-polished, self-lubricated, and enclosed for easy removal and safe maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece stainless steel base and support post, no-weld dual pedestal design with triple axle support hub
• Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, and vehicle mounting

Compatibility

Designed for use with 1/2 inch ID hose up to 100 feet in length in commercial and industrial applications requiring stainless steel construction and corrosion-resistant fluid handling.

Installation Notes

Installation should be performed by a qualified plumbing or mechanical technician familiar with hose reel mounting and fluid system connections. Shut off the fluid supply and depressurize the line before connecting or disconnecting the reel. Verify that all NPT fittings are properly sealed with appropriate thread sealant rated for the fluid being handled. Mounting hardware should be selected to match the surface material and load rating required for a reel weighing 80 pounds.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring
• Construction Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Weight: 80 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255746268

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMPL-N-4100-SS
