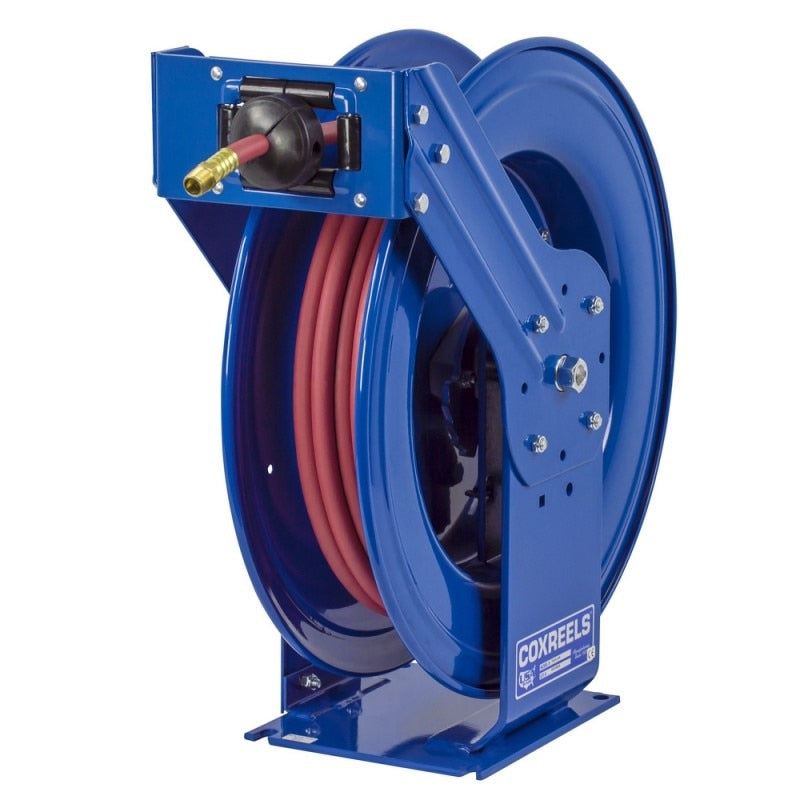

Coxreels TMPL-N-3100 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TMPL-N-3100 is a spring-driven, truck-mount hose reel built for demanding off-road and heavy-duty field service applications. Part of the COXREELS T Series, it accepts 3/8 inch ID hose with an 11/16 inch OD up to 100 feet in length. The extra-large chassis uses a dual pedestal-style arm configuration and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under hard use. A cartridge-style motor and machined brass swivel make field maintenance straightforward without removing the reel from its mount. At 82 pounds, this is a heavy-built unit intended for professional installation in vehicles and service trucks.

The TMPL-N-3100 is designed for mobile service applications where the reel is permanently or semi-permanently mounted to a truck, van, or service vehicle. Typical use cases include fleet maintenance, industrial service, and any off-road field work where consistent hose retraction and structural durability are critical. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting orientations, giving installers flexibility across different vehicle configurations and service body layouts.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Dual pedestal steel base with Super Hub triple axle support reduces vibration and increases structural rigidity for off-road use
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; precision bearings are permanently lubricated

Compatibility

Designed for use with 3/8 inch ID, 11/16 inch OD hose up to 100 feet in length. Intended as a truck-mount spring-driven hose reel for professional mobile service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid transfer equipment. Shut off all fluid supply and depressurize the hose before mounting or servicing the reel. Secure all mounting hardware to a structurally sound surface rated for the combined weight of the reel and filled hose. Consult applicable vehicle modification guidelines and local codes before drilling or welding to a service body.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Maximum Hose Length: 100 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255725003

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMPL-N-3100
