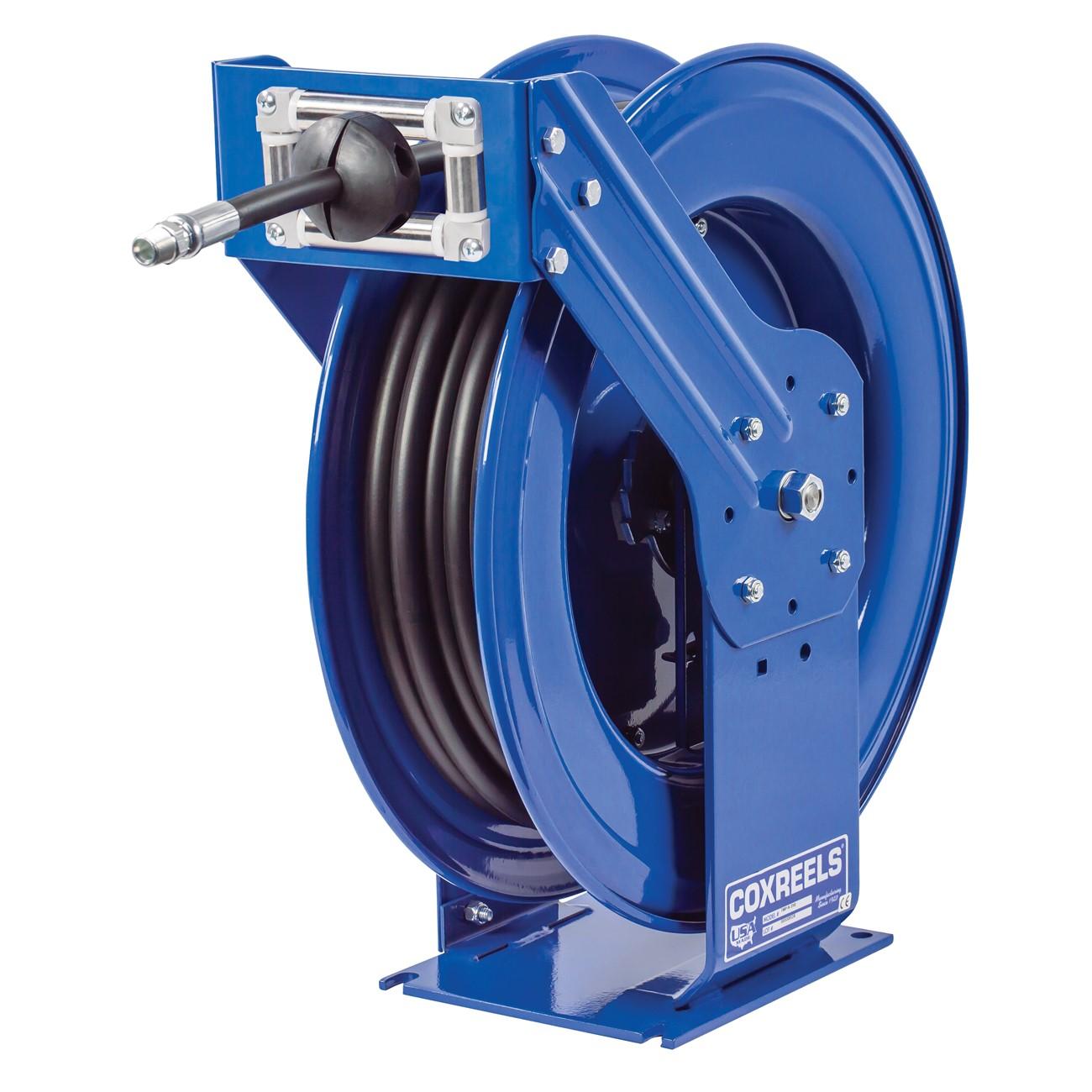

Coxreels TMP-N-575 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TMP-N-575 is a spring-driven, truck-mount hose reel built for demanding field service and off-road applications. Part of the Coxreels T Series, it accepts 3/4-inch ID hose up to 75 feet in length and features a 1-1/16-inch OD drum groove. The reel is constructed from steel and weighs 100 pounds, reflecting the heavy-duty chassis design that sets the T Series apart from standard spring-driven reels. A CNC-robotically spun and ribbed disc assembly with rolled edges provides structural strength while protecting hose integrity under continuous use. Licensed HVAC technicians, plumbers, and fleet service professionals install this reel on service vehicles where reliability in rough terrain is non-negotiable.

The TMP-N-575 is designed for truck and vehicle mounting in residential and commercial service fleet applications. Its multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting positions, making it adaptable across a range of service body configurations. The dual pedestal-style arms and Coxreels Super Hub triple axle support reduce vibration during transit and operation, which is critical for off-road and high-cycle environments such as utility, irrigation, and mechanical service trucks.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is fully lubricated and removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• 1/4-inch steel base with solid one-piece dual pedestal design and no-weld support post for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit spring-driven hose reel for truck-mount and off-road service vehicle installations requiring 3/4-inch ID hose capacity up to 75 feet.

Installation Notes

Installation is typically performed by qualified mechanical or fleet service technicians familiar with vehicle-mount reel systems. Ensure the vehicle power is off and any pressurized lines are fully depressurized before connecting or disconnecting hose fittings. The multi-position guide arm should be secured to the mounting surface using hardware rated for the combined weight of the reel and loaded hose. Consult local codes and vehicle upfitter guidelines for proper mounting torque and securement requirements.

Technical Specifications

• Hose Inside Diameter: 3/4 inches
• Hose Outside Diameter: 1-1/16 inches
• Hose Capacity: 75 feet
• Drive Type: Spring Driven
• Mount Type: Truck Mount
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 100 pounds
• UPC: 674255738157

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-575
