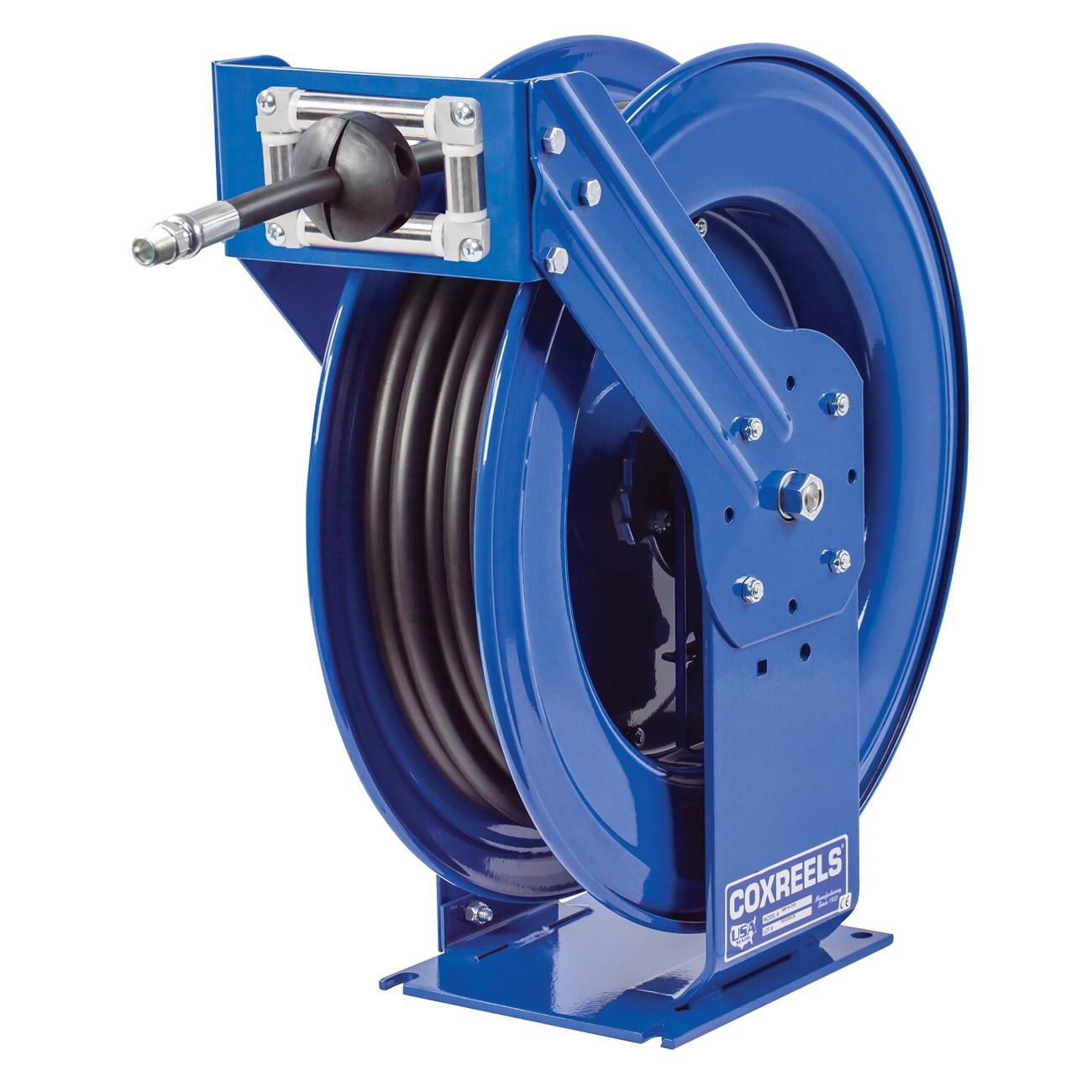

Coxreels TMP-N-535 Truck Mount Hose Reel 3/4 in 35 Ft

Product Description

The COXREELS TMP-N-535 is a spring-driven, truck-mount hose reel built for the demands of off-road and high-abuse service environments. Part of the COXREELS T Series, it features an extra-large steel chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity during operation. The reel accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, with a 35-foot hose capacity. A CPC powder coat finish provides chip resistance and rust inhibition for long service life in field conditions. Licensed HVAC, plumbing, and general mechanical contractors working mobile service rigs are the primary installers.

The TMP-N-535 is suited for vehicle-mounted service applications where reliable hose retraction and durability are critical. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a range of truck and trailer setups. It is designed for off-road and mobile service environments where vibration, shock loads, and exposure to the elements are routine. No specific compatible vehicle or system models were provided by the manufacturer for this listing.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is fully removable for field maintenance
• Triple axle support via the Super Hub system with dual pedestal arms for vibration reduction and structural strength
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as a truck-mount spring-driven hose reel for mobile service rigs and off-road vehicles requiring a 3/4 inch ID hose line up to 35 feet in length.

Installation Notes

Installation is typically performed by a qualified service technician familiar with vehicle-mounted equipment. Depressurize and drain the hose and supply line fully before mounting or servicing the reel. Secure all mounting hardware to a structurally rated surface capable of supporting the reel weight and dynamic hose loads during vehicle operation. Consult applicable local codes and the vehicle manufacturer guidelines before drilling or welding mount points to the vehicle frame.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 88 pounds
• UPC: 674255720688

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-535
