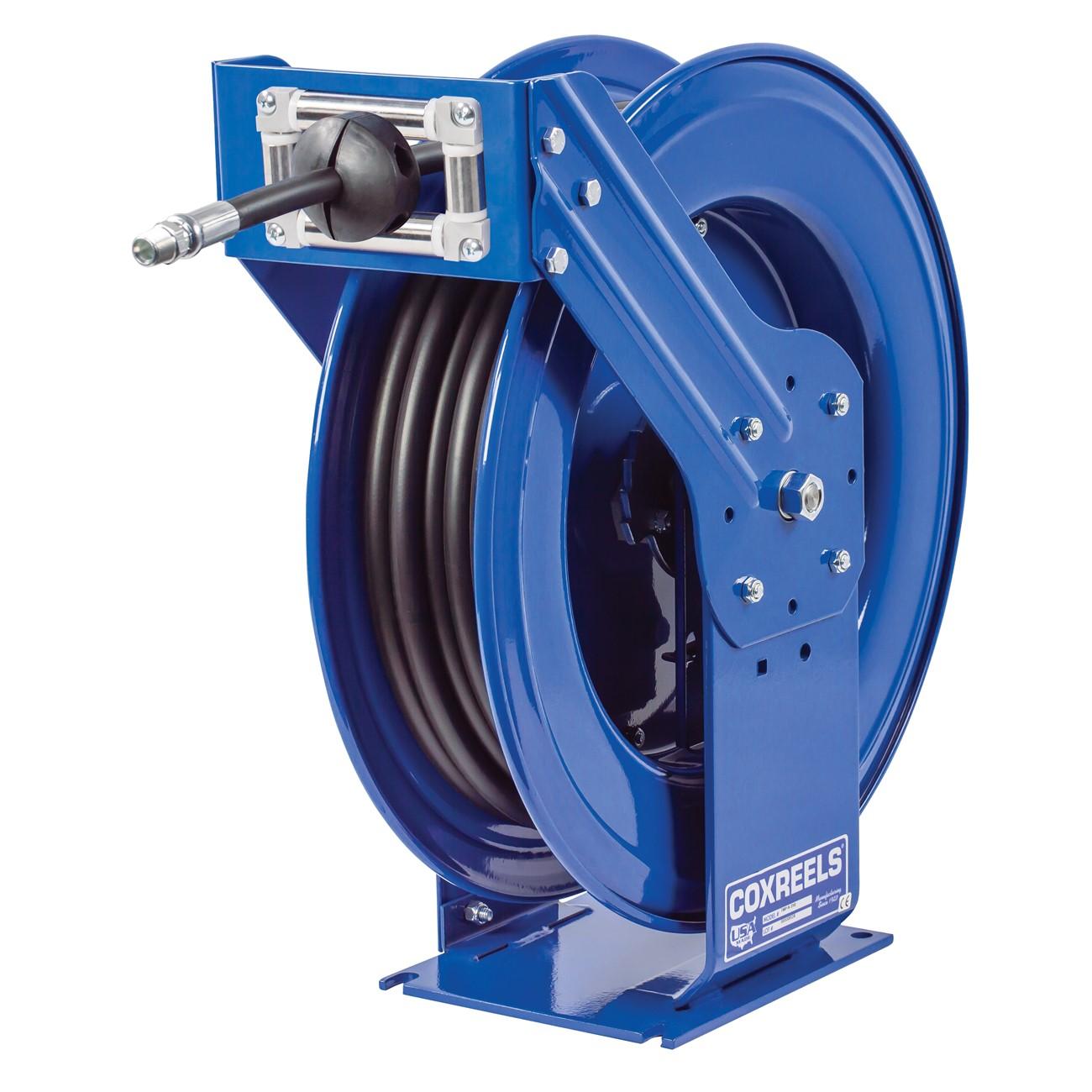

Coxreels TMP-N-525 Truck Mount Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS TMP-N-525 is a spring-driven, truck-mount hose reel built for demanding off-road and field service environments. Part of the Coxreels T Series, it accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, with a 25-foot hose length capacity. The extra-large steel chassis uses a dual pedestal-style arm design and the Coxreels Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under abuse. Licensed HVAC, plumbing, and general service technicians who work from service vehicles will find this reel built to outlast lighter-duty alternatives. The unit weighs 67 pounds and is finished in a chip-resistant CPC powder coat.

The TMP-N-525 is suited for mobile service applications where the reel is mounted directly to a truck bed, van, or utility vehicle. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to varied fleet setups. Its spring-driven retraction keeps hose management fast on job sites where time and safety both matter. Off-road and high-vibration environments are the intended use case, and the reel is engineered specifically to hold up in those conditions without compromising flow or structural reliability.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual pedestal steel base with no-weld one-piece construction and Super Hub triple axle support for maximum stability under vibration
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as a truck-mount replacement or new-install spring-driven hose reel for mobile service vehicles requiring 3/4 inch ID hose management up to 25 feet.

Installation Notes

Installation is typically performed by a qualified service technician familiar with mobile fluid delivery systems. Depressurize and disconnect the hose supply line fully before mounting or servicing the reel. Secure the steel base to the vehicle mounting surface using fasteners rated for the load and vibration demands of the application. Follow all applicable vehicle modification and workplace safety codes when integrating the reel into a service vehicle.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Length Capacity: 25 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 67 pounds
• Material: Steel
• Finish: CPC powder coat
• Swivel Material: Solid brass
• UOM: Each
• UPC: 674255720671

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-525
