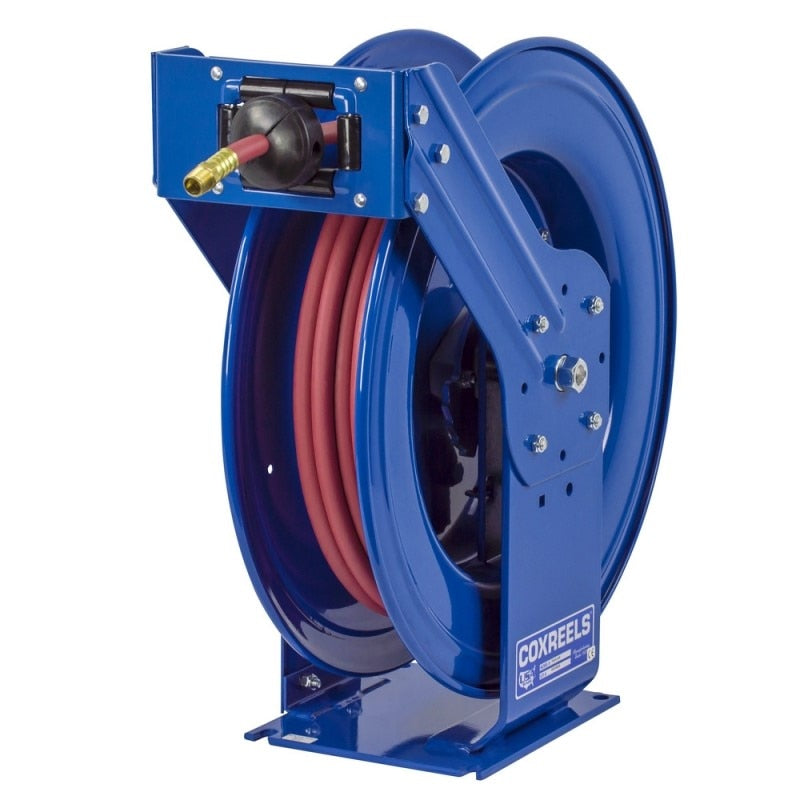

Coxreels TMP-N-375 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TMP-N-375 is a heavy-duty spring driven truck mount hose reel built for demanding off-road and fleet service applications. Part of the COXREELS T Series, it accommodates 3/8 inch ID hose up to 75 feet and features an extra-large steel chassis with dual pedestal-style arms. The enclosed cartridge-style rewind motor and CNC robotically spun disc construction give this reel the structural durability needed in high-vibration environments. It is installed by fleet mechanics, lube technicians, and service vehicle outfitters who require a reliable, permanently mounted hose management solution.

The TMP-N-375 is designed for truck and service vehicle mounting where consistent hose retraction and rugged performance are required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service truck builds and garage setups. The dual pedestal base with triple axle support reduces vibration transfer to the reel body, which is especially important in off-road and rough-terrain service routes. At 99 pounds, this is a permanent installation reel suited to professional shop or mobile service environments.

Key Features

• Spring driven cartridge motor is fully enclosed, lubricated, and removable for field maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges resist deformation and protect hose from abrasion
• Solid one-piece steel base with dual pedestal design and exclusive triple axle Super Hub support reduces vibration and maximizes stability
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle in multiple orientations
• CPC powder coat finish provides chip resistance and rust inhibition for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-fit spring driven hose reel for service trucks and professional fleet maintenance vehicles requiring 3/8 inch ID hose up to 75 feet.

Installation Notes

Installation is typically performed by fleet mechanics or service equipment installers. Power down or depressurize the hose circuit before connecting or disconnecting the swivel and supply inlet. Mount the steel base to a structurally rated surface using fasteners appropriate for the load rating of the installation point. Follow all applicable OSHA and vehicle upfitting guidelines when mounting to a service vehicle chassis.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 99 pounds
• UPC: 674255720633

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-375
