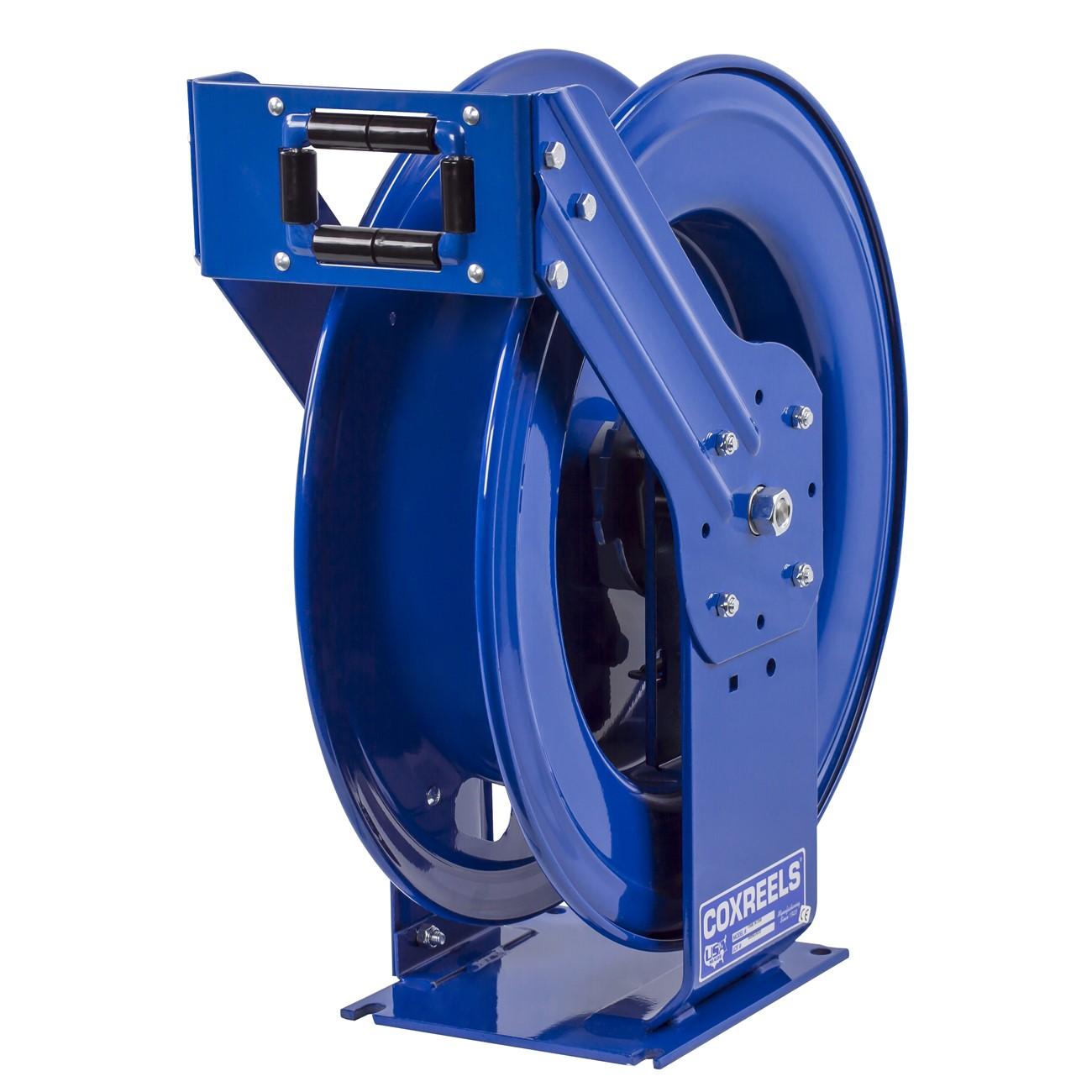

Coxreels TDMPL-N-450 Dual Hydraulic Hose Reel 50 Ft

Product Description

The COXREELS TDMPL-N-450 is a spring-driven dual hydraulic hose reel engineered for demanding hydraulic service applications. Rated to 3,000 psi and designed to handle up to 50 feet of hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, this reel provides reliable, controlled retraction in environments where consistent hose management is critical. It belongs to the TDMP Series, which has been specifically redesigned to accommodate dual hydraulic circuits. The reel is built on a solid one-piece steel base using a dual pedestal design, and features heavy-duty CNC robotically spun and ribbed discs with rolled edges for long-term durability and operator safety. Installation and servicing are handled by licensed hydraulic technicians and fleet maintenance professionals.

The TDMPL-N-450 is suited for industrial, commercial, and fleet service applications where dual hydraulic hose management is required. Typical installations include service trucks, hydraulic equipment bays, and fixed mounting positions on walls, floors, ceilings, or vehicles. The multi-position guide arm supports versatile mounting configurations to match a wide range of shop and field setups. One-side supply and return hookup simplifies plumbing during installation. This reel is sold individually and is appropriate for facilities requiring a compact, spring-retractable dual hydraulic reel at the 50-foot range.

Key Features

• Spring-driven retraction rated to 3,000 psi for automatic hose retrieval
• External fluid path with dual port melanized 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with dual pedestal design and no-weld construction for maximum stability, including Coxreels exclusive super hub triple axle support
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed for use with dual hydraulic hose assemblies having a 1/2 inch inner diameter and 13/16 inch outer diameter, up to 50 feet in length, in systems operating up to 3,000 psi. Part of the COXREELS TDMP Series of dual hydraulic hose reels.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed mechanic familiar with high-pressure hydraulic systems. Relieve all system pressure and depressurize hydraulic lines completely before connecting or disconnecting the reel. Secure the reel to a structurally sound mounting surface using hardware appropriate for the load and mounting orientation. Verify all NPT swivel connections for leaks before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length Capacity: 50 feet
• Maximum Working Pressure: 3,000 psi
• Retraction Type: Spring driven
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 78 pounds
• UPC: 674255722934

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TDMPL-N-450
