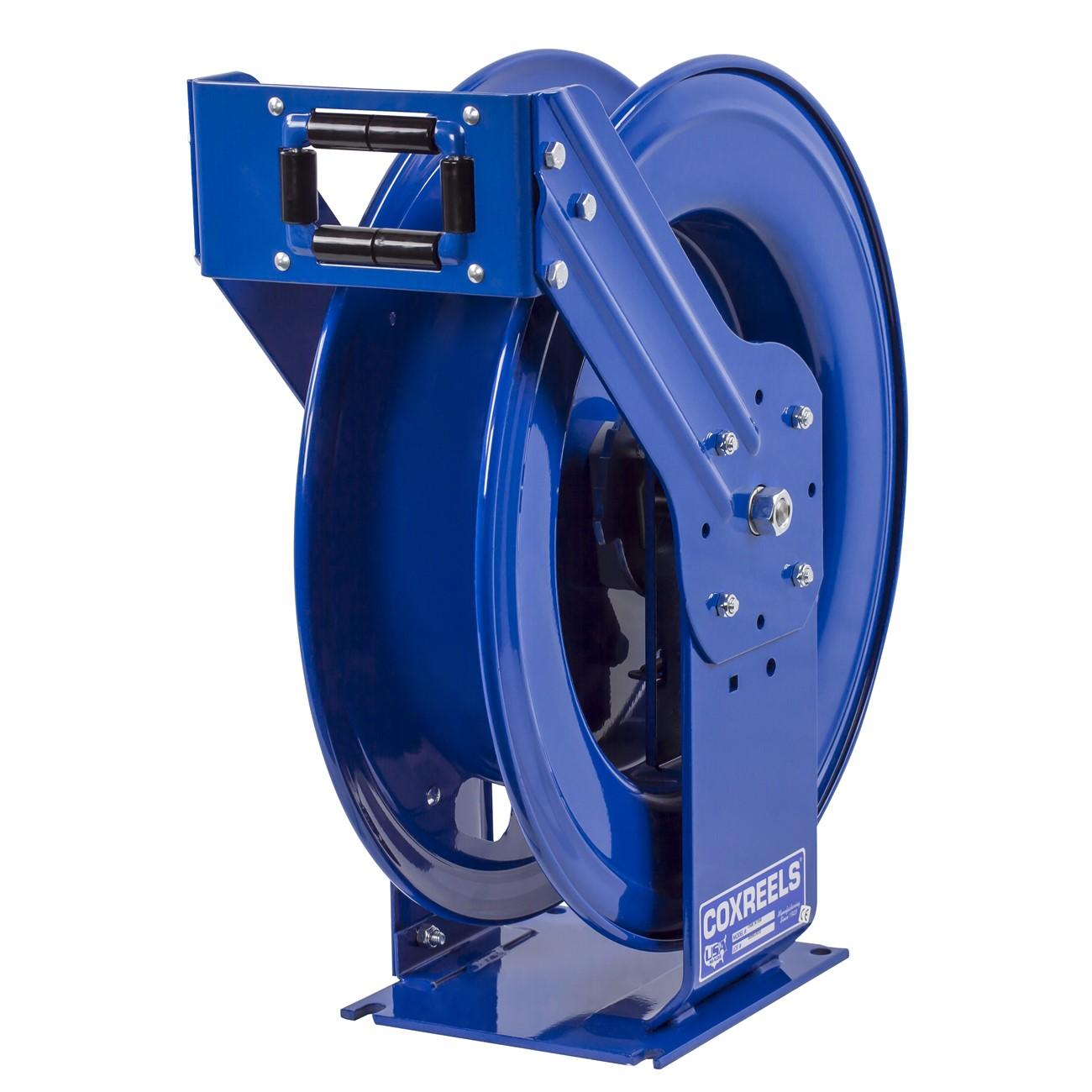

Coxreels TDMPL-N-350 Dual Hydraulic Hose Reel

Product Description

The COXREELS TDMPL-N-350 is a spring-driven dual hydraulic hose reel from the TDMP Series, rated for 3,000 PSI service and designed to handle up to 50 feet of 3/8 inch ID hose. Built for demanding hydraulic applications, it features heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection. The reel uses an external fluid path dual-port melanized full-flow NPT swivel, allowing seal maintenance and hose installation without removing the reel from its mount. This unit is intended for installation by hydraulic equipment technicians and fluid power professionals in industrial, mobile, and fleet service environments.

The TDMPL-N-350 is suited for dual hydraulic supply and return line management in both stationary and vehicle-mounted applications. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service setups. The one-side supply and return hookup simplifies plumbing on installation. This reel is commonly found in heavy equipment shops, utility fleets, and industrial maintenance facilities where reliable high-pressure hose management is required daily.

Key Features

• Spring-driven retraction rated to 3,000 PSI for up to 50 feet of 3/8 inch ID hose
• External fluid path dual-port melanized 90-degree full-flow NPT swivel for easy seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, durability, and operator safety
• Solid one-piece steel base with dual pedestal design and Coxreels exclusive triple axle hub support, no-weld construction
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS TDMP Series for dual hydraulic hose reel applications at 3,000 PSI spring-retract configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power professional. Depressurize and bleed the hydraulic system completely before connecting or disconnecting any hose or fitting. Verify that all supply and return line connections meet the pressure rating of the reel and comply with applicable equipment manufacturer guidelines. Secure the mounting base to a structurally sound surface capable of supporting the reel weight and dynamic line loads.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 50 feet
• Maximum Working Pressure: 3,000 psi
• Retraction Type: Spring driven
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 79 pounds
• UPC: 674255722927

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TDMPL-N-350
