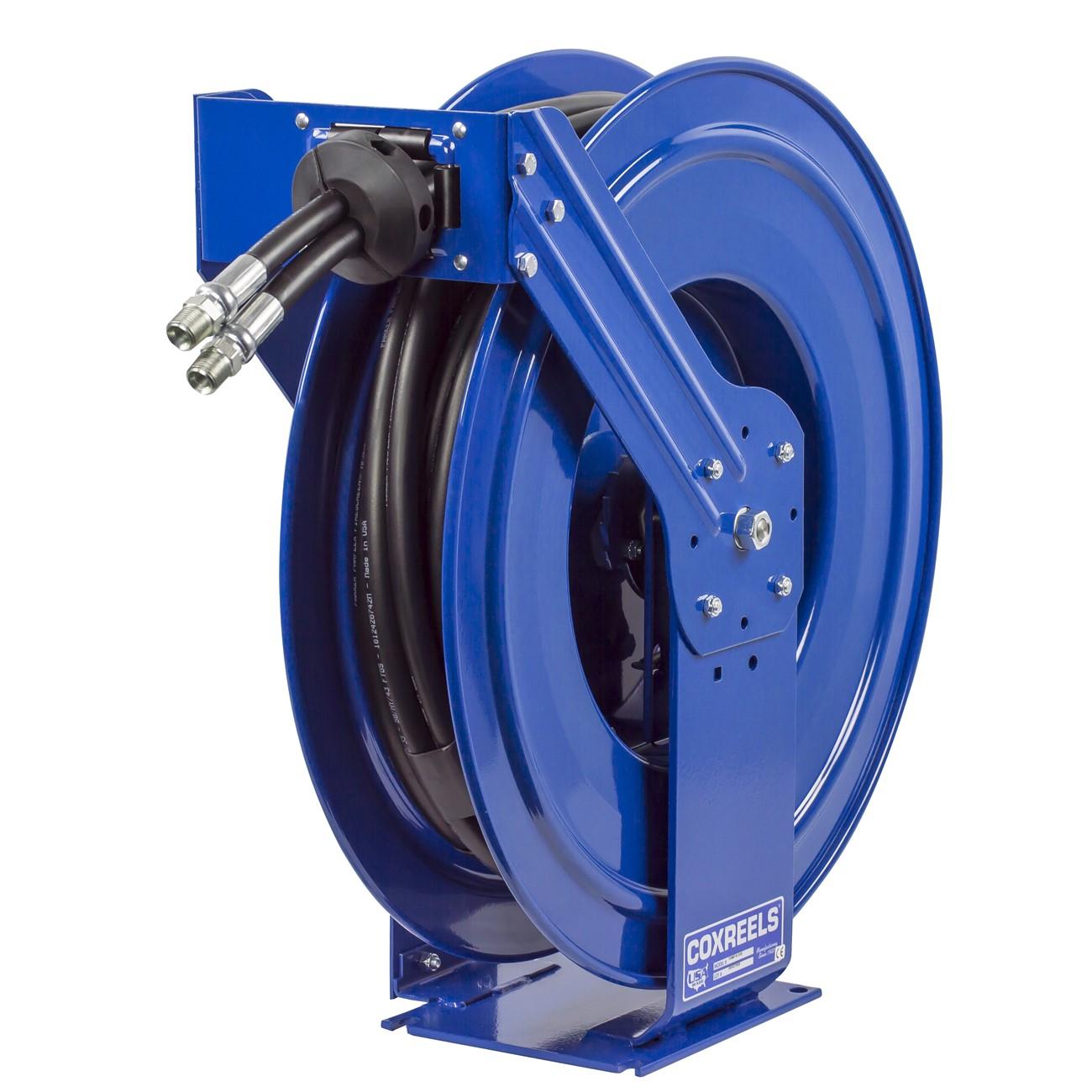

Coxreels TDMP-N-450 Dual Hydraulic Hose Reel 50 Ft

Product Description

The COXREELS TDMP-N-450 is a spring-driven dual hydraulic hose reel designed for demanding fluid-transfer applications. It accepts 1/2 inch ID hose up to 50 feet in length and operates at pressures up to 3,000 psi. The reel features a CNC robotically spun and ribbed disc design with rolled edges for structural rigidity and hose protection. A dual-port melanized 90-degree full-flow NPT swivel keeps the fluid path external, making seal maintenance and hose installation straightforward without removing the reel from its mount. This unit is built for professional installation by hydraulic service technicians in industrial, fleet, or shop environments.

The TDMP-N-450 suits dual hydraulic circuit applications where both supply and return lines must be routed through a single reel assembly. The one-side supply and return hookup simplifies plumbing in tight spaces. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to service trucks, lube bays, and fixed shop installations. Spring-driven automatic retraction keeps hose management fast and reduces wear from dragging. The solid one-piece steel base with dual pedestal support and Coxreels exclusive triple axle hub provides stable operation under repeated daily use.

Key Features

• Spring-driven retraction rated to 3,000 psi for dual hydraulic service up to 50 feet
• External fluid path with dual-port melanized 90-degree full-flow NPT swivel for easy seal access without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece 1/4 inch steel base with dual pedestal and triple axle hub support, no-weld construction
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and corrosion inhibition; permanently lubricated precision bearings; adjustable solid rubber hose stop

Compatibility

Designed for dual hydraulic hose applications accepting 1/2 inch ID hose. Part of the COXREELS TDMP Series dual hydraulic reel line, which also includes MPD and 1275HP Series models for higher-pressure or motorized configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit completely before connecting or disconnecting hose assemblies. Verify that all NPT fittings are properly threaded and sealed before returning the system to service. Mounting hardware must be rated for the combined weight of the reel, hose, and fluid load; consult applicable facility or vehicle mounting standards before installation.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length Capacity: 50 feet
• Maximum Working Pressure: 3,000 psi
• Retraction Type: Spring driven
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 106 pounds
• Finish: CPC powder coat
• Base Material: Steel
• UOM: Each
• UPC: 674255722910

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TDMP-N-450
