Coxreels SR19-L450 Spring Hose Reel 1/2 in Id 50 Ft

Product Description

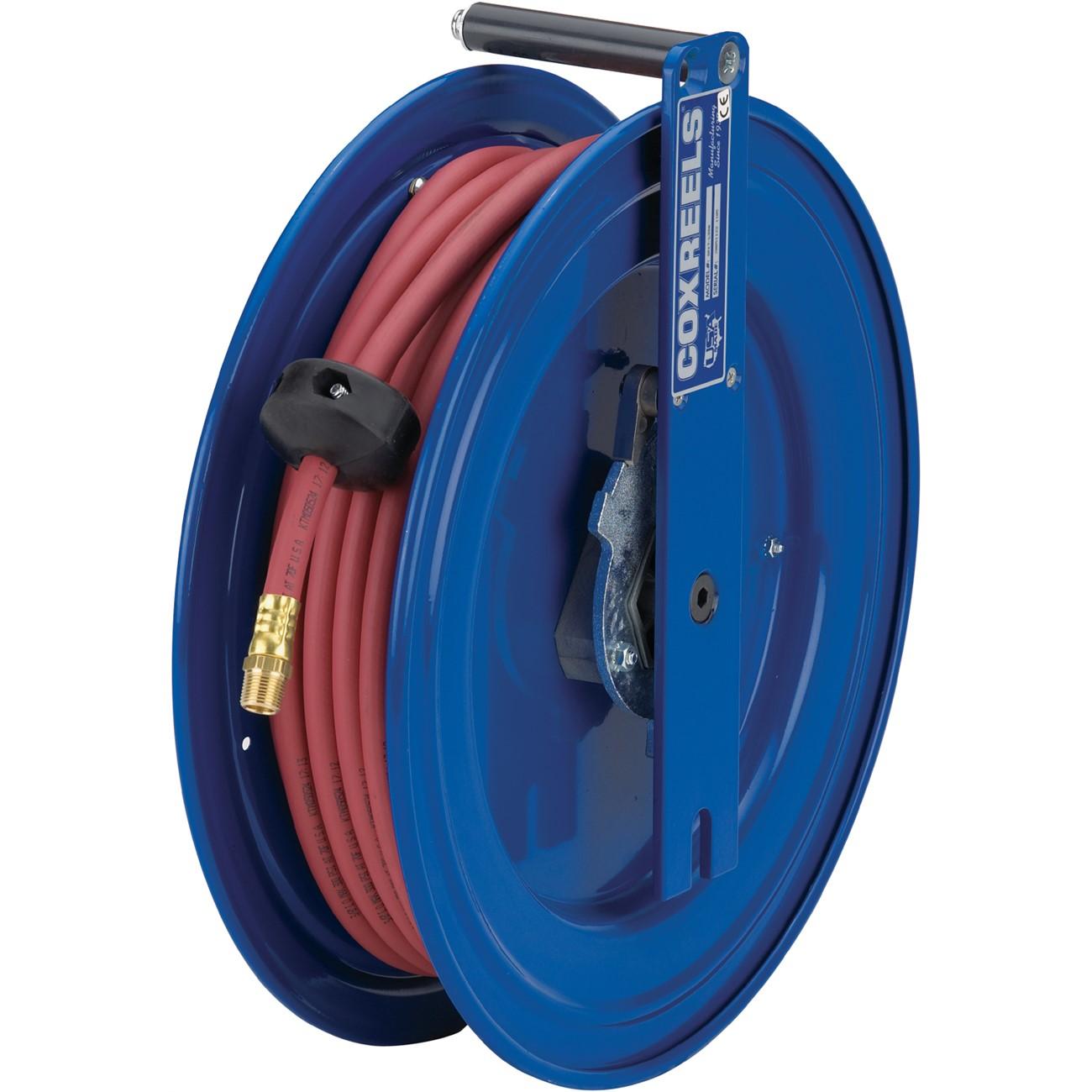

The COXREELS SR19-L450 is a spring-driven hose reel from the S Series line, engineered for side mount and cabinet mount installations in demanding trade environments. This reel accepts hose with a 1/2 inch ID and 3/4 inch OD, with a 50 ft hose capacity, and uses a cartridge-style spring motor for automatic retraction. The unit weighs 37 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall. A CPC powder coat finish resists chips and rust for long service life. HVAC technicians, mechanics, and fleet service professionals rely on this reel to manage air, water, oil, and grease lines at fixed or mobile workstations.

The SR19-L450 is built for a wide range of trade applications including service units, tool benches, tool boxes, vehicle lift systems, machine tools, and service vehicles. Its 360-degree hose direction lets operators feed hose in any direction the job requires. The two-bolt mounting pattern supports both temporary and permanent installation on vertical flat surfaces, cabinet interiors, beams, and enclosed spaces. S Series reels are rated for air/water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without tools
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Two-bolt side mount pattern supports quick installation and detachment for multi-workstation use
• Hose control bar prevents hose from slipping off the disc during operation
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications; compatible with hose having 1/2 inch ID and 3/4 inch OD in lengths up to 50 ft.

Installation Notes

Installation is performed by qualified service technicians or mechanics using standard hand tools. Depressurize and disconnect the hose line from the fluid or air source before mounting or servicing the reel. Secure the unit to a structurally sound vertical surface using the two-bolt pattern and verify fastener engagement before returning the line to service. Follow applicable OSHA and facility safety guidelines when working with pressurized hose systems.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 ft
• Drive Type: Spring driven
• Mount Style: Side mount
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 37 pounds
• Finish: CPC powder coat
• Swivel Material: Solid brass
• UPC: 674255735507

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR19-L450
