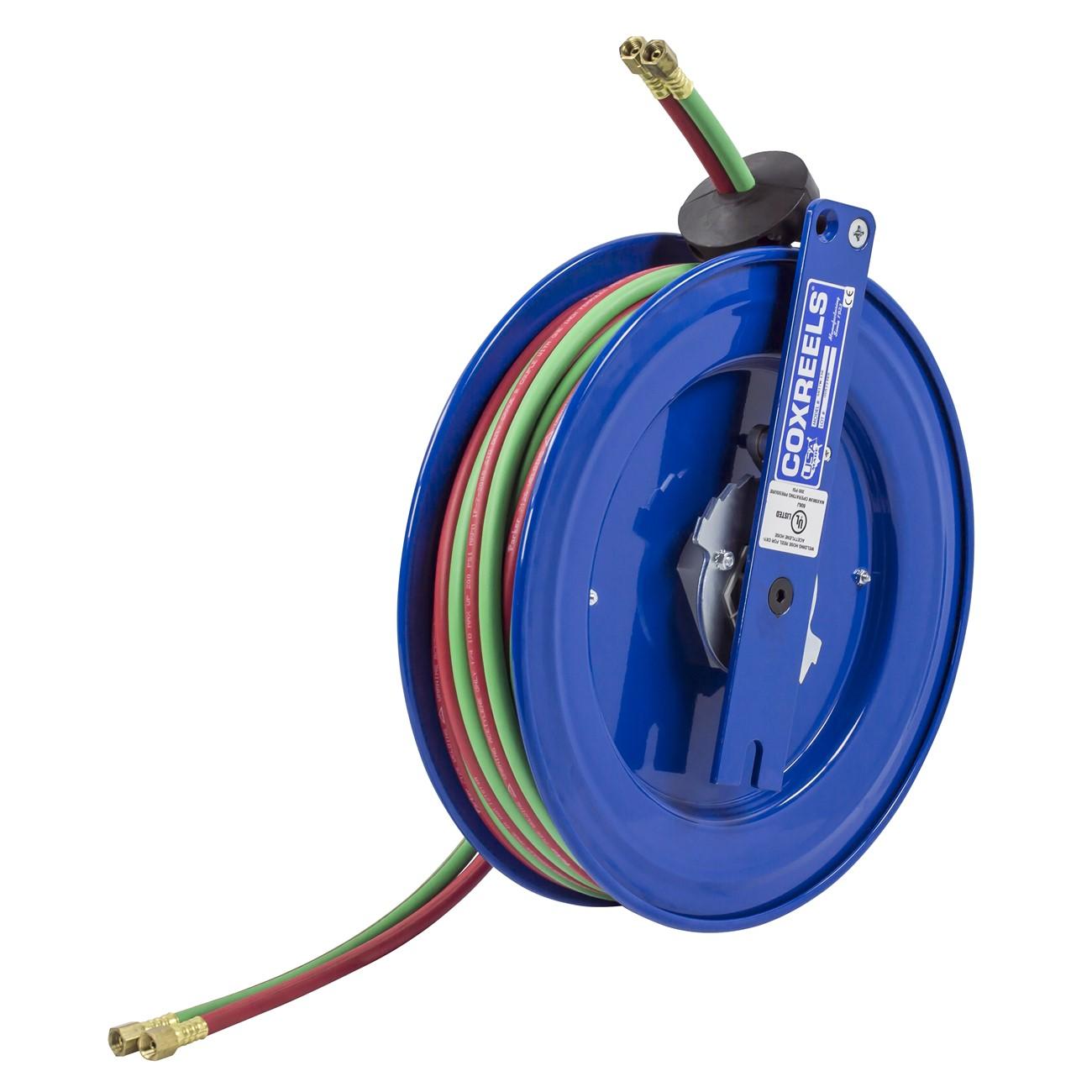

Coxreels SR17WT-150 Welding Gas Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS SR17WT-150 is a spring-driven welding gas hose reel designed for side-mount installations in confined spaces, cabinets, and enclosed service areas. Part of the COXREELS S Series, it accepts T-grade welding hose at 1/4 inch ID over a 50-foot length and returns hose automatically via a cartridge-style spring motor. The unit is constructed with CNC robotically spun steel discs and finished in a chip-resistant, rust-inhibiting CPC powder coat. At 38 pounds, this is a compact but heavy-duty reel suited for stationary and mobile service applications. Licensed welding technicians and service professionals are the primary installers.

The SR17WT-150 is built for applications where space is limited and hose management must stay organized. Typical deployment locations include service vehicles, tool benches, tool boxes, vertical walls, beams, vehicle lift systems, and machine tool stations. The side-mount two-bolt pattern allows fast installation and detachment, making it practical for multi-workstation setups. The 360-degree hose direction gives the operator full range of motion without repositioning the reel.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no need to dismount the reel
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports vertical flat surfaces, cabinet interiors, and enclosed spaces — mounts and detaches quickly
• Hose control bar prevents hose from slipping off the disc during operation
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with T-grade welding gas hose in oxy-acetylene and similar welding gas service applications. Consult COXREELS documentation to confirm fitment with specific hose assemblies or ancillary components.

Installation Notes

Installation is typically performed by licensed welding or mechanical service technicians. Before mounting or servicing, shut off all gas supply valves and depressurize the hose assembly completely. Use the two-bolt mounting pattern on a flat, rigid vertical surface rated to support the reel weight plus hose load. Follow applicable local codes and OSHA regulations governing compressed gas hose handling and storage.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Material: Steel (CNC spun, ribbed)
• Finish: CPC powder coat
• Mount Style: Side mount, 2-bolt pattern
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds
• UPC: 674255736412

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17WT-150
