Coxreels SR17L-H325 Spring Driven Hose Reel 25 Ft Steel

Product Description

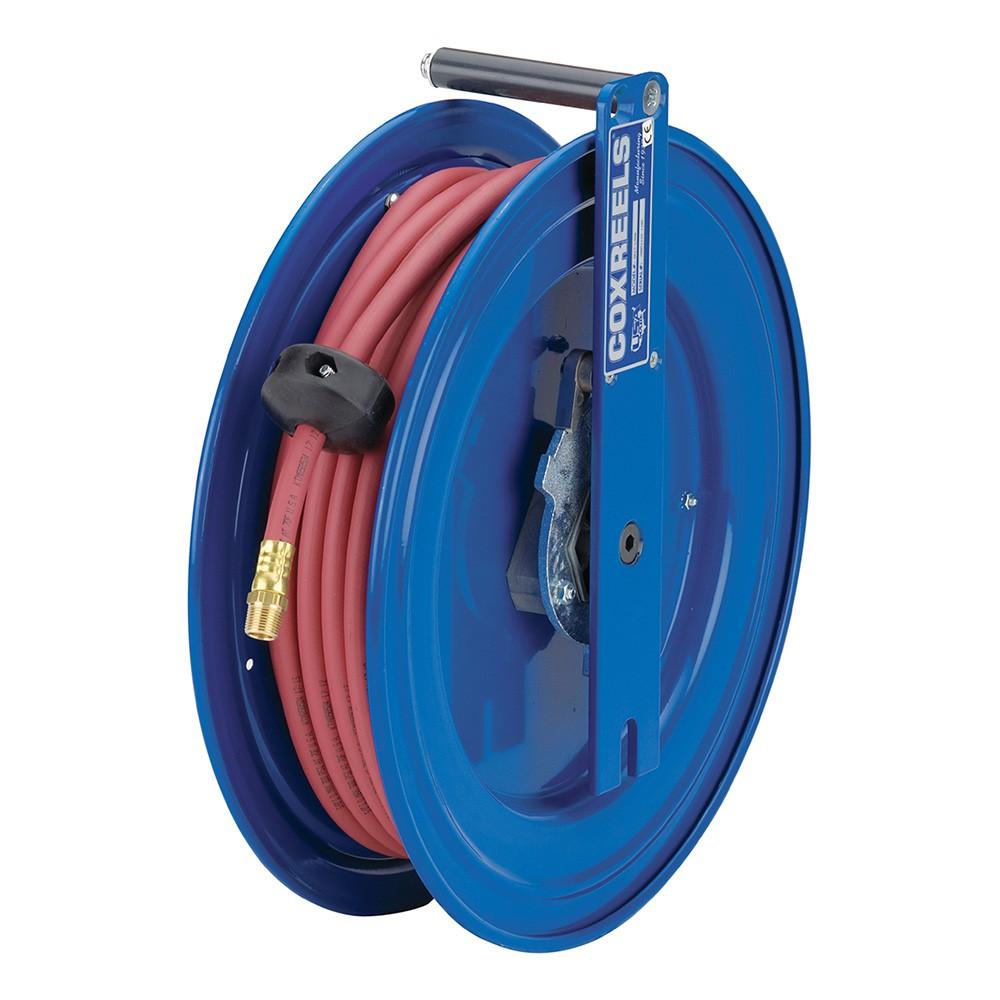

The COXREELS SR17L-H325 is a spring-driven, side-mount hose reel from the S Series lineup, built for cabinet, enclosed-space, and flat vertical surface installations. The reel accepts 3/8-inch ID, 5/8-inch OD hose up to 25 feet and returns it automatically via an enclosed cartridge-style spring motor. The steel disc construction uses CNC robotically spun and ribbed discs with rolled edges for strength and hose protection. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. This unit is suited for professional installation by service technicians, fleet mechanics, and shop maintenance personnel.

The SR17L-H325 is designed for side-mount applications where space is limited or a compact footprint is required. Typical installations include service vehicles, tool benches, tool boxes, machine tools, vehicle lift systems, and any flat vertical surface or cabinet enclosure. The two-bolt mounting pattern allows the reel to be mounted permanently or detached quickly for use across multiple workstations. The 360-degree hose direction gives the operator full range of motion regardless of work position. This S Series reel is compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications.

Key Features

• Enclosed cartridge-style spring motor is removable for maintenance without disturbing the mount
• Machined brass 90-degree full-flow NPT swivel supports hose installation and seal service in place
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• Two-bolt side-mount pattern supports permanent or temporary installation on vertical flat surfaces and cabinets
• Hose control bar prevents hose from slipping off the disc during retraction
• CPC powder coat finish resists chips and rust for long service life in shop and vehicle environments
• Permanently lubricated precision bearings require no routine greasing

Compatibility

Designed for use with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose in 3/8-inch ID configurations up to 25 feet. Suitable for cabinet mount, side mount, and enclosed vertical surface installations across service unit, vehicle, and shop workstation applications.

Installation Notes

Installation is typically performed by a qualified service technician or industrial mechanic. Shut off and bleed all air, fluid, or gas pressure from the connected line before mounting or servicing the reel. The two-bolt pattern requires a secure flat vertical surface capable of supporting the reel weight and hose load. Verify NPT thread compatibility at the swivel connection before pressurizing the system.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 5/8 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Type: 90-degree full-flow NPT brass swivel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 31 pounds
• Material: Steel
• Finish: CPC powder coat
• UPC: 674255734944

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17L-H325
