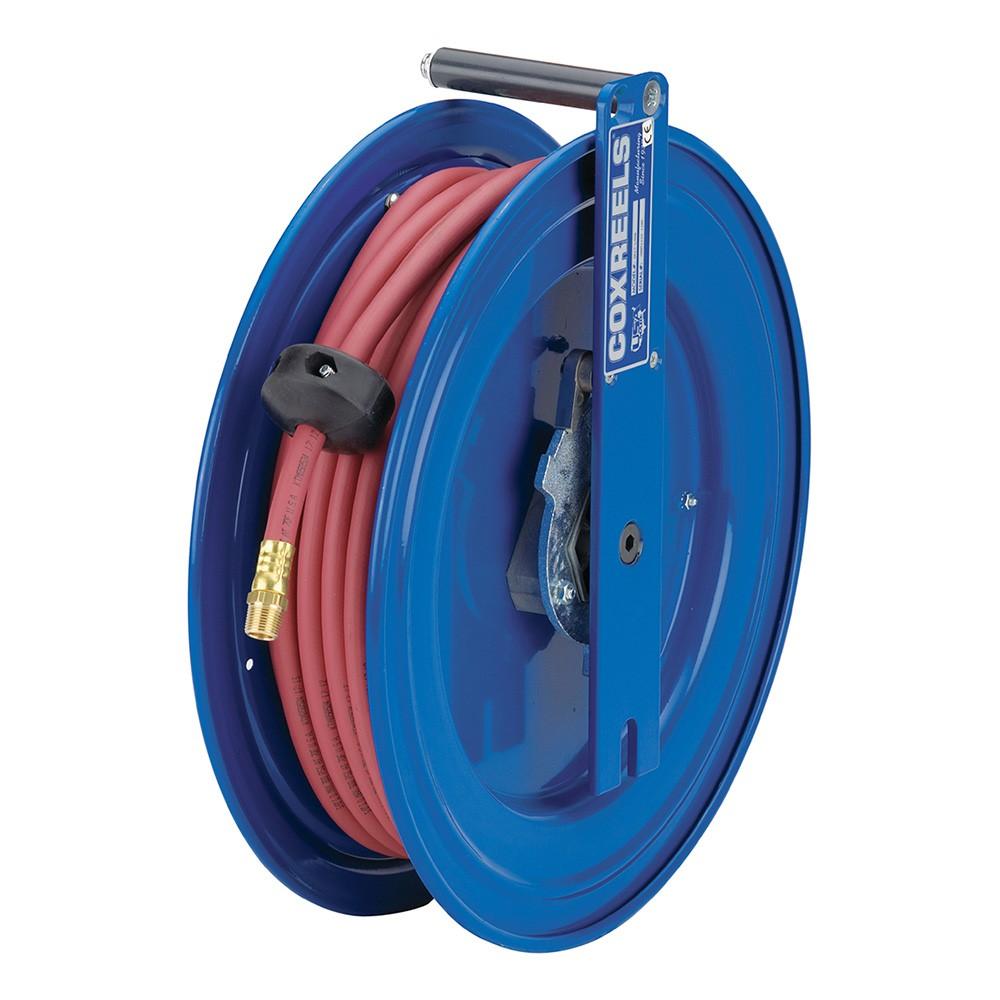

Coxreels SR17-M325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS SR17-M325 is a spring-driven hose reel from the S Series line, engineered for side-mount and cabinet-mount installations in demanding trade environments. Designed for use with air, water, oil, grease, and compatible gas welding hose, it accepts 3/8 inch ID hose up to 25 feet in length. The reel features a cartridge-style spring motor, a machined brass 90-degree full-flow NPT swivel, and CNC robotically spun ribbed discs with rolled edges. A 360-degree hose outlet direction allows operation in any orientation. Licensed HVAC, plumbing, and mechanical service technicians will find this reel well suited to fixed and mobile service applications alike.

The SR17-M325 is built for service units, tool benches, tool boxes, vehicle lift systems, machine tools, and service vehicles. Its compact footprint and two-bolt mounting pattern allow fast installation and removal, making it practical for multi-workstation setups or temporary deployment on flat vertical surfaces, beams, and enclosed cabinet spaces. The side-mount orientation suits installations where horizontal reel mounting is not an option. This reel handles air and water lines as well as oil and grease service lines, giving it broad utility across automotive, industrial, and mechanical service bays.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated and enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports both permanent and temporary installation on vertical flat surfaces, cabinets, and enclosed spaces
• Hose control bar prevents hose from slipping off the disc during retraction or extension
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose with 3/8 inch ID. Suitable for service units, tool benches, tool boxes, vehicle lift systems, machine tools, service vehicles, and any flat vertical surface application requiring a compact spring-driven side-mount reel.

Installation Notes

Installation is performed by qualified mechanical or service technicians using standard hand tools. Depressurize and disconnect the supply line fully before mounting or servicing the reel. Secure the reel to a structurally adequate flat vertical surface using the two-bolt pattern, verifying that fastener hardware meets the load requirements of the application. Follow all applicable shop safety and compressed-air system codes when connecting to air or fluid supply lines.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant, rust inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 41 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17-M325
