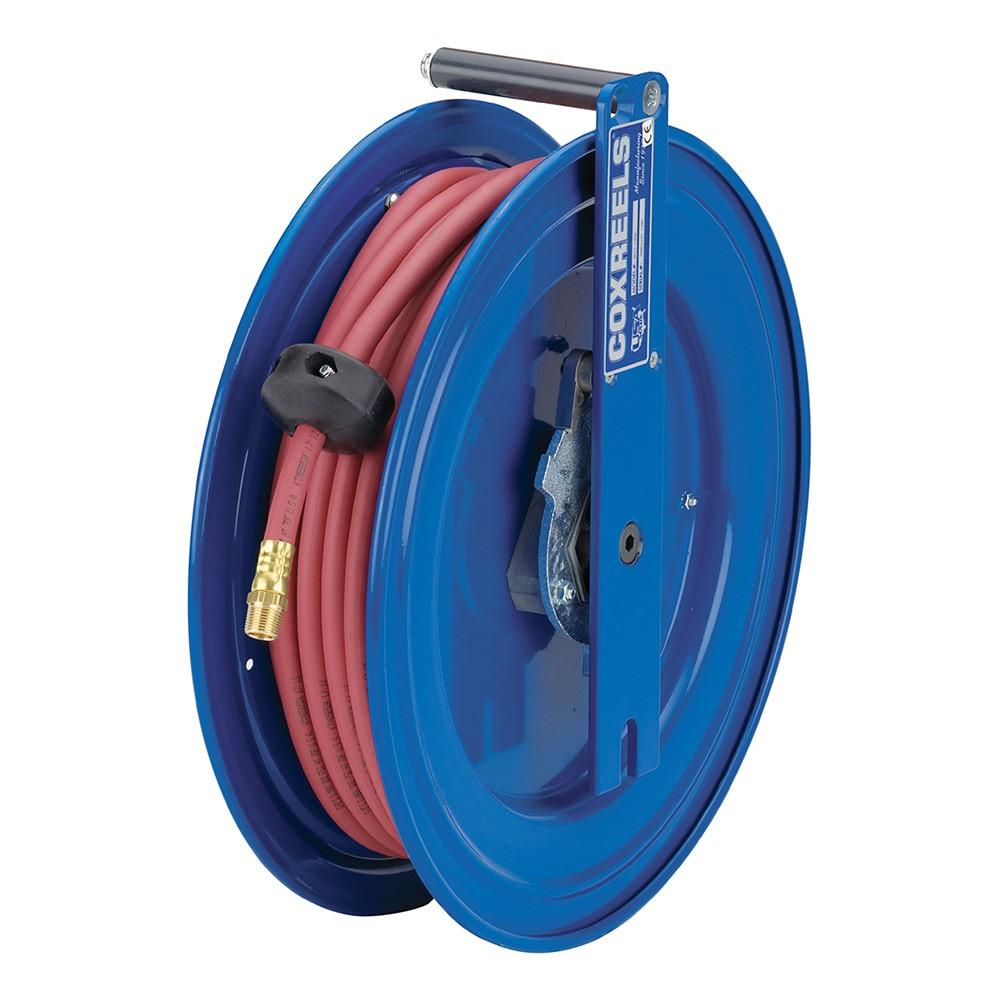

Coxreels SR17-H325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS SR17-H325 is a spring-driven, side-mount hose reel from the S Series, engineered for compact and versatile deployment in professional service environments. The reel accepts hose with a 3/8 inch ID and accommodates 25 feet of hose. A 360-degree hose outlet direction lets the technician route hose in any direction the job demands. The cartridge-style motor is fully enclosed and pre-lubricated for long service intervals. CNC robotically spun and ribbed discs with rolled edges provide structural rigidity and protect hose during retraction. A machined solid brass 90-degree full-flow NPT swivel simplifies seal maintenance without removing the reel from its mount.

The SR17-H325 is suited for air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications. Its two-bolt mounting pattern allows fast installation and detachment, making it practical for multiple workstation rotations. Typical installation locations include service bays, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, and service vehicles. The side-mount design is specifically suited for cabinet interiors, enclosed compartments, and flat vertical surfaces where standard front-mount reels will not fit.

Key Features

• Spring-driven automatic retraction with 360-degree hose outlet direction for flexible positioning
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swap without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for in-field maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Two-bolt side-mount pattern supports both temporary and permanent installation on flat vertical surfaces and cabinet interiors
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

The SR17-H325 is compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose in 3/8 inch ID configurations up to 25 feet in length. It is designed for cabinet mount, enclosed space, and flat vertical surface installations.

Installation Notes

Installation is typically performed by a qualified service technician or maintenance mechanic. Shut off and bleed down any air, fluid, or gas supply to the line before mounting or servicing the reel. Use the two-bolt mounting pattern on a structurally sound flat vertical surface or cabinet panel rated to support the reel weight plus loaded hose. Verify all NPT swivel connections are leak-free under system pressure before returning the line to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17-H325
