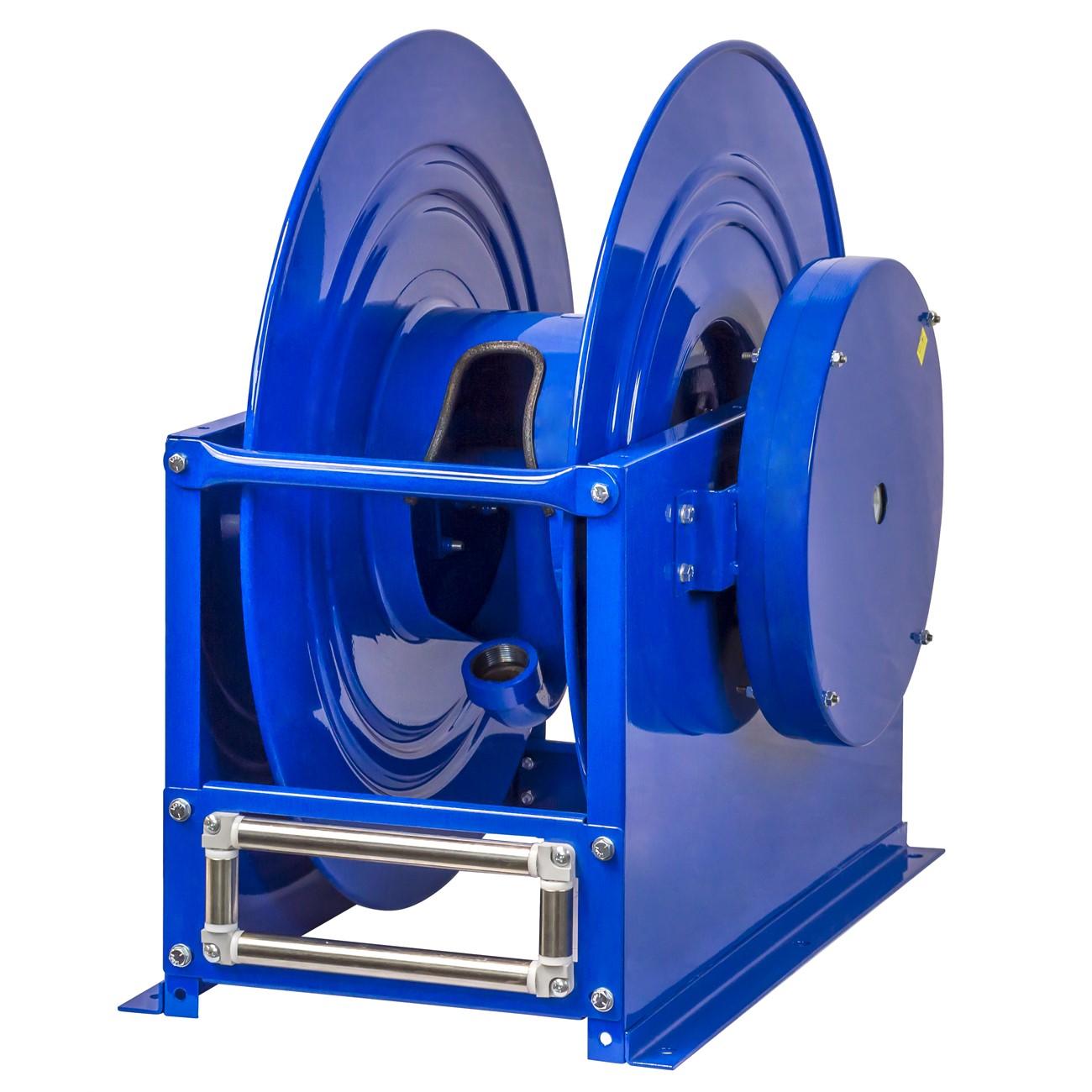

Coxreels SMPL-675 Spring Driven Hose Reel 1 Inch Id 75 Ft

Product Description

The COXREELS SMPL-675 is a spring-driven hose reel from the SP Series, engineered for large-diameter hose applications requiring high-volume delivery at low to medium pressures. Built around a heavy-duty box-style steel frame with cross supports at all four corners, the reel delivers structural rigidity under demanding jobsite conditions. The enclosed cartridge-style spring motor is lubricated and fully removable for safe field maintenance. An electroless nickel plated steel swivel with full-flow NPT connection simplifies seal service without removing the reel from its mount. At 135 pounds, this is a fixed-installation unit suited for permanent or semi-permanent service points in fuel and water delivery systems.

The SMPL-675 is designed for applications where large hose diameters and high-volume flow are required at low to medium working pressures. Typical uses include fuel dispensing, water delivery, and similar industrial or commercial fluid transfer tasks. The reel is commonly installed by mechanics, fleet service technicians, and industrial maintenance trades in shops, fuel facilities, and service bays where a reliable, high-capacity retractable reel is needed at a fixed station.

Key Features

• Spring-driven retraction for hands-free hose retrieval in high-volume delivery applications
• Electroless nickel plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Lubricated enclosed cartridge-style motor is fully removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• 1 inch stainless steel pinch-proof rollers protect hose during extension and retraction
• CPC powder coat finish resists chips, rust, and corrosion for long service life
• Permanently lubricated precision bearings reduce maintenance intervals

Compatibility

Designed for use with hoses measuring 1 inch inner diameter and 1 3/8 inch outer diameter, up to 75 feet in length, in low to medium pressure fuel and water delivery systems.

Installation Notes

Installation is typically performed by qualified mechanical or industrial maintenance technicians. Shut off all fluid supply lines and depressurize the system completely before mounting or servicing the reel. Secure the reel to a structural surface capable of supporting the unit weight plus the loaded hose. Follow applicable facility codes and fluid-handling regulations when connecting to fuel or water supply lines.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.375 inches
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Electroless nickel plated steel
• Swivel Connection: Full-flow NPT, 90 degree
• Roller Material: Stainless steel, 1 inch
• Finish: CPC powder coat, chip and rust resistant
• Weight: 135 pounds
• UPC: 674255820067

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMPL-675
