Coxreels SMPL-650 Spring Driven Hose Reel 1 in Id 50 Ft

Product Description

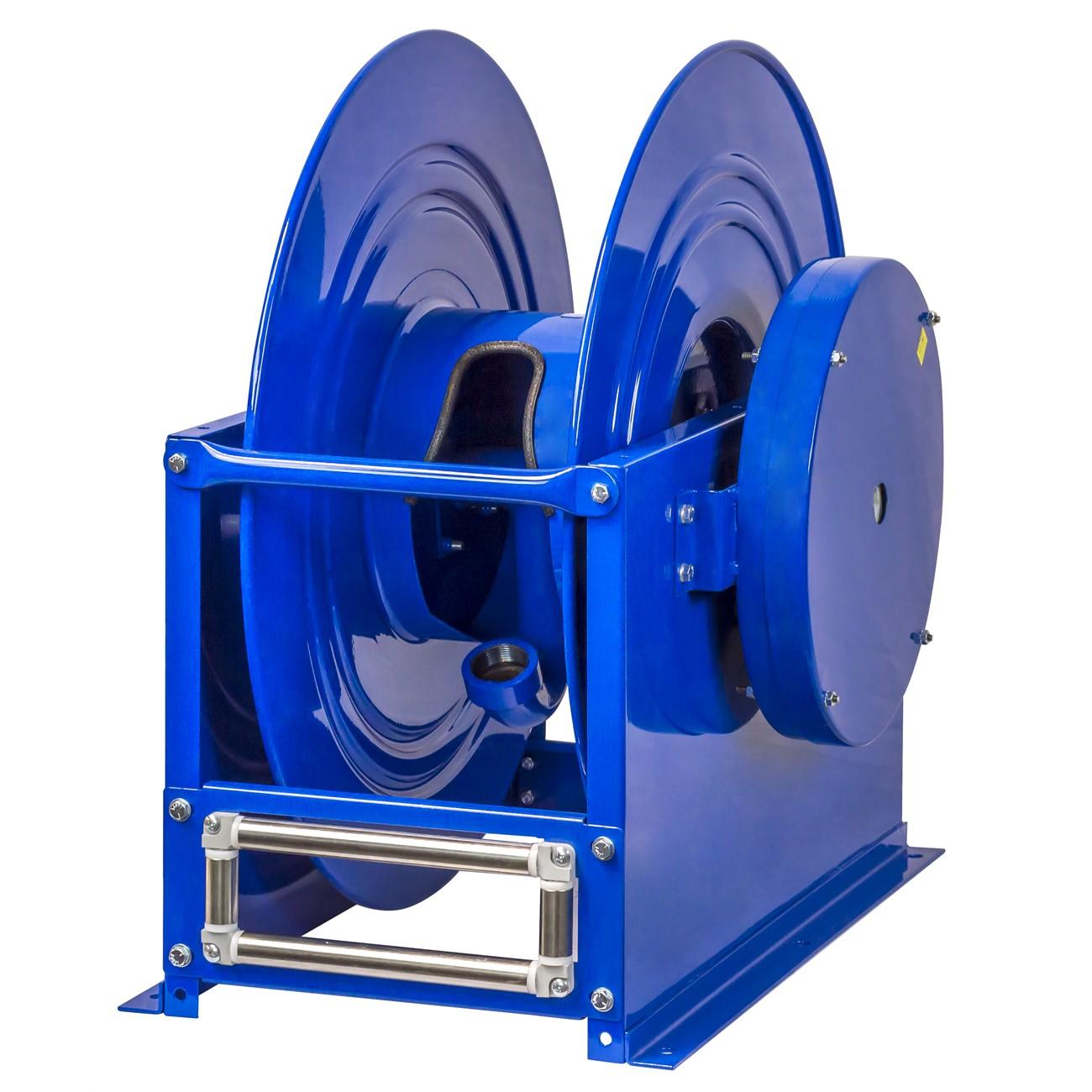

The COXREELS SMPL-650 is a spring-driven hose reel from the SP Series, engineered for large-diameter hose applications that require high-volume delivery at low to medium pressures. The reel features a box-style steel frame with heavy-duty cross supports at all four corners, providing rigid, stable performance in demanding service environments. A permanently lubricated cartridge-style spring motor drives automatic retraction, and a CPC powder coat finish protects the unit against chips, rust, and corrosion. At 110 pounds, this is a heavy-duty unit intended for permanent or semi-permanent installation by qualified tradespeople.

The SMPL-650 is suited for fuel and water delivery applications where large hose diameters and moderate pressures are the norm. Typical installations include fleet fueling stations, agricultural operations, industrial wash-down setups, and commercial water transfer systems. The 1-inch inner diameter accommodates high-flow hose, and the 50-foot capacity provides adequate reach for most service bays and utility installations.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports at all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof hose rollers protect hose integrity during retraction
• CPC powder coat finish resists chips, rust, and corrosion for extended service life

Compatibility

Designed as an OEM-style spring-driven hose reel for large-diameter hose applications in low- to medium-pressure fuel and water delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid transfer systems. Shut off all fluid supply and relieve system pressure before mounting or servicing the reel. Ensure the mounting surface and hardware are rated for the combined weight of the reel and filled hose. Verify swivel inlet connections are sealed and torqued to fitting manufacturer specifications before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.375 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Disc Construction: CNC spun ribbed steel with rolled edges
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Weight: 110 pounds
• UPC: 674255820050

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMPL-650
