Coxreels SMPL-575 Spring Driven Hose Reel 3/4 in 75 Ft

Product Description

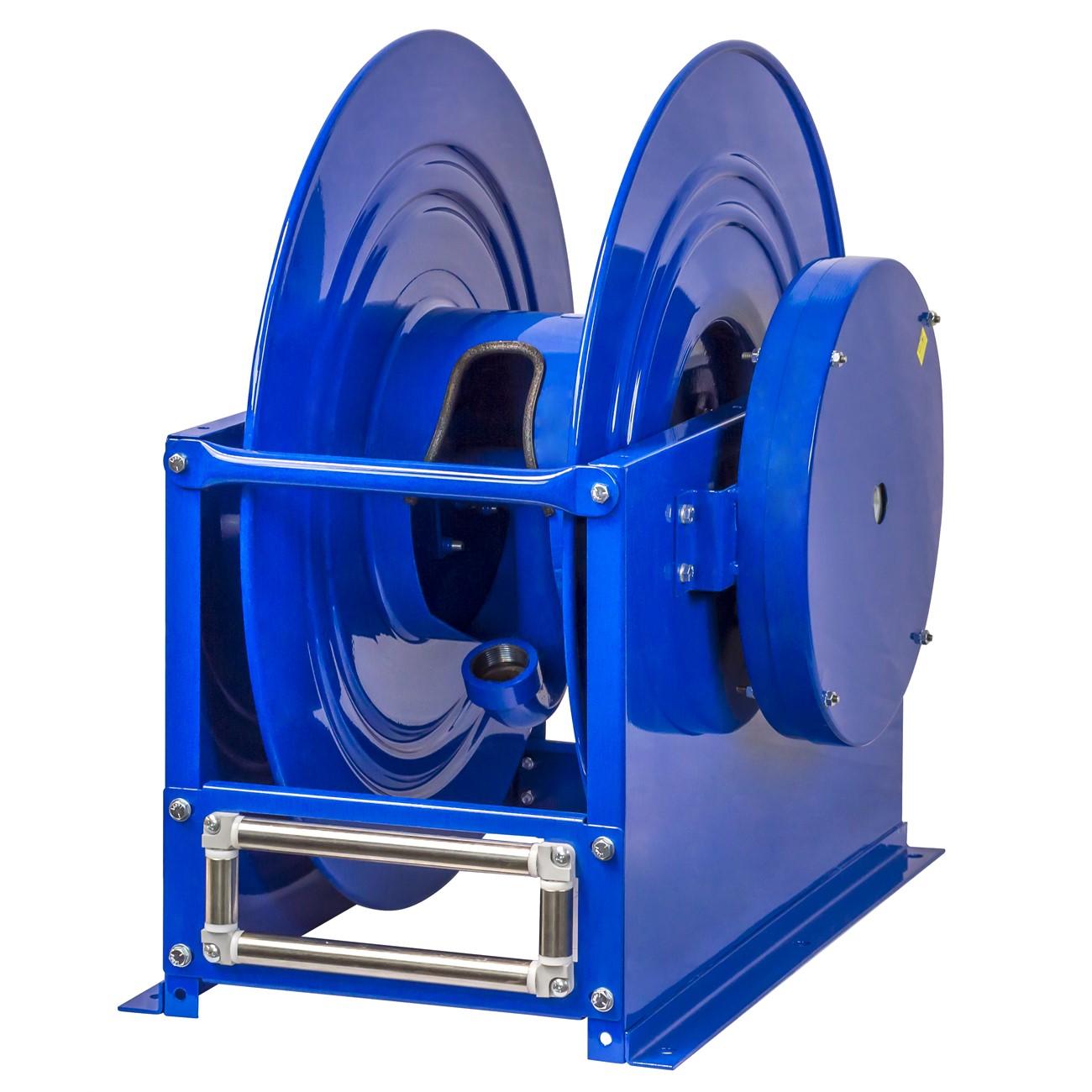

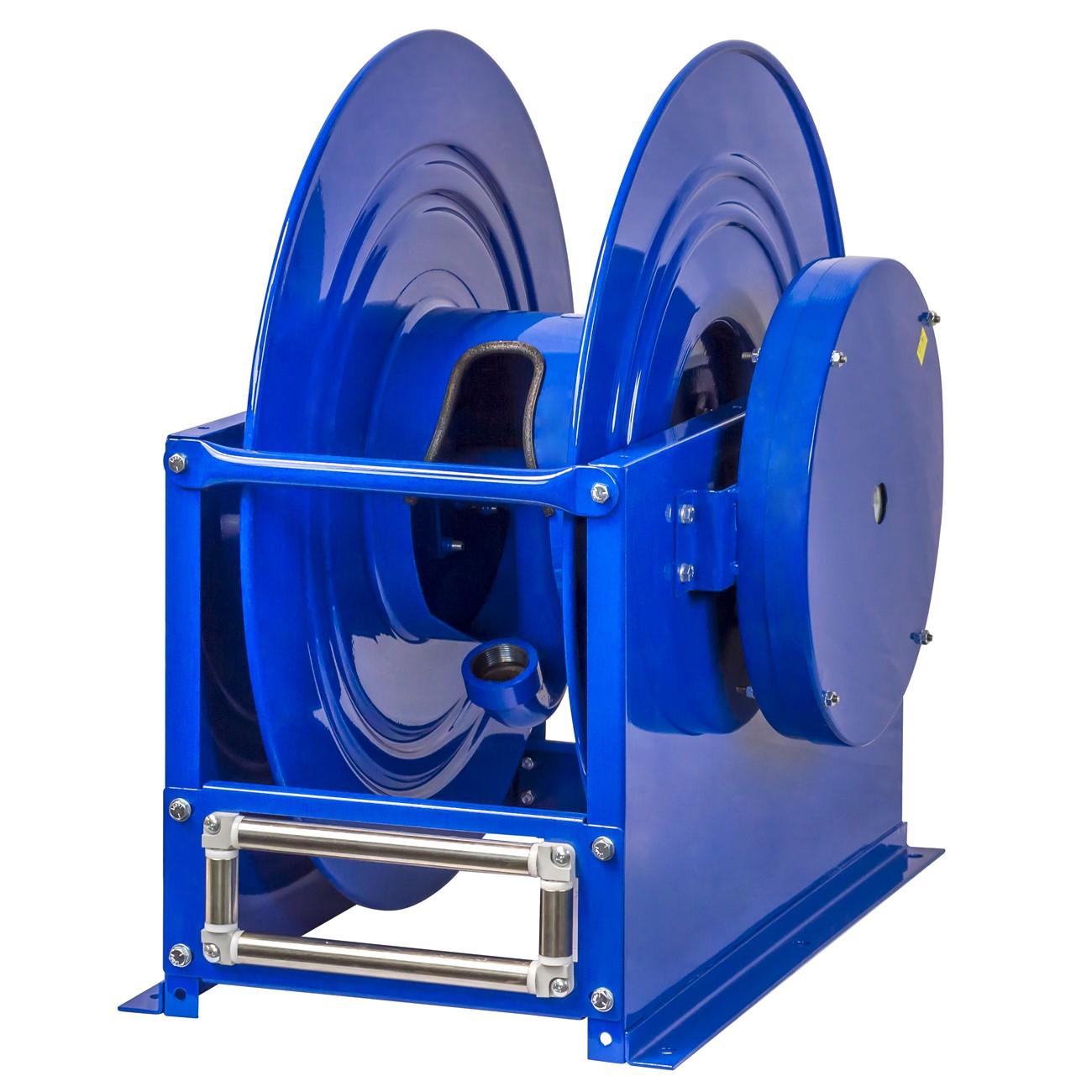

The COXREELS SMPL-575 is a spring-driven hose reel from the SP Series, engineered for large-volume fluid delivery in low and medium pressure applications. Built on a heavy-duty box-style steel frame with cross supports at all four corners, this reel handles hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter across a 75-foot length. It weighs 121 pounds and is constructed for demanding jobsite use. The CPC powder coat finish resists chips and rust for long service life. Licensed HVAC techs, plumbers, and fuel delivery professionals will find this reel suited to high-throughput service work involving water, fuel, and similar fluids.

The SMPL-575 is designed for applications that require large hose diameters and consistent volume delivery at low to medium pressures. Common use cases include fuel dispensing, water delivery, and industrial fluid transfer in both commercial and light industrial settings. The spring-driven rewind mechanism keeps hose organized and reduces manual handling time on the job. The sturdy frame and stainless steel rollers make it appropriate for fixed-mount installations in service vehicles, shop bays, and equipment rooms.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows simple seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is lubricated and fully removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports at all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof rollers protect hose and technician hands during rewind
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings for long service intervals

Compatibility

Designed as an OEM-style spring-driven hose reel for low and medium pressure fluid delivery applications including fuel and water service installations.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or qualified fluid-system mechanics. Power down or shut off all fluid supply lines before mounting or servicing the reel. Secure the reel to a stable fixed surface using appropriately rated fasteners for the mounting substrate. Verify that all NPT swivel connections are properly sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Length: 75 feet
• Drive Type: Spring driven
• Frame Material: Steel
• Roller Material: Stainless steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Weight: 121 pounds
• UPC: 674255820036

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMPL-575
