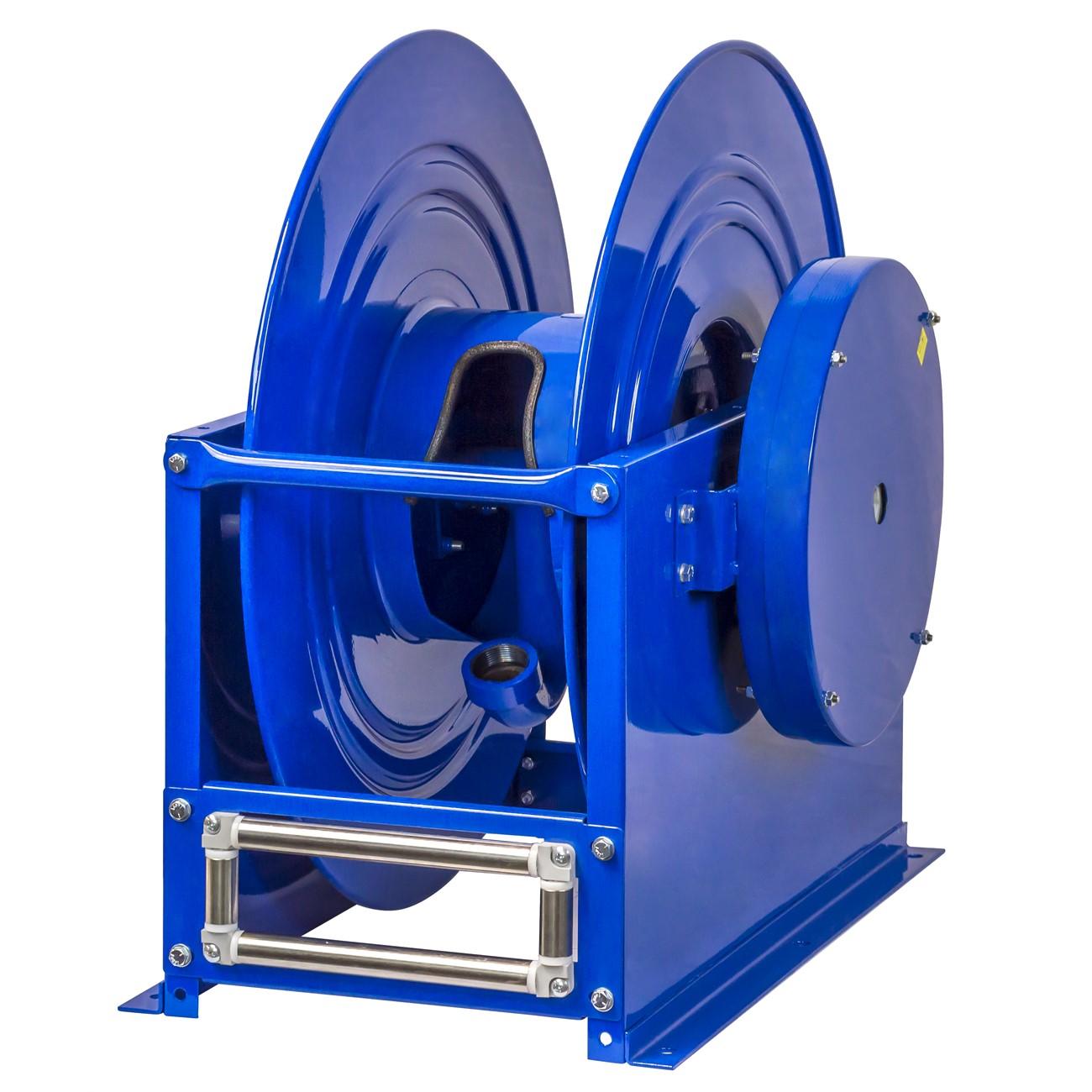

Coxreels SMPL-550 Spring Driven Hose Reel 3/4 in 50 Ft Steel

Product Description

The COXREELS SMPL-550 is a spring-driven hose reel from the SP Series, engineered for large-hose-diameter applications requiring high-volume delivery at low to medium pressures. Built on a heavy-duty box-style steel frame with cross supports extending to all four corners, this reel provides the rigidity needed in demanding fuel and water delivery environments. The reel accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, handling up to 50 feet of hose. Licensed plumbers, fuel-system technicians, and industrial maintenance crews are the typical installers for this unit.

The SMPL-550 is suited for residential and commercial applications where large-volume, low-to-medium-pressure fluid delivery is required. Common use cases include bulk water dispensing, fuel transfer, and washdown service. The box-style frame and heavy-duty construction make it appropriate for permanent wall or stand mounting in shops, fleet facilities, and service bays. The spring-driven retraction mechanism supports repeated daily use in high-cycle environments.

Key Features

• Spring-driven retraction handles large hose diameters for high-volume, low-to-medium-pressure delivery
• Machined solid-brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and fully removable for safe, convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• 1 inch stainless steel pinch-proof rollers protect hose during retraction and extension
• CPC powder coat finish resists chips and rust for long service life in corrosive environments
• Permanently lubricated precision bearings require no routine re-greasing

Compatibility

Designed for use with hose measuring 3/4 inch inner diameter and 1-1/16 inch outer diameter, up to 50 feet in length, in low-to-medium-pressure fuel and water delivery systems.

Installation Notes

Installation is typically performed by a licensed plumber, fuel-system technician, or qualified maintenance professional. Shut off all fluid supply and relieve line pressure completely before mounting or connecting the reel. Secure the reel to a structurally sound surface using hardware rated for the combined weight of the reel and fluid-filled hose. Verify all NPT swivel connections for leaks before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Maximum Hose Length: 50 feet
• Frame Material: Steel
• Swivel Material: Solid brass
• Roller Material: Stainless steel
• Drive Type: Spring driven
• Weight: 89 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMPL-550
