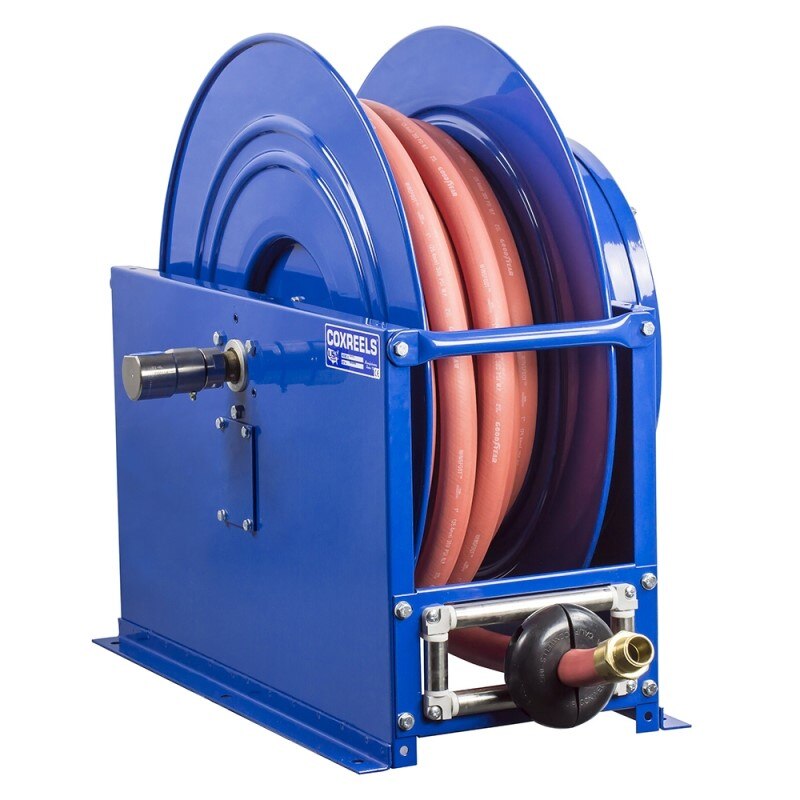

Coxreels SMP-575 Spring Driven Hose Reel 3/4 in 75 Ft

Product Description

The COXREELS SMP-575 is a spring-driven hose reel from the SP Series, designed to handle large-diameter hose in low- and medium-pressure delivery applications. Built for fuel and water service, it features a heavy-duty box-style steel frame with cross supports to all four corners for added rigidity. The reel uses a fully enclosed cartridge-style motor for easy serviceability and CNC robotically spun ribbed steel discs with rolled edges for hose protection and operator safety. At 151 pounds, this is a robust, industrial-grade unit suited for professional installation in demanding service environments.

The SMP-575 is used in applications requiring large-volume fluid delivery at low to medium pressures, including fuel dispensing and water service. The box-style frame design and heavy-duty construction make it appropriate for permanent mounting in commercial and industrial settings. The spring-driven retraction mechanism keeps hose under controlled tension without requiring a powered drive. Licensed contractors and service technicians installing fuel or water delivery systems are the primary installers of this reel.

Key Features

• Spring-driven retraction with enclosed cartridge-style motor that is removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance and fast hose installation
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with heavy-duty cross supports to all four corners
• 1 inch stainless steel pinch-proof rollers
• CPC powder coat finish that is chip-resistant and rust-inhibiting, plus adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID, 1-1/16 inch OD hose up to 75 feet in length in low- to medium-pressure fuel and water delivery systems.

Installation Notes

Installation is typically performed by licensed plumbers, fuel system technicians, or industrial maintenance professionals. Shut off fluid supply and depressurize the system completely before mounting or servicing the reel. The reel should be securely bolted to a structurally adequate surface using hardware appropriate for the mounting substrate and load. Follow all applicable local codes and manufacturer guidance for fuel-service installations.

Technical Specifications

• Hose Inner Diameter: 3/4 inches
• Hose Outer Diameter: 1-1/16 inches
• Hose Length Capacity: 75 feet
• Frame Material: Steel
• Swivel Material: Solid brass
• Roller Material: Stainless steel
• Roller Diameter: 1 inch
• Drive Type: Spring-driven
• Finish: CPC powder coat
• Weight: 151 pounds
• UPC: 674255827288

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMP-575
