Coxreels SMP-550 Spring Driven Hose Reel 3/4 Inch Steel

Product Description

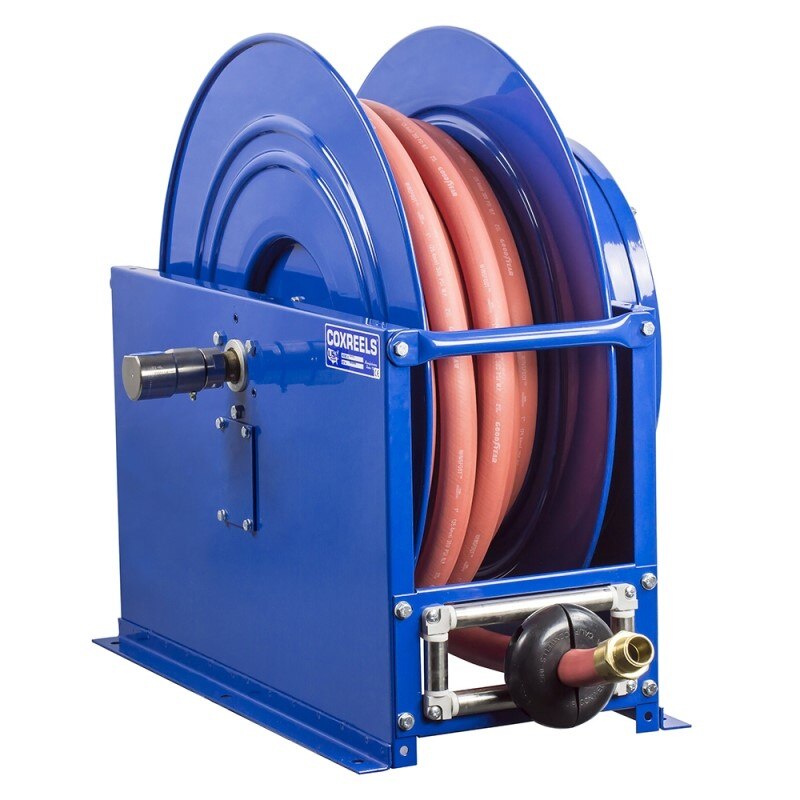

The COXREELS SMP-550 is a spring-driven hose reel from the SP Series, designed to accommodate large-diameter hose for high-volume delivery at low and medium pressures. Built on a box-style steel frame with heavy-duty cross supports at all four corners, this reel delivers the structural rigidity required for demanding fuel and water delivery applications. The 3/4 inch ID, 1 1/16 inch OD hose capacity supports 50 feet of hose. A permanently lubricated cartridge-style motor and machined brass swivel contribute to reduced downtime and straightforward field maintenance. At 109 pounds, this reel is suited for fixed or wall-mount installations in industrial and commercial environments.

The SMP-550 is intended for applications requiring large-volume hose delivery at low to medium pressures, including fuel dispensing and water service. Its spring-driven retraction mechanism makes it appropriate for service bays, fuel islands, fleet maintenance facilities, and light industrial settings. The reel is designed for permanent installation where a reliable, self-retracting hose management solution is needed. Licensed technicians and qualified service personnel typically handle mounting and plumbing connections for this class of equipment.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof rollers protect hose during retraction
• CPC powder coat finish provides chip resistance and rust inhibition; includes adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for low and medium pressure fuel and water delivery applications requiring 3/4 inch ID hose up to 50 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting, fluid system plumbing, and applicable local codes. Shut off all fluid supply and relieve line pressure before connecting or disconnecting fittings. Secure the reel to a structurally adequate surface using appropriate hardware rated for the assembly weight. Verify all NPT threaded connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 3/4 inch
• Hose Outside Diameter: 1 1/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring Driven
• Frame Material: Steel
• Swivel Material: Solid Brass
• Roller Material: Stainless Steel
• Roller Diameter: 1 inch
• Finish: CPC Powder Coat
• Weight: 109 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMP-550
