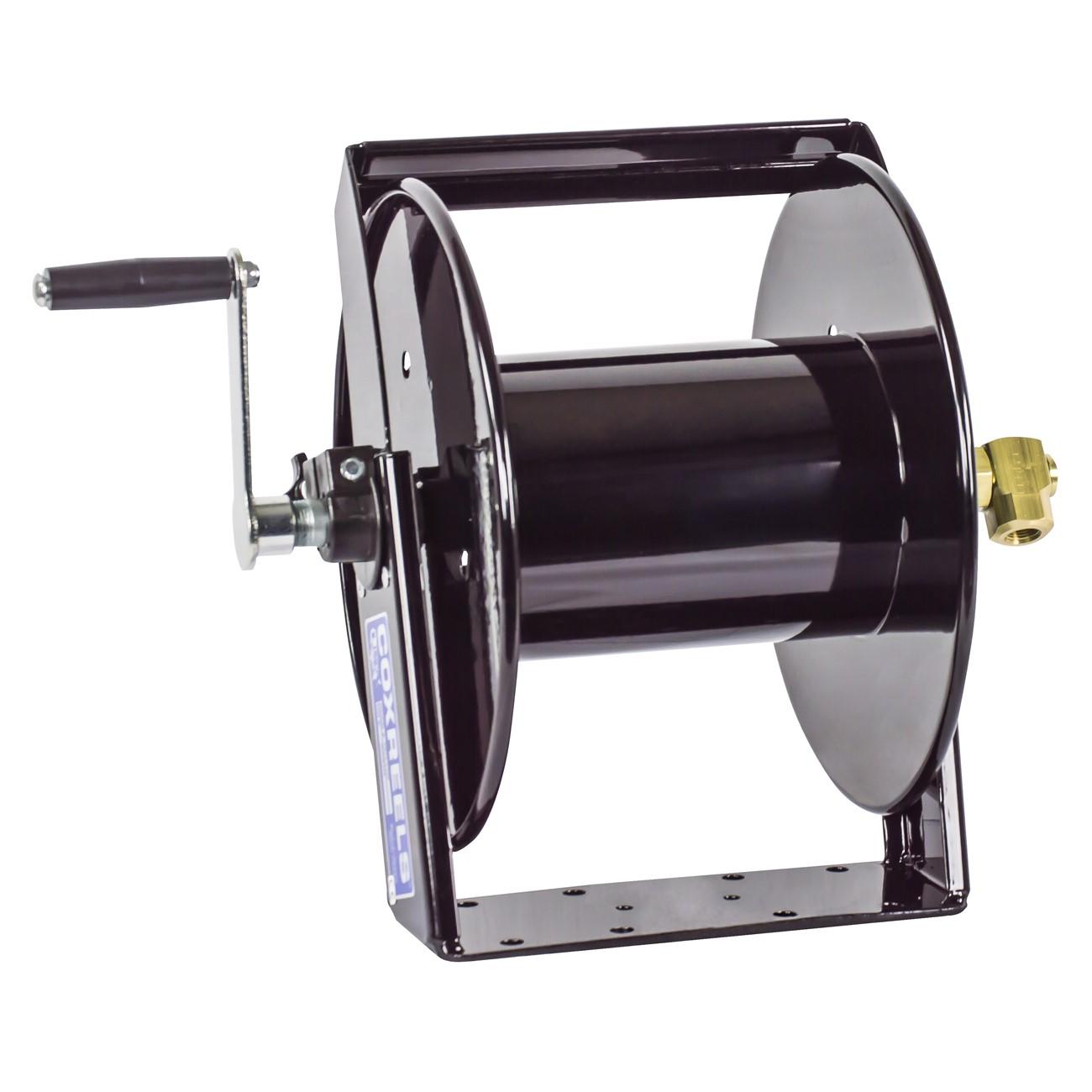

Coxreels SM17-3-250 Swivel Mount Hose Reel 250 Ft

Product Description

The COXREELS SM17-3-250 is a swivel-mount, hand-crank hose reel from the SM Series, designed for demanding trade and industrial applications. It accommodates hose with a 3/8 inch inner diameter and holds up to 250 feet of hose. The reel handles working pressures up to 4,000 psi, making it suitable for hydraulic, pneumatic, and fluid-transfer tasks in the field or shop. Built on a one-piece heavy-gauge steel frame, the SM17-3-250 swivels on demand and locks into eight positions, letting technicians orient the reel toward the work without relocating the mount. A machined solid-brass full-flow NPT swivel supports fast hose installation and straightforward seal maintenance.

The SM Series is a compact, lightweight platform suited for both residential service calls and commercial job sites. The SM17-3-250 is a practical choice for HVAC contractors, plumbers, and general mechanical trades who need reliable hose management at a fixed station or on a service vehicle. The optional SMK-202 wall-mount bracket enables swiveling mounted configurations. The adjustable tension brake controls draw speed and prevents free-wheeling during transport or storage. The hose control bar prevents hose from slipping off the side discs from any direction, reducing tangling and downtime on the job.

Key Features

• Swivels on demand and locks in eight positions for flexible hose routing
• Machined solid-brass 90-degree full-flow NPT swivel for easy seal maintenance and hose installation without removing the reel from its mount
• One-piece, forward-weighted heavy-gauge steel frame promotes rotation toward the direction of use
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life

Compatibility

Designed for use with 3/8 inch ID hose up to 250 feet in length at working pressures up to 4,000 psi. Compatible with the optional SMK-202 wall-mount bracket for swiveling mounted installations.

Installation Notes

Installation is typically performed by a qualified mechanic, HVAC technician, or plumber. Depressurize and drain any connected hose or line before mounting or servicing the reel. Secure the base to a structurally sound surface using appropriately rated fasteners. Follow all applicable safety codes for the fluid or gas being conveyed when selecting fittings and hose rated to the system pressure.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Capacity: 250 feet
• Working Pressure: 4,000 psi
• Frame Material: Steel
• Swivel Material: Solid Brass
• Mount Type: Swivel Mount
• Retraction: Hand Crank
• Locking Positions: 8
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 19 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SM17-3-250
