Product Description

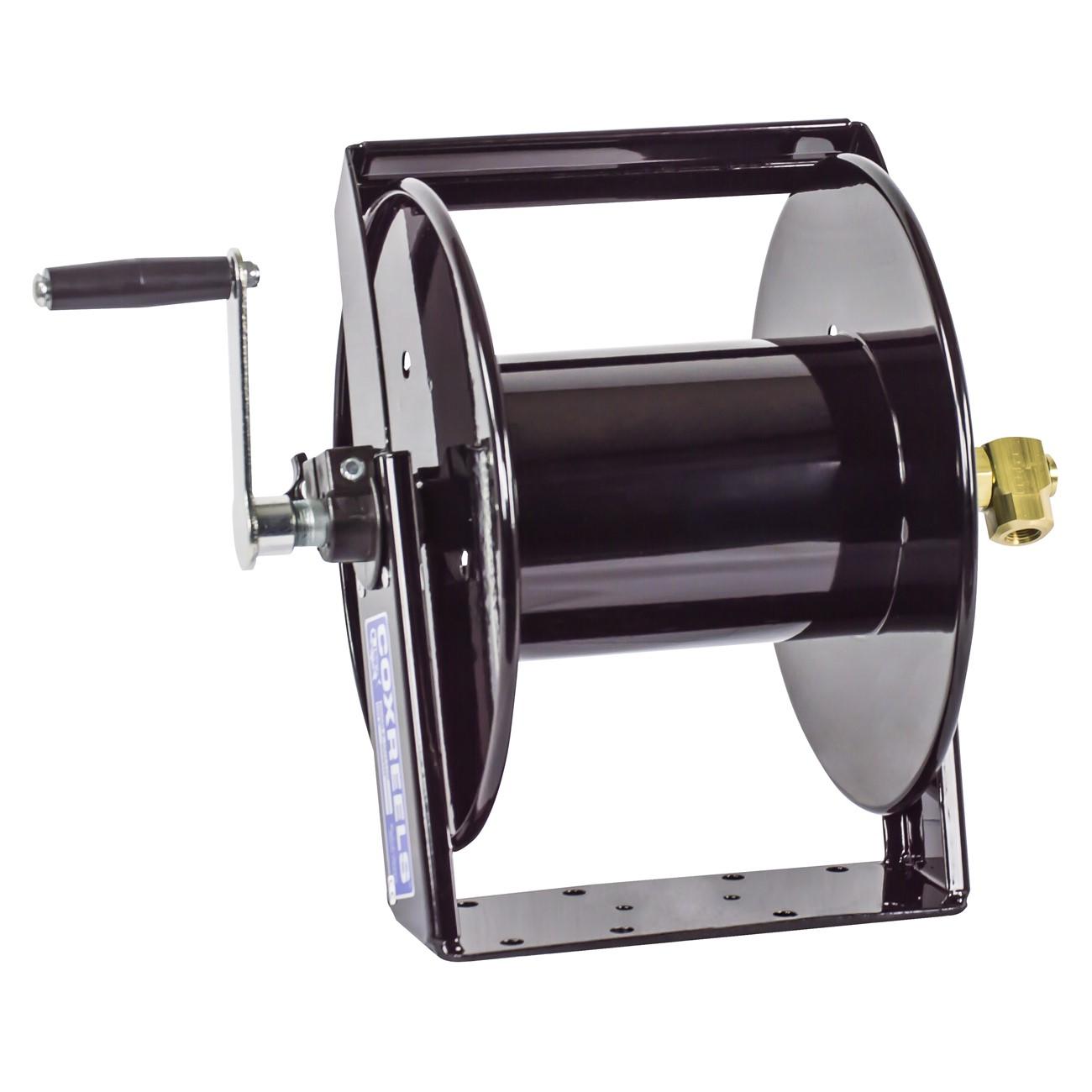

The COXREELS SM12-3-100 is a swivel-mount, hand-crank hose reel built for demanding trade applications where portability and directional flexibility matter. Part of the SM Series, it accommodates 3/8 inch ID, 5/8 inch OD hose up to 100 feet and handles working pressures up to 4,000 psi. The reel swivels on demand and locks into eight fixed positions, letting a technician follow the work without repositioning the mount. The heavy-gauge steel frame and CNC-spun ribbed discs give the unit structural rigidity while the powder coat finish resists chipping and rust. Licensed contractors in HVAC, plumbing, and general mechanical service will find this reel suited to air, water, and similar fluid delivery tasks.

The SM12-3-100 fits residential and light commercial service environments where a compact, wall- or surface-mounted reel is needed at a fixed service station or in a service vehicle. The swivel base paired with the optional SMK-202 wall mount bracket allows the reel to be permanently installed while still tracking in the direction of use. The U-shaped base and hose control bar work together to keep hose seated properly on the side discs during payout and retrieval, reducing kinking and side-loading wear on the hose.

Key Features

  • Swivels on demand and locks in 8 positions for directional flexibility without dismounting
  • Working pressure rated to 4,000 psi
  • Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
  • Heavy-gauge one-piece steel frame is forward-weighted for consistent rotation in the direction of use
  • CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
  • Adjustable tension brake controls payout speed and prevents free-wheeling during operation, transport, and storage
  • Long-lasting CPC powder coat finish resists chips and rust

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 100 feet in length. Compatible with the optional SMK-202 wall mount bracket for swiveling mounted installations.

Installation Notes

Installation is typically performed by a licensed mechanical, HVAC, or plumbing contractor. Shut off and depressurize the supply line completely before connecting or disconnecting the hose reel. Ensure the mounting surface is capable of supporting the weight of the reel plus a fully loaded hose. Follow applicable local codes and manufacturer torque guidance for all NPT threaded connections.

Technical Specifications

  • Hose ID: 3/8 inch
  • Hose OD: 5/8 inch
  • Hose Capacity: 100 feet
  • Working Pressure: 4,000 psi
  • Swivel Positions: 8
  • Frame Material: Steel
  • Finish: CPC powder coat
  • Length: 20.75 inches
  • Width: 12.5 inches
  • Height: 13.5 inches
  • Weight: 15 pounds
  • UPC: 674255821859

Standard Information

  • Brand: COXREELS
  • Manufacturer Part Number: SM12-3-100
