Coxreels SLPL-835 Spring Driven Hose Reel 1.5 in 35 Ft

Product Description

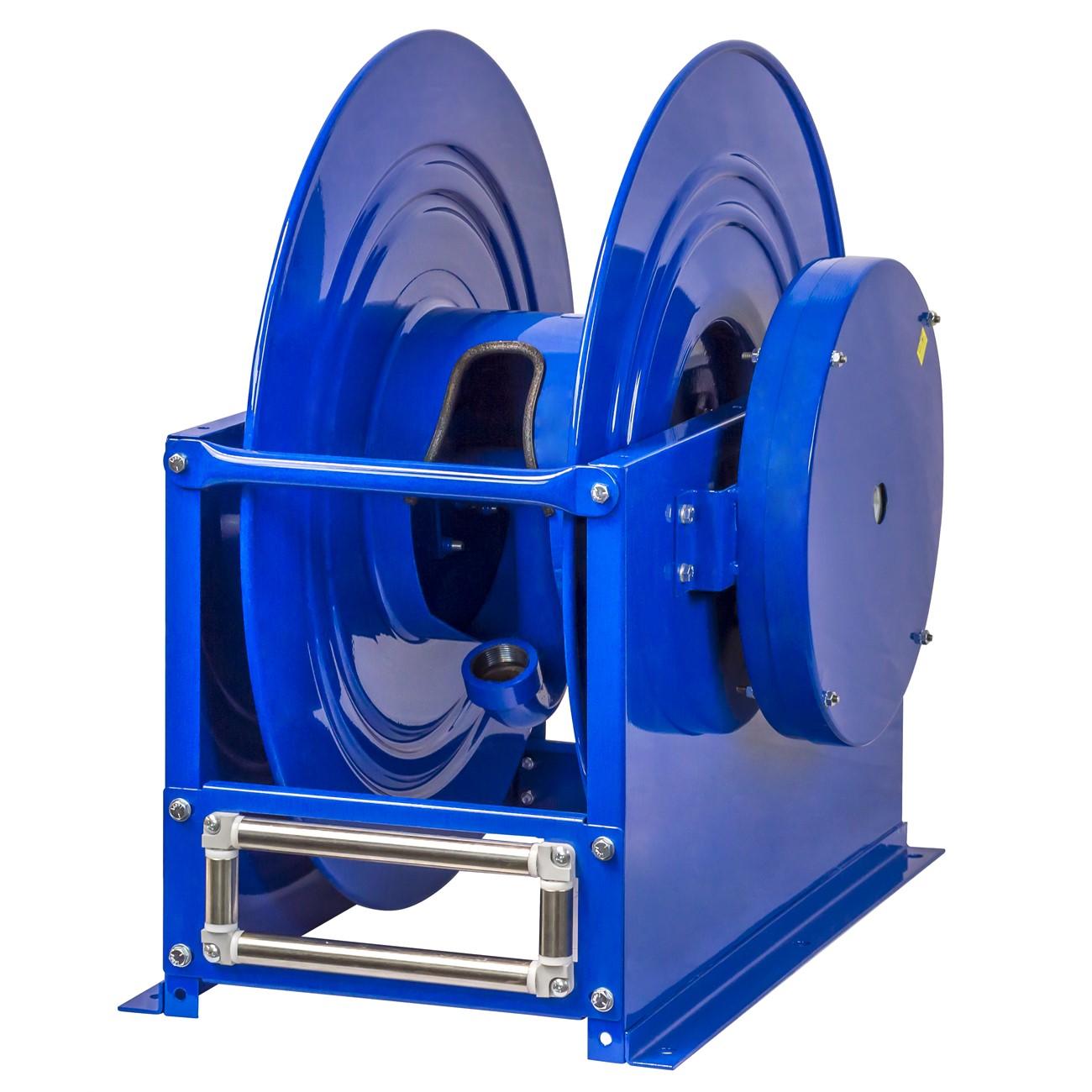

The COXREELS SLPL-835 is a spring-driven hose reel from the SP Series, engineered for large-volume fluid delivery in low- and medium-pressure applications. With a 1.5-inch inner diameter and 35-foot hose capacity, it handles demanding fuel and water service where high flow rates are required. The reel features a box-style steel frame with heavy-duty cross supports to all four corners, CNC robotically spun and ribbed discs with rolled edges, and a cartridge-style spring motor that is fully enclosed and lubricated. Licensed HVAC, plumbing, and mechanical contractors install this reel in commercial and industrial service environments where reliable hose management and large-diameter hose support are required.

The SLPL-835 is suited for fuel delivery, water transfer, and similar large-volume, low-to-medium-pressure service applications. The 2.0625-inch outer diameter hose path and spring-retraction mechanism make it a practical fit for fleet service bays, industrial facilities, and commercial wash-down stations. Its permanent mount design supports fixed installation in truck service, bulk fuel dispensing, and high-flow water delivery setups where a compact, reinforced reel is needed.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for field maintenance without special tooling
• Electroless nickel-plated steel 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and hose protection
• Box-style steel frame with heavy-duty cross supports at all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof rollers protect hose during retraction
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in harsh environments

Compatibility

Designed as an OEM-style spring-driven reel for large-diameter hose in low- and medium-pressure fuel and water delivery applications.

Installation Notes

Installation is typically performed by licensed plumbing or mechanical contractors following applicable local codes. Shut off all fluid supply and relieve hose pressure before mounting or servicing the reel. Secure the reel to a structurally rated surface using appropriately rated fasteners. Do not exceed the rated working pressure for the connected hose assembly.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Electroless nickel-plated steel
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Weight: 128 pounds
• UPC: 674255819931

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-835
