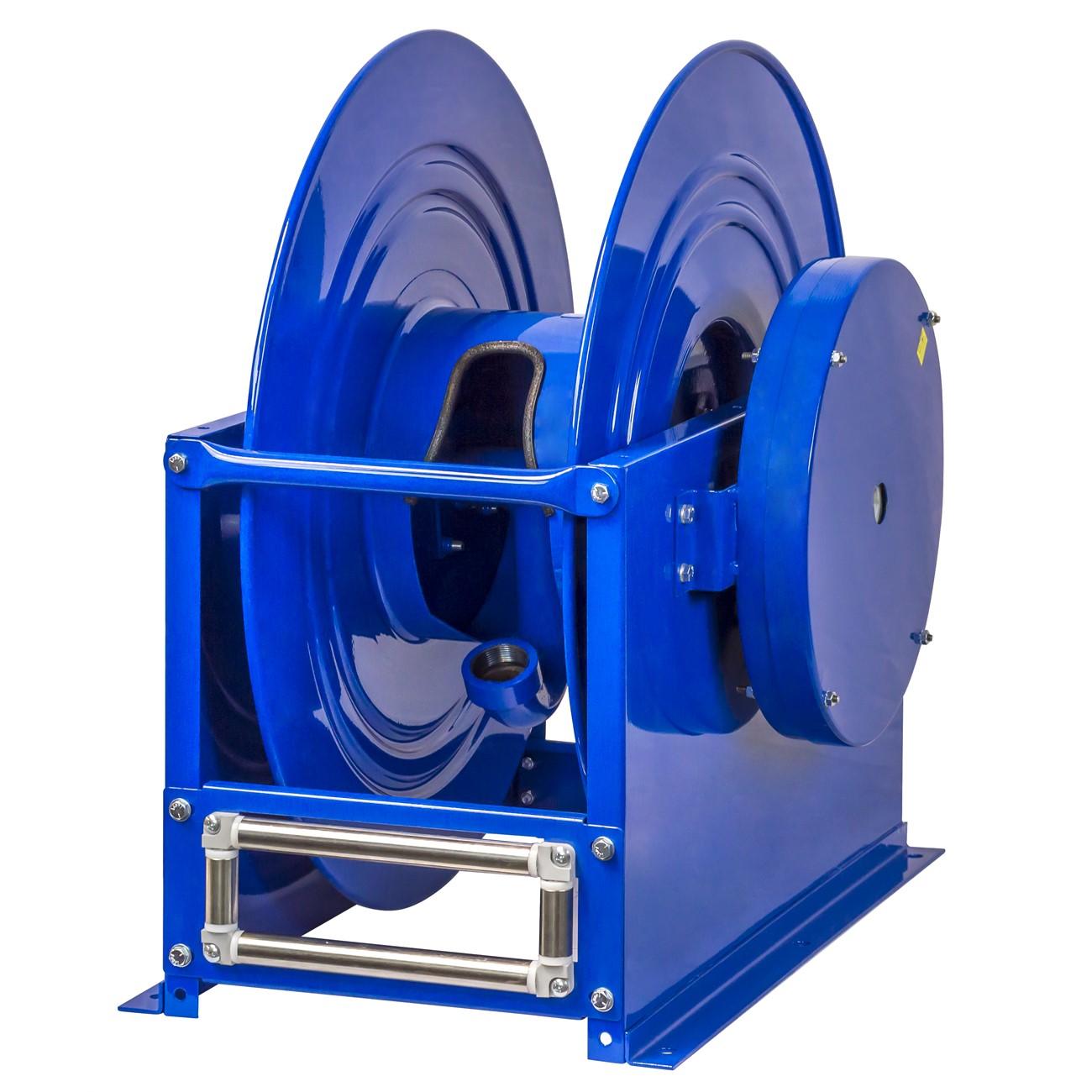

Coxreels SLPL-750 Spring Driven Hose Reel 1-1/4 in Id

Product Description

The COXREELS SLPL-750 is a spring-driven hose reel built for large-volume fluid delivery in low- and medium-pressure applications. Part of the COXREELS SP Series, it is engineered to accommodate large hose diameters and handle demanding delivery tasks involving fuel, water, and similar media. The reel features a box-style steel frame with heavy-duty cross supports at all four corners for structural rigidity. An electroless nickel-plated steel 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. At 123 pounds, this is a heavy-duty unit suited for permanent or semi-permanent installation by qualified service professionals.

The SLPL-750 is used in industrial, commercial, and fleet service environments where large hose diameters and high-volume delivery are required at low to medium pressures. Typical applications include fuel dispensing, bulk water delivery, and similar high-flow service scenarios. The spring-driven retraction mechanism keeps hose managed and off the floor between uses, reducing trip hazards and extending hose service life. This reel is appropriate for shop bays, service vehicles, and fixed dispensing stations where a 1-1/4 inch ID hose is the standard working size.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Enclosed cartridge-style spring motor is lubricated and removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof rollers protect hose during retraction and extension
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or direct application fit for large-diameter hose reel installations requiring a 1-1/4 inch ID hose connection at low to medium operating pressures.

Installation Notes

Installation of this reel should be performed by a qualified technician familiar with fluid delivery systems and applicable safety codes. Before servicing or mounting, shut off all fluid supply and relieve any pressure in the connected hose line. Mounting hardware and fasteners must be rated for the combined weight of the reel and a fully loaded hose. Verify swivel connections are properly torqued and leak-free before returning the system to service.

Technical Specifications

• Hose ID: 1-1/4 inches
• Hose OD: 1-13/16 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 123 pounds
• UPC: 674255819887

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-750
