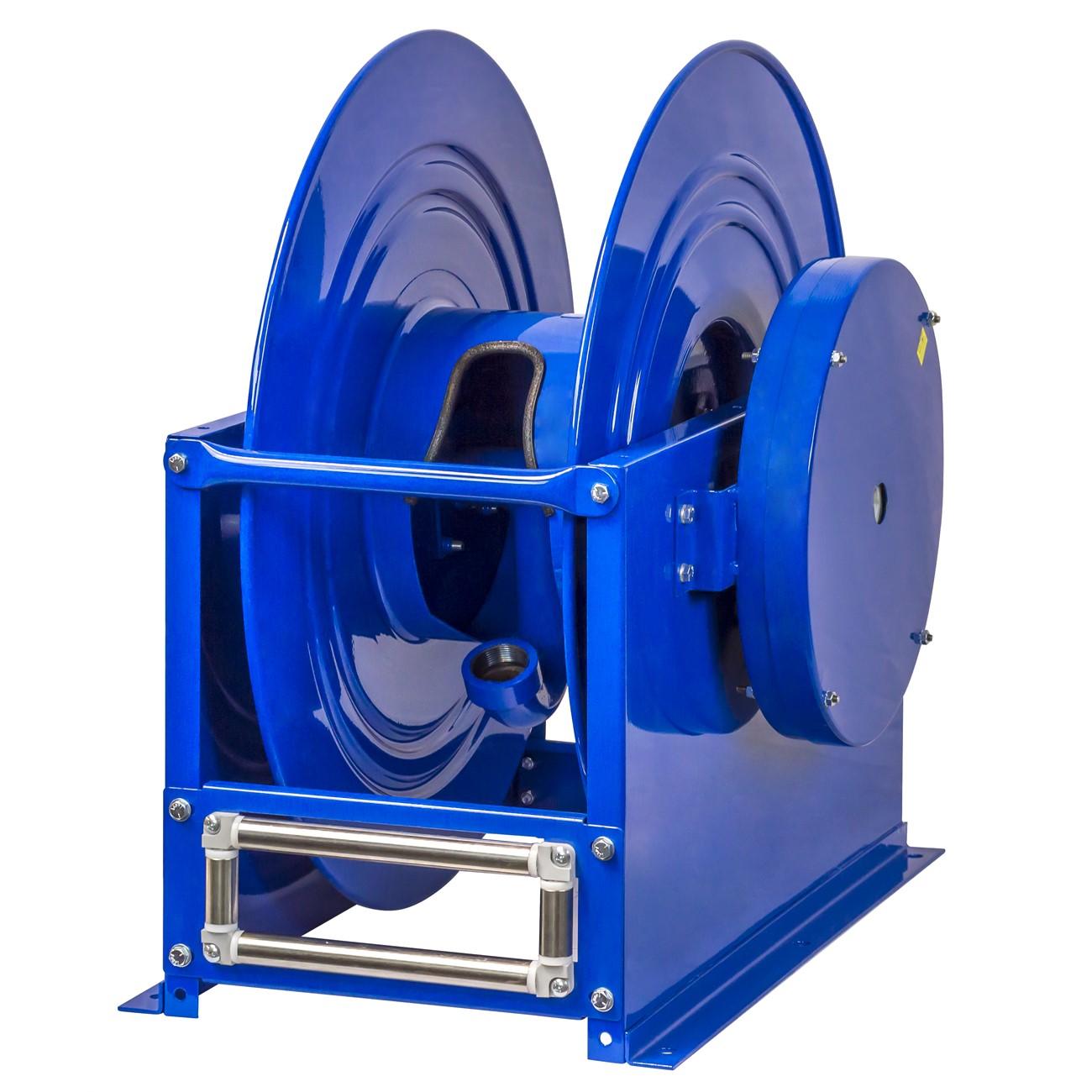

Coxreels SLPL-725 Spring Driven Hose Reel 1-1/4 in Id

Product Description

The COXREELS SLPL-725 is a spring-driven hose reel from the SP Series, engineered for applications requiring large-volume delivery at low to medium pressures. Built around a heavy-duty box-style steel frame with cross supports at all four corners, this reel is designed for demanding fuel and water delivery environments. The cartridge-style motor is fully enclosed and lubricated, allowing removal without taking the reel off its mount. CNC robotically spun and ribbed steel discs with rolled edges provide structural integrity and protect both the hose and the technician during operation. At 110 pounds, this is a heavy-duty, stationary-grade unit suited for professional service installations.

The SLPL-725 is suited for commercial and industrial applications where large-diameter hose and high-volume fluid transfer are required at low to medium working pressures. Typical installations include fueling stations, fleet maintenance facilities, irrigation systems, and industrial water delivery setups. The spring-driven retraction mechanism allows hands-free hose retrieval, reducing wear and improving workflow in high-use environments. The 1 1/4 inch inner diameter hose path accommodates larger-bore hoses used in volume-sensitive applications.

Key Features

• Spring-driven retraction for automatic, hands-free hose retrieval
• Electroless nickel plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is fully removable for maintenance access
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• 1 inch stainless steel pinch-proof rollers for smooth, safe hose travel
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Permanently lubricated precision bearings require no routine bearing maintenance

Compatibility

Designed as an OEM-style replacement or direct installation unit for large-diameter hose reel applications in low to medium pressure fuel and water delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid delivery systems and applicable local codes. Shut off all fluid supply and relieve system pressure completely before mounting or servicing the reel. Ensure the mounting surface and fasteners are rated to support the reel weight of 110 pounds plus the weight of the hose and fluid load. Consult IFGC or local fuel-handling codes when installing in fuel delivery applications.

Technical Specifications

• Hose Inner Diameter: 1 1/4 inches
• Hose Outer Diameter: 1 13/16 inches
• Hose Length Capacity: 25 feet
• Weight: 110 pounds
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Electroless nickel plated steel
• Roller Material: Stainless steel
• Finish: CPC powder coat
• UPC: 674255819863

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-725
