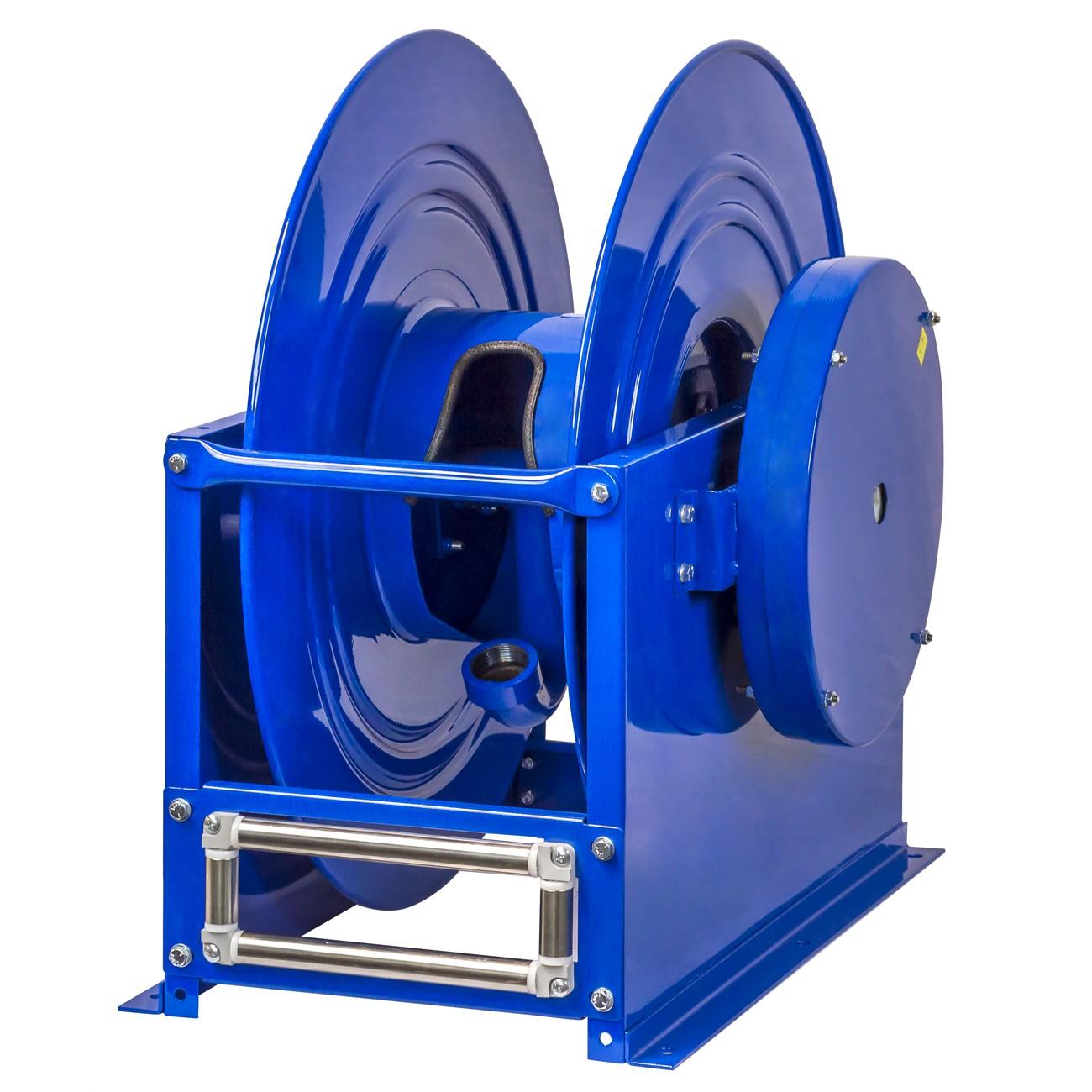

Coxreels SLPL-675 Spring Driven Hose Reel 75 Ft

Product Description

The COXREELS SLPL-675 is a spring-driven hose reel from the SP Series, designed for large-diameter hose applications requiring high-volume delivery at low to medium pressures. Built for fuel and water dispensing, it features a heavy-duty box-style steel frame with reinforced cross supports at all four corners. The reel accepts 1-inch ID hose up to 75 feet in length and is constructed to handle the physical demands of continuous commercial and industrial use. A permanently lubricated cartridge-style motor and CPC powder coat finish support long service life with minimal maintenance downtime.

The SLPL-675 is suited for fuel and water delivery applications in commercial, industrial, and fleet service environments. The box-style frame and heavy-duty components make it appropriate for permanent bay installations or high-cycle service points where large hose volumes must be dispensed and retracted repeatedly. Licensed mechanics, fuel service technicians, and facilities maintenance personnel are the typical installers of this reel type.

Key Features

• Spring-driven retraction handles 1-inch ID hose up to 75 feet in length
• Machined zinc-plated steel 90-degree full-flow NPT swivel rated for fuel dispensing service
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection
• Heavy-duty 1-inch stainless steel pinch-proof rollers at the hose guide
• CPC chip-resistant, rust-inhibiting powder coat finish over reinforced box-style steel frame

Compatibility

Designed as an OEM-style large-diameter spring-driven hose reel for low and medium pressure fuel and water delivery systems requiring 1-inch ID hose up to 75 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel dispensing or fluid handling systems. Shut off all fluid supply and relieve system pressure before mounting or connecting the reel. Secure mounting hardware to a structurally sound surface rated for the combined weight of the reel and a fully loaded hose. Verify all swivel and inlet fittings are properly torqued and leak-tested before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 1 inch
• Hose Outside Diameter: 1.5 inches
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Zinc-plated machined steel
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 29 inches
• Weight: 142 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-675
