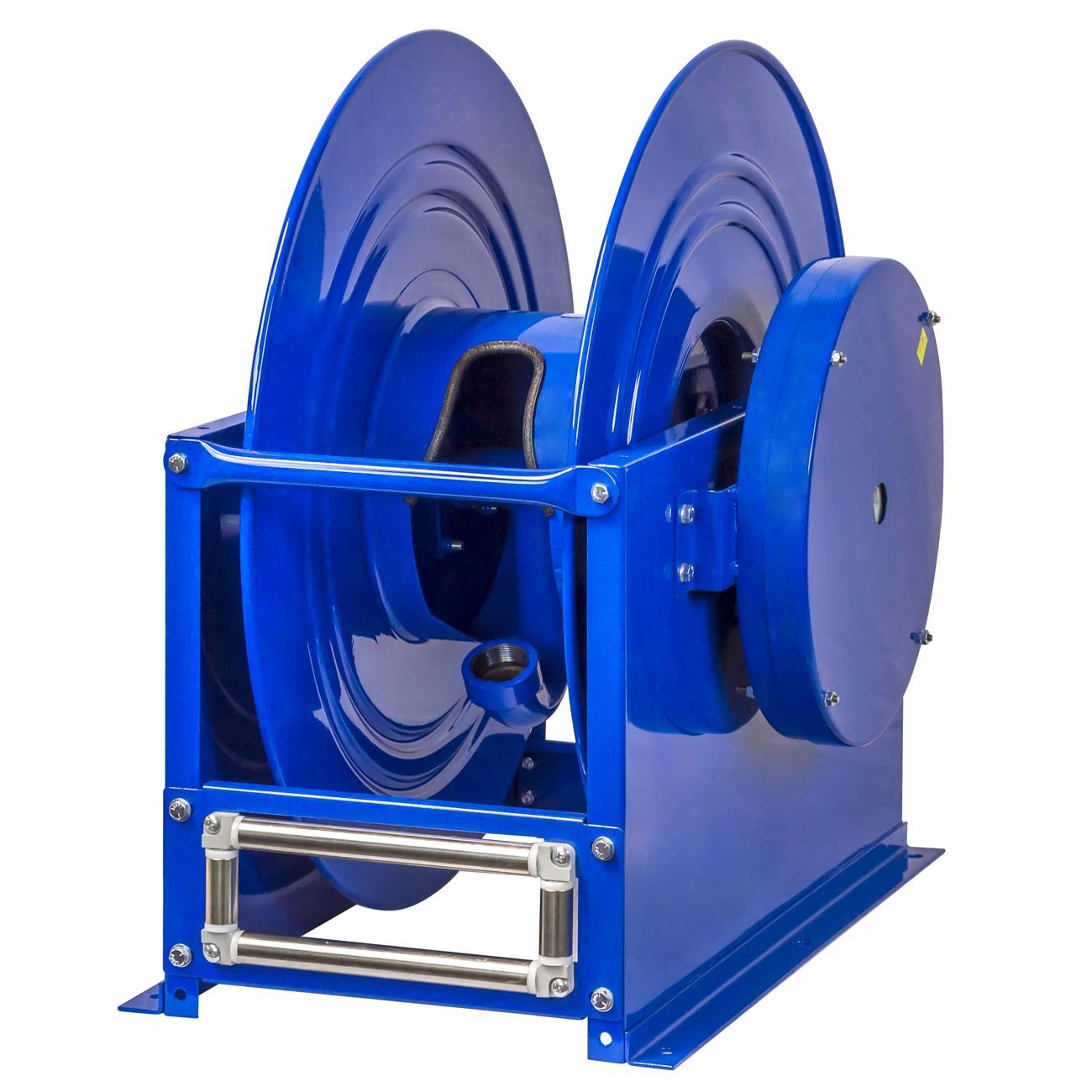

Coxreels SLPL-625 Spring Driven Hose Reel 1 Inch Id 25 Ft

Product Description

The COXREELS SLPL-625 is a spring-driven hose reel from the SP Series, engineered for large-diameter hose in high-volume, low-to-medium pressure delivery applications. It accepts hose with a 1-inch inner diameter and 1.5-inch outer diameter, accommodating up to 25 feet of hose. The reel weighs 142 pounds and is built around a box-style steel frame with heavy-duty cross supports at all four corners. Licensed HVAC technicians, plumbers, and fuel-system service professionals install this reel in fixed and mobile delivery setups where reliable retraction and corrosion resistance are critical.

The SLPL-625 is suited for fuel dispensing and water delivery in both residential and commercial service environments. Its robust construction handles the stresses of repeated daily cycling in shop, fleet, and field applications. The spring-driven retraction mechanism keeps hose organized and off the floor, reducing trip hazards and hose wear in high-traffic service bays or equipment rooms.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and fully removable for maintenance without special tooling
• Machined zinc-plated steel 90-degree full-flow NPT swivel rated for fuel dispensing applications
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof rollers protect hose during retraction and extension
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated precision bearings require no field greasing

Compatibility

Designed as an OEM-style fit for large-diameter hose delivery systems requiring a 1-inch ID, 1.5-inch OD hose path up to 25 feet in low-to-medium pressure fuel and water applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel or fluid delivery systems and applicable local codes. Shut off all fluid supply and relieve hose pressure before mounting or servicing the reel. Secure the unit to a structurally sound surface using fasteners appropriate for the mounting substrate. Verify that all NPT swivel connections are properly sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.5 inches
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Swivel Material: Zinc-plated steel
• Swivel Type: 90-degree full-flow NPT
• Roller Material: Stainless steel
• Frame Construction: Reinforced steel, box-style
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 142 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-625
