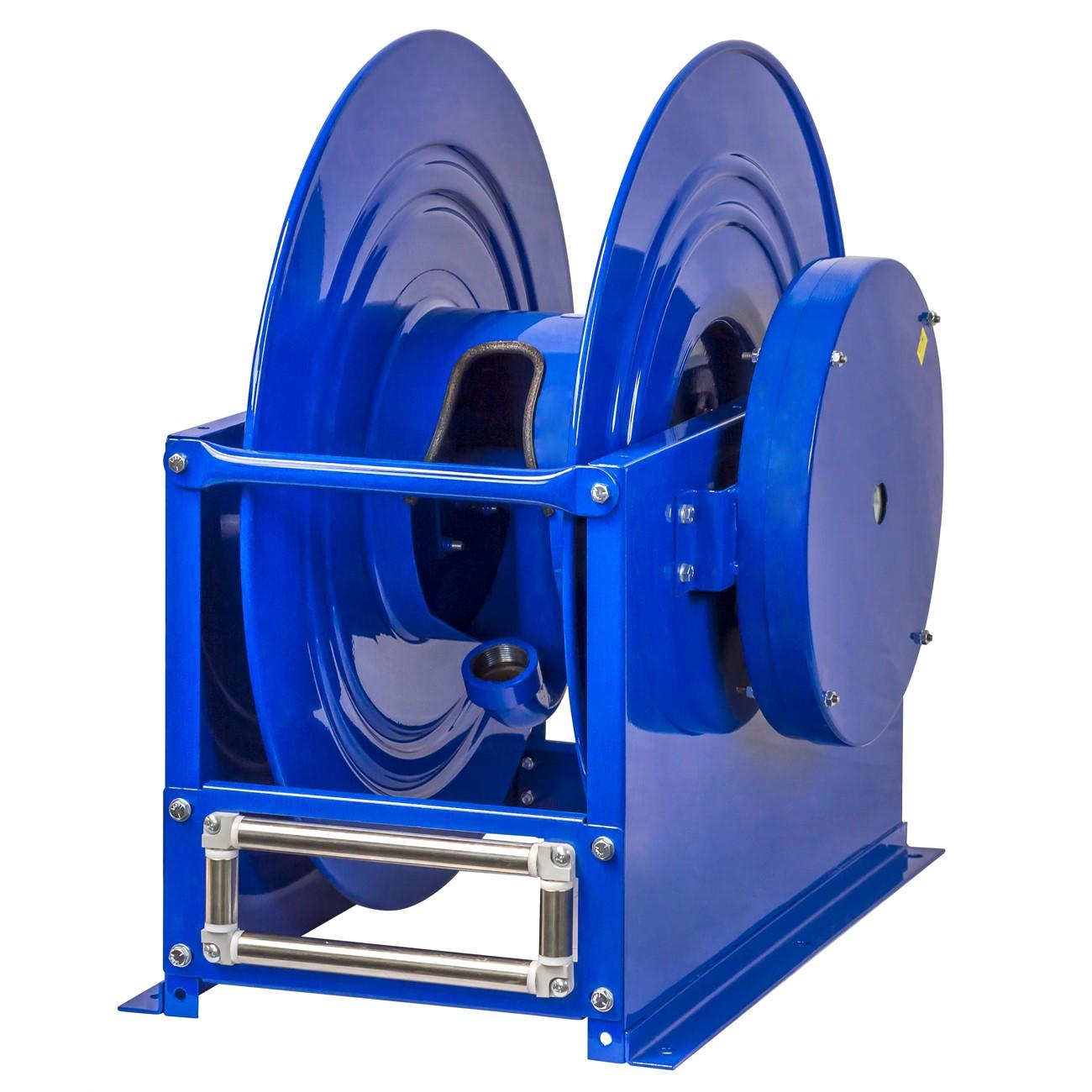

Coxreels SLPL-550 Spring Driven Hose Reel 3/4 in 50 Ft

Product Description

The COXREELS SLPL-550 is a spring-driven hose reel from the SP Series, engineered for large-volume delivery in low- and medium-pressure applications. Built on a box-style steel frame with heavy-duty cross supports at all four corners, this reel handles large hose diameters with consistent retraction force. The 3/4 inch ID, 1-1/16 inch OD hose path accommodates up to 50 feet of hose, making it a reliable choice for fuel dispensing and water delivery in demanding service environments. Licensed HVAC technicians, plumbers, and fleet service professionals are the typical end users.

The SLPL-550 is suited for commercial and industrial applications where high-volume, low-to-medium-pressure fluid delivery is required. Common installations include fuel dispensing stations, wash bays, agricultural service operations, and industrial maintenance shops. The spring-driven retraction mechanism keeps hose organized and off the floor between uses, reducing trip hazards and wear. Its 107-pound steel construction and reinforced frame make it appropriate for fixed wall or floor mounting in high-cycle service environments.

Key Features

• Box-style reinforced steel frame with heavy-duty cross supports to all four corners for maximum rigidity
• Machined solid brass 90-degree full-flow NPT swivel designed for fuel dispensing service
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without special tools
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• 1 inch stainless steel pinch-proof rollers protect hose during retraction
• CPC powder coat finish resists chipping, rust, and chemical exposure in shop environments

Compatibility

Designed as an OEM-style spring-driven reel for low- and medium-pressure fuel and water hose applications requiring 3/4 inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified plumber, fluid-handling technician, or industrial maintenance professional. Shut off the fluid supply and depressurize the line completely before connecting or disconnecting hose fittings. Mount to a structurally sound wall or floor surface rated for the combined weight of the reel and fluid-filled hose. Verify that all NPT thread connections are sealed with an approved thread sealant compatible with the fluid being dispensed.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/16 inch
• Hose Capacity: 50 feet
• Length: 33.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 107 pounds
• Material: Steel
• Drive Type: Spring Driven

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-550
