Coxreels SLPL-5100 Spring Driven Hose Reel 3/4 in 100 Ft

Product Description

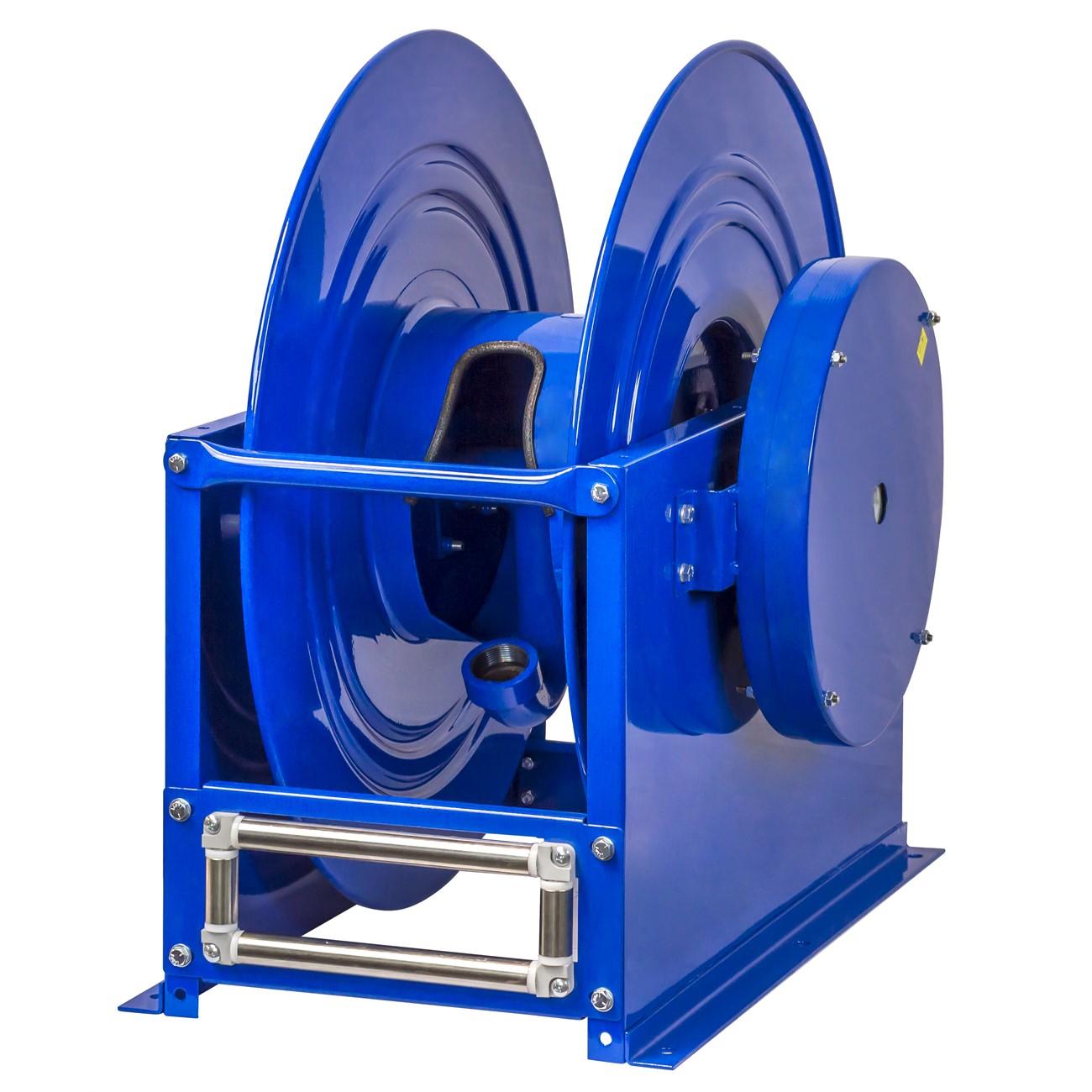

The COXREELS SLPL-5100 is a spring-driven hose reel from the SP Series, engineered for high-volume fuel and water delivery in low- and medium-pressure applications. It accepts hose with a 3/4 inch inner diameter and 1 1/16 inch outer diameter, with a 100 ft hose capacity. The reel is built around a heavy-duty box-style steel frame with cross supports to all four corners, providing rigidity under demanding service conditions. A machined solid brass 90-degree full-flow NPT swivel supports fuel dispensing use. The unit ships at 107 pounds, reflecting the substantial steel construction throughout. Licensed HVAC, plumbing, and industrial service technicians are the primary installers of this equipment.

The SLPL-5100 fits applications requiring large-diameter hose management and high-volume fluid delivery. Typical installations include fuel dispensing stations, commercial wash bays, agricultural water service, and industrial facilities where reliable retraction and controlled hose storage are essential. The spring-driven retraction mechanism eliminates manual rewind, reducing operator fatigue in high-cycle environments. The sturdy frame and heavy-duty roller design make this reel appropriate for both indoor and outdoor service installations.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing applications
• Enclosed, lubricated cartridge-style spring motor is removable for field maintenance without special tools
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof hose rollers for safe hose guidance
• CPC powder coat finish resists chipping, rust, and corrosion for long service life
• Permanently lubricated precision bearings require no routine greasing

Compatibility

Designed for use with hose measuring 3/4 inch inner diameter and 1 1/16 inch outer diameter up to 100 ft in length, suitable for low- and medium-pressure fuel and water delivery service lines.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling and hose reel mounting requirements. Before servicing or mounting, ensure all fluid supply lines are shut off and depressurized. Secure the reel to a structurally sound mounting surface using hardware appropriate for the load rating of the unit. Follow all applicable local codes and manufacturer guidelines for fuel dispensing or plumbing connections at the inlet swivel.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1 1/16 inch
• Hose Capacity: 100 ft
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 107 pounds
• UPC: 674255819771

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-5100
