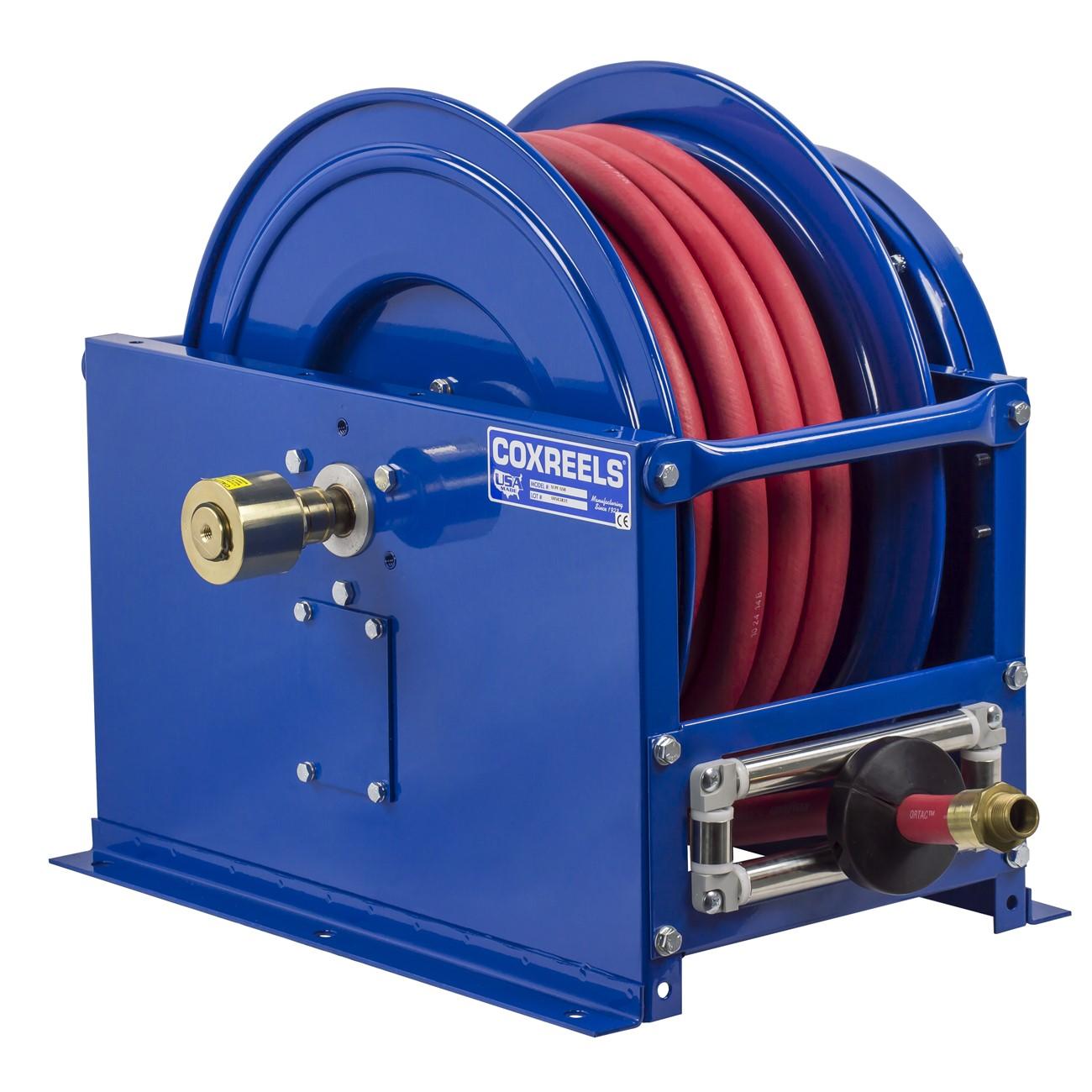

Coxreels SLPF-675 Spring Driven Fuel Hose Reel 75 Ft

Product Description

The COXREELS SLPF-675 is a spring-driven fuel hose reel from the SP Series, engineered for large-volume fuel dispensing in low- and medium-pressure applications. It accepts hose with a 1-inch inner diameter and 1.5-inch outer diameter, with a 75-foot hose capacity. The box-style steel frame features heavy-duty cross supports extending to all four corners, delivering the structural rigidity needed for demanding shop, fleet, and fueling station environments. A permanently lubricated cartridge-style spring motor powers automatic retraction. Licensed HVAC, plumbing, and fleet service technicians rely on this reel for consistent, hands-free hose management during fuel transfer operations.

The SLPF-675 is suited for fuel dispensing in commercial and industrial settings where large hose diameters and reliable retraction are required. Typical installations include fleet maintenance facilities, bulk fuel storage sites, agricultural fueling stations, and service garages. The reel handles fuels and other compatible fluids delivered at low to medium pressures. Its sturdy, reinforced frame makes it appropriate for both fixed wall or ceiling mounting and portable cart configurations where the application allows.

Key Features

• Spring-driven cartridge motor with enclosed lubrication for easy removal and maintenance
• Machined zinc-plated steel 90-degree full-flow NPT swivel designed for fuel dispensing service
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1-inch stainless steel pinch-proof hose rollers
• CPC powder coat finish that is chip-resistant and rust-inhibiting, plus an adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for fuel dispensing applications requiring 1-inch ID hose up to 75 feet in length at low to medium operating pressures.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel handling equipment and applicable fire and safety codes. Shut off all fuel supply lines and relieve system pressure completely before mounting or servicing the reel. Ensure the mounting surface and fasteners are rated for the combined weight of the reel and a full hose load. Follow all local fire codes and NFPA guidelines governing fuel dispensing equipment installation.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.5 inches
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Zinc-plated steel
• Swivel Type: 90-degree full-flow NPT
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 29 inches
• Weight: 142 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-675
