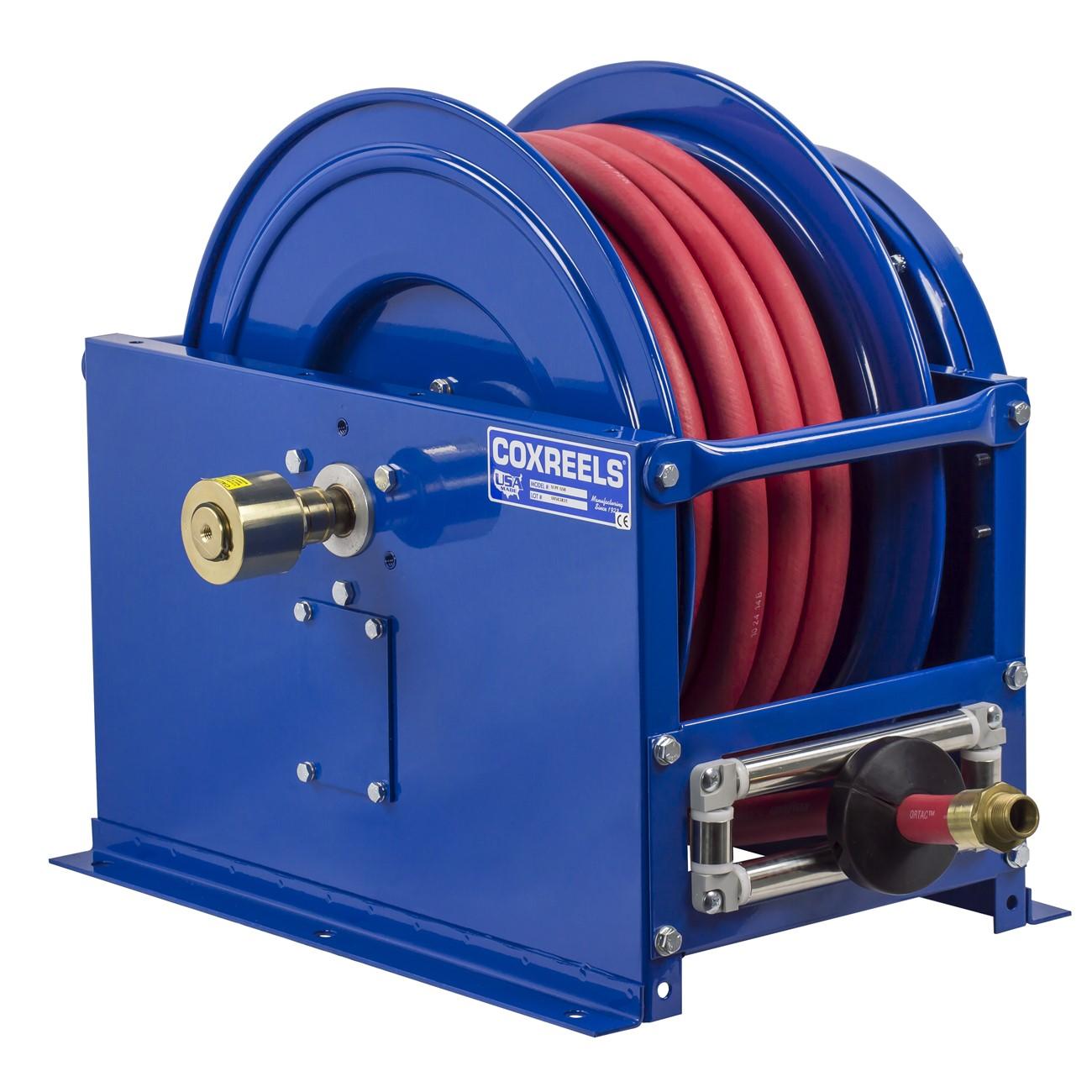

Coxreels SLPF-650 Spring Driven Fuel Hose Reel 1 in 50 Ft

Product Description

The COXREELS SLPF-650 is a spring-driven hose reel from the SP Series, engineered for large-volume fuel and water delivery in low- to medium-pressure applications. It accepts hose with a 1 inch inner diameter and 1.5 inch outer diameter, with a 50-foot hose length capacity. The box-style steel frame features heavy-duty cross supports at all four corners, giving the unit the rigidity needed for demanding service environments. A permanently lubricated precision bearing system keeps operation smooth over long service cycles. Licensed HVAC, plumbing, and fuel-system technicians install this reel in commercial and industrial settings where reliable hose retraction and large-diameter hose management are required.

The SLPF-650 is suited for fuel dispensing operations, bulk water delivery, and other high-flow, low-to-medium pressure service points. Its spring-driven retraction eliminates the need for electrical power at the reel, making it practical for mobile equipment bays, fleet service stations, and fixed fuel islands. The adjustable solid rubber hose stop and chip-resistant powder coat finish support durability in environments with heavy daily use. Technicians working in vehicle service, agricultural fueling, and light industrial maintenance will find this reel sized appropriately for standard fuel delivery hose assemblies.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without special tools
• 90-degree full-flow NPT swivel machined from zinc-plated steel, rated for fuel dispensing service
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with heavy-duty cross supports to all four corners
• 1 inch stainless steel pinch-proof hose guide rollers
• CPC powder coat finish resists chips, rust, and chemical exposure in fuel service environments

Compatibility

Designed for use with fuel dispensing hose assemblies having a 1 inch inner diameter and 1.5 inch outer diameter, up to 50 feet in length, in low- to medium-pressure fuel and water delivery applications.

Installation Notes

Installation is typically performed by a qualified fuel-system or plumbing technician. Shut off the fuel supply and relieve line pressure completely before connecting or disconnecting hose fittings. Ensure all NPT thread connections are sealed with appropriate fuel-compatible thread sealant and comply with applicable local fire and mechanical codes. Do not exceed the hose reel rated pressure range for the hose and fittings being used.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.5 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Material: Zinc-plated steel
• Swivel Type: 90-degree full-flow NPT
• Frame Style: Box-style reinforced steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 142 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-650
