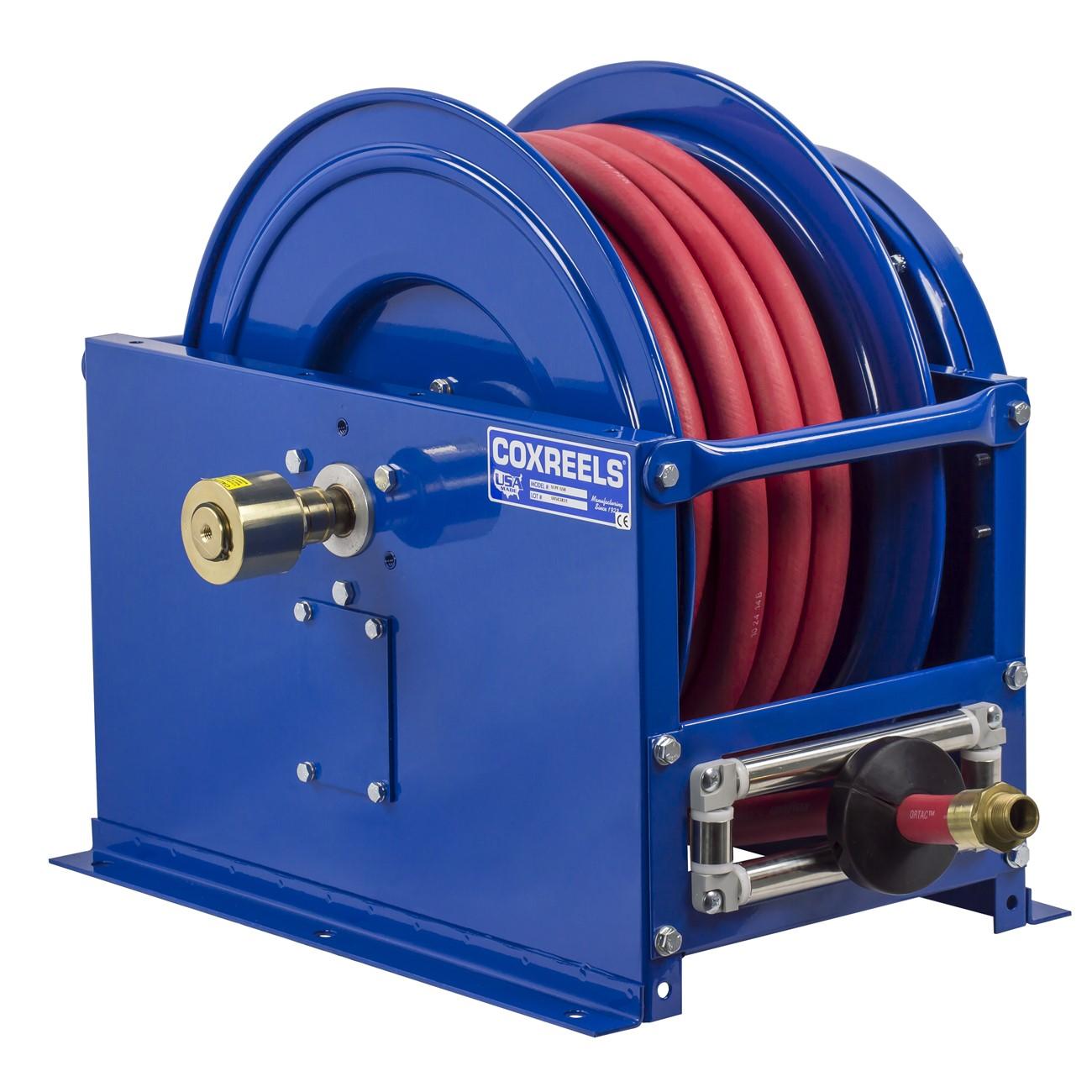

Coxreels SLPF-575 Spring Driven Fuel Hose Reel 3/4 in 75 Ft

Product Description

The COXREELS SLPF-575 is a spring-driven hose reel from the SP Series, engineered for single-product fuel delivery in low- and medium-pressure applications. It accepts hose with a 3/4 inch inner diameter and 1-3/16 inch outer diameter, with a 75-foot hose length capacity. The box-style steel frame uses heavy-duty cross supports to all four corners, providing the rigidity needed for demanding service environments. A permanently lubricated, enclosed cartridge-style motor drives retraction and can be removed without disassembling the reel. Licensed trades and fuel service technicians working with diesel, gasoline transfer, and water delivery rely on this reel for high-volume dispensing tasks.

The SLPF-575 is suited for commercial and industrial fuel dispensing stations, fleet maintenance facilities, and service bays where large-diameter hose and reliable spring retraction are required. The CPC powder coat finish resists chips and rust, making it appropriate for shop floors and outdoor covered service areas. The reel ships as a single unit and accommodates the full 75-foot hose run without sacrificing retraction force.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing applications
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof hose rollers
• Adjustable solid rubber hose stop and chip-resistant, rust-inhibiting CPC powder coat finish

Compatibility

Designed as an OEM-style spring-driven reel for large-diameter fuel and water hose applications requiring low- to medium-pressure single-product delivery.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel dispensing equipment and applicable local codes. Shut off and depressurize the fuel supply line completely before mounting or connecting the reel. Secure the reel to a structurally sound surface using hardware appropriate for the mounting substrate and the reel weight. Verify all NPT swivel and inlet connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-3/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 107 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-575
