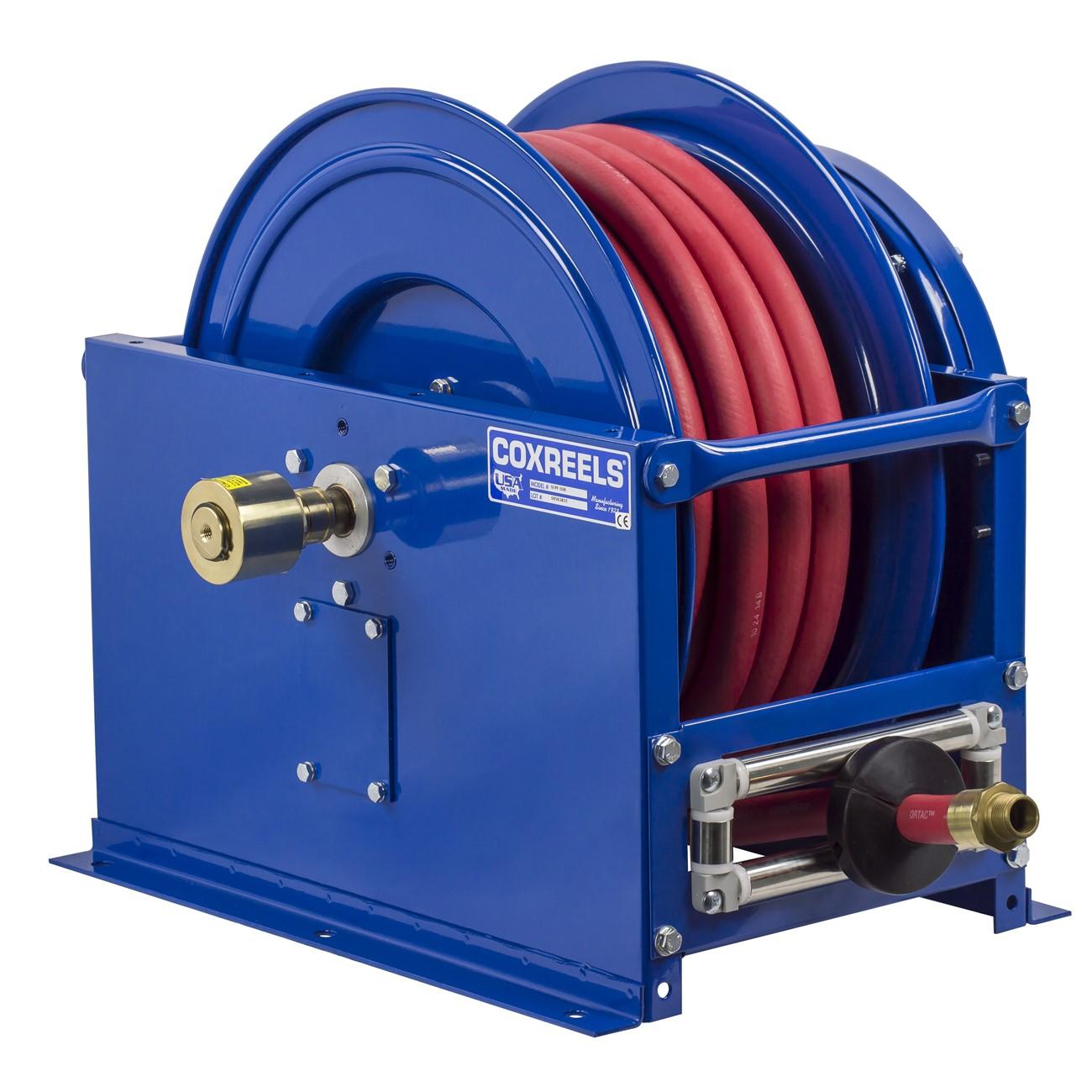

Coxreels SLPF-550 Spring Driven Fuel Hose Reel 50 Ft

Product Description

The COXREELS SLPF-550 is a spring-driven hose reel from the SP Series, engineered for high-volume fuel dispensing in low- to medium-pressure applications. It accommodates hose with a 3/4 inch inner diameter and 1 3/16 inch outer diameter up to 50 feet in length. The reel is built around a sturdy box-style steel frame with heavy-duty cross supports extending to all four corners, delivering the rigidity needed for demanding fuel service environments. A machined solid brass 90-degree full-flow NPT swivel is fitted for fuel dispensing compatibility. Licensed HVAC and fuel-service technicians as well as fleet maintenance professionals are the primary installers of this unit.

The SLPF-550 is suited for residential and commercial fuel dispensing stations, fleet fueling bays, and industrial service points where large-diameter hose and reliable spring retraction are required. It performs reliably in low- and medium-pressure delivery scenarios involving fuel and water. The enclosed, lubricated cartridge-style motor and precision permanently lubricated bearings make it a practical choice for installations where routine maintenance access needs to be straightforward and service downtime minimal.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel designed for fuel dispensing applications
• Enclosed, lubricated cartridge-style motor is easily removable for safe maintenance access
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof rollers for smooth, safe hose guidance
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed for use with 3/4 inch ID fuel dispensing hose up to 50 feet in length in low- and medium-pressure fuel and water delivery applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel dispensing equipment and applicable local codes. Shut off all fuel supply lines and relieve system pressure before mounting or servicing the reel. Secure the reel to a structurally sound surface using fasteners appropriate for the mounting substrate and load. Verify all NPT swivel and hose connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1 3/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Roller Material: Stainless steel, 1 inch
• Frame Construction: Reinforced steel, box-style with cross supports
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 107 pounds
• UPC: 674255824454

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-550
