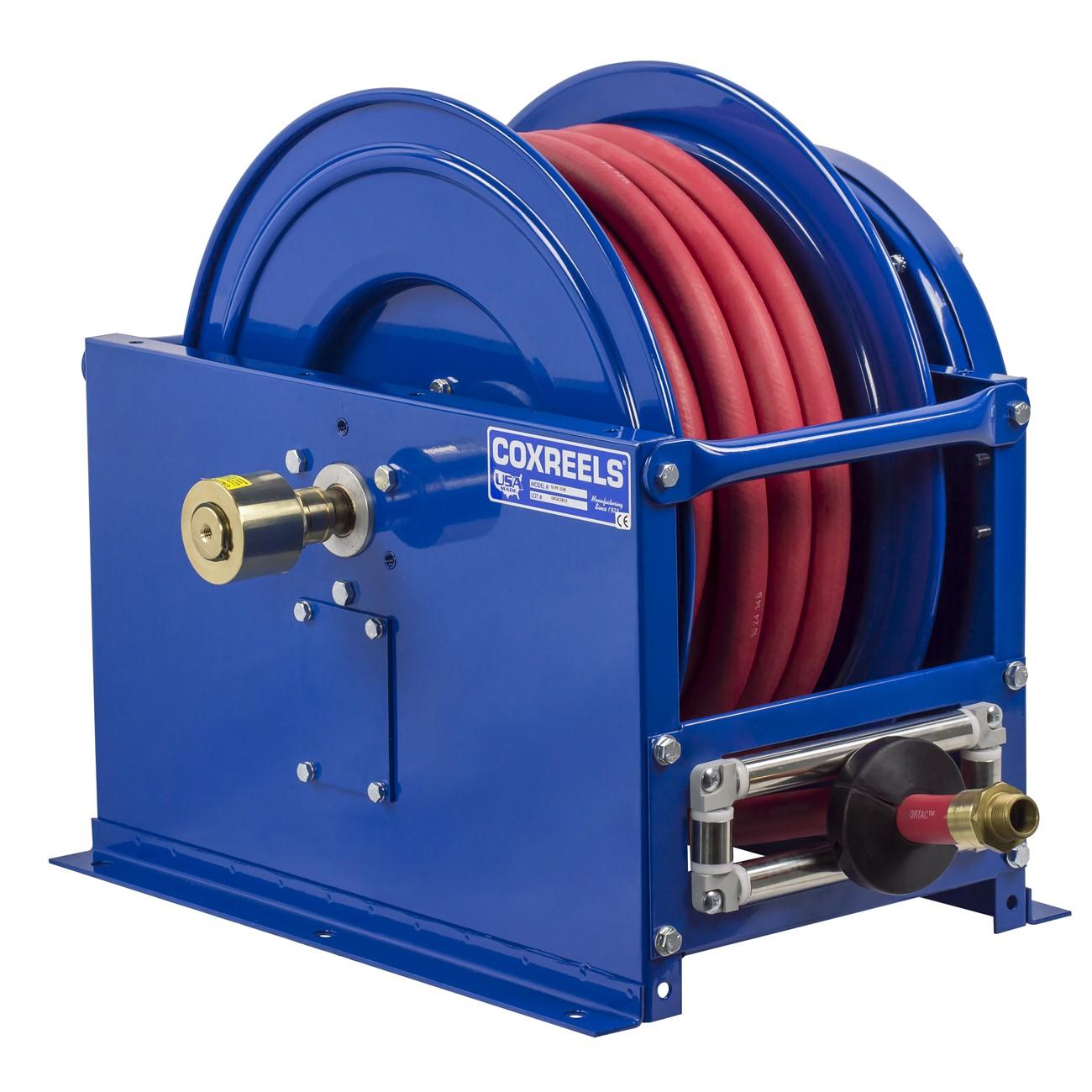

Coxreels SLPF-5100 Spring Driven Fuel Hose Reel 3/4 in 100 Ft

Product Description

The COXREELS SLPF-5100 is a spring-driven hose reel from the SP Series, engineered for large-volume fuel delivery in low- and medium-pressure applications. It accepts hose with a 3/4 inch inner diameter and 1 3/16 inch outer diameter, handling up to 100 feet of fuel dispensing hose. The box-style steel frame features heavy-duty cross supports at all four corners, delivering the structural rigidity required for demanding shop, fleet, and field fuel service environments. A machined solid brass 90-degree full-flow NPT swivel supports fuel dispensing duty. Licensed technicians and fuel equipment service professionals handle installation and commissioning of this unit.

The SLPF-5100 is suited for fleet maintenance facilities, fuel dispensing stations, agricultural operations, and industrial service bays where large-diameter hose and reliable spring retraction are required. It is designed for low- to medium-pressure fuel and water delivery applications where consistent hose management and operator safety are priorities. The enclosed cartridge-style spring motor supports routine maintenance without removing the reel from service.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing service
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof hose rollers
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID fuel dispensing hose up to 100 feet in length; fits standard NPT plumbing connections common to low- and medium-pressure fuel and water delivery systems.

Installation Notes

Installation should be performed by a qualified fuel equipment technician or licensed service professional in accordance with applicable local codes and NFPA guidelines for fuel dispensing systems. Shut off all fuel supply lines and relieve system pressure before mounting or servicing the reel. Ensure the mounting surface and fasteners are rated for the combined weight of the reel and a fully loaded hose. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1 3/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Roller Material: Stainless steel
• Frame Construction: Reinforced steel, box-style with cross supports
• Finish: CPC powder coat, chip and rust resistant
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 107 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-5100
