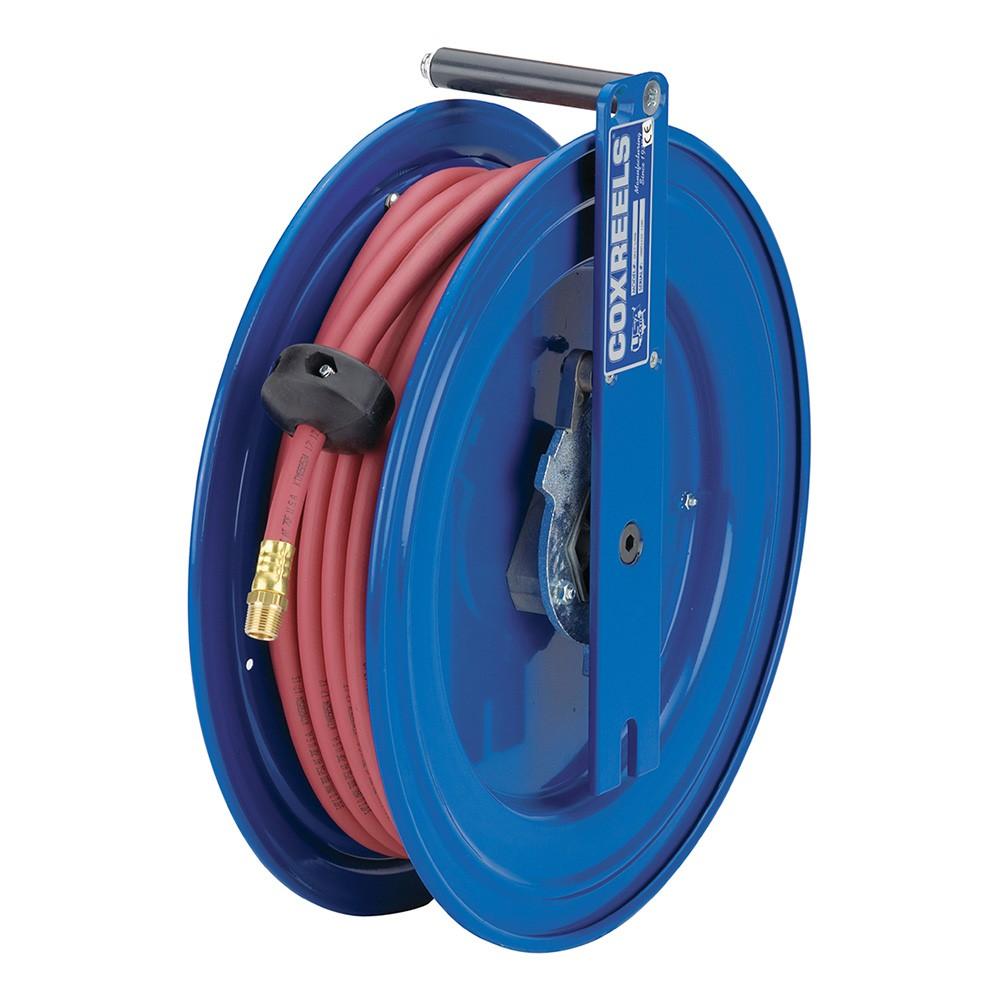

Coxreels SL19L-M350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SL19L-M350 is a spring-driven, side-mount hose reel from the S Series line, designed for compact installation in cabinets, enclosed spaces, and vertical flat surfaces. Built from steel with a CPC powder coat finish, it accepts 3/8-inch ID hose up to 50 feet in length and returns hose automatically via a cartridge-style spring motor. The 360-degree hose direction lets the operator pull hose in any direction the job demands. Licensed trades and fleet service technicians install this reel in fixed or semi-permanent configurations using a simple two-bolt mounting pattern that supports quick detachment between workstations.

The SL19L-M350 fits service bays, tool benches, toolboxes, vehicle lift systems, machine tool stations, and service vehicles. It is suited for air and water lines in residential and light commercial service environments. The two-bolt side-mount design keeps the reel profile low, making it practical for tight cabinet interiors or enclosed utility spaces where conventional reel configurations will not fit.

Key Features

• Spring-driven cartridge motor is enclosed, pre-lubricated, and removable for maintenance without dismounting the reel
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Two-bolt mounting pattern supports fast installation and detachment for multi-workstation use
• Hose control bar prevents hose from slipping off the disc during retraction
• Chip-resistant, rust-inhibiting CPC powder coat finish over steel construction for long service life

Compatibility

Designed as an OEM-style side-mount spring-driven hose reel for air and water service lines in fixed or mobile trade service installations.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or HVAC technician depending on the fluid service. Power down or shut off the supply line before connecting or servicing the hose or swivel. Use appropriate thread sealant on NPT connections and verify fitting torque with a calibrated wrench. Follow applicable OSHA and facility safety guidelines when mounting to vehicle structures or overhead beams.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 36 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL19L-M350
