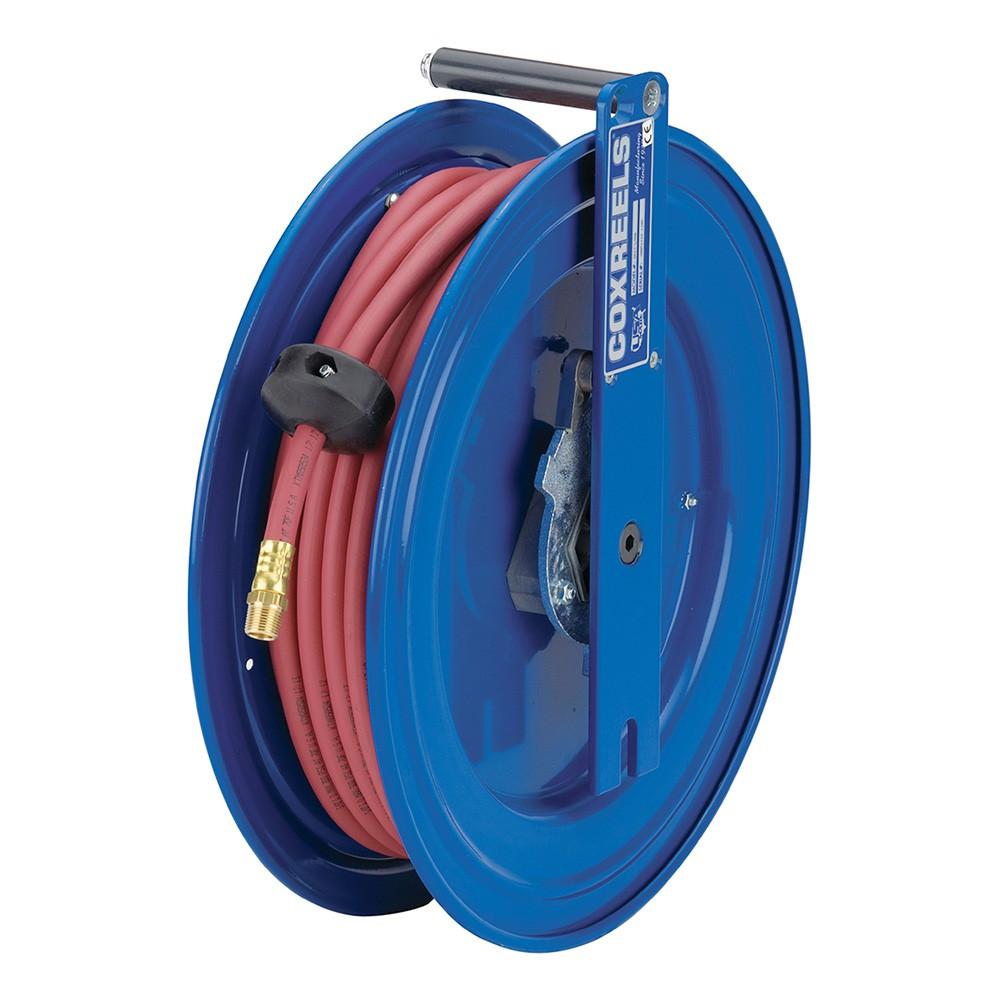

Coxreels SL19L-L450 Spring Driven Hose Reel 50 Ft Steel

Product Description

The COXREELS SL19L-L450 is a spring-driven, side-mount hose reel built for demanding trade and service environments. Part of the S Series lineup, it features a 1/2 inch inner diameter hose path, accepts hose up to 3/4 inch outer diameter, and accommodates 50 feet of hose. The unit is constructed from steel with a CPC powder coat finish that resists chips and rust. A cartridge-style spring motor and permanently lubricated precision bearings keep maintenance intervals low. The 360-degree hose direction allows the reel to pay out in any direction the job requires, making it well suited for fixed and mobile service setups alike.

This reel is designed for use in service units, tool benches, tool boxes, machine tool stations, vehicle lift systems, and service vehicles. It is also appropriate for vertical wall, beam, and cabinet or enclosed-space installations. The S Series configuration supports air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications. A simple two-bolt mounting pattern allows the reel to be installed permanently or detached quickly for multi-workstation use. It ships as a single unit intended for professional installation by qualified service technicians or mechanics.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service in place
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection
• Two-bolt side-mount pattern supports quick installation and detachment for temporary or permanent use
• Hose control bar prevents hose from riding off the disc during retraction
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition

Compatibility

The SL19L-L450 is an S Series side-mount spring-driven reel compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose in 1/2 inch ID configuration up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic, service technician, or industrial maintenance professional. Power down or depressurize the supply line before connecting hose and swivel fittings. Use appropriate thread sealant on NPT connections and verify joint integrity before returning the line to service. Mounting surface must be capable of supporting the reel weight plus the loaded hose assembly.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 29 pounds
• Material: Steel
• Finish: CPC powder coat
• Swivel Material: Solid brass
• UPC: 674255735613

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL19L-L450
