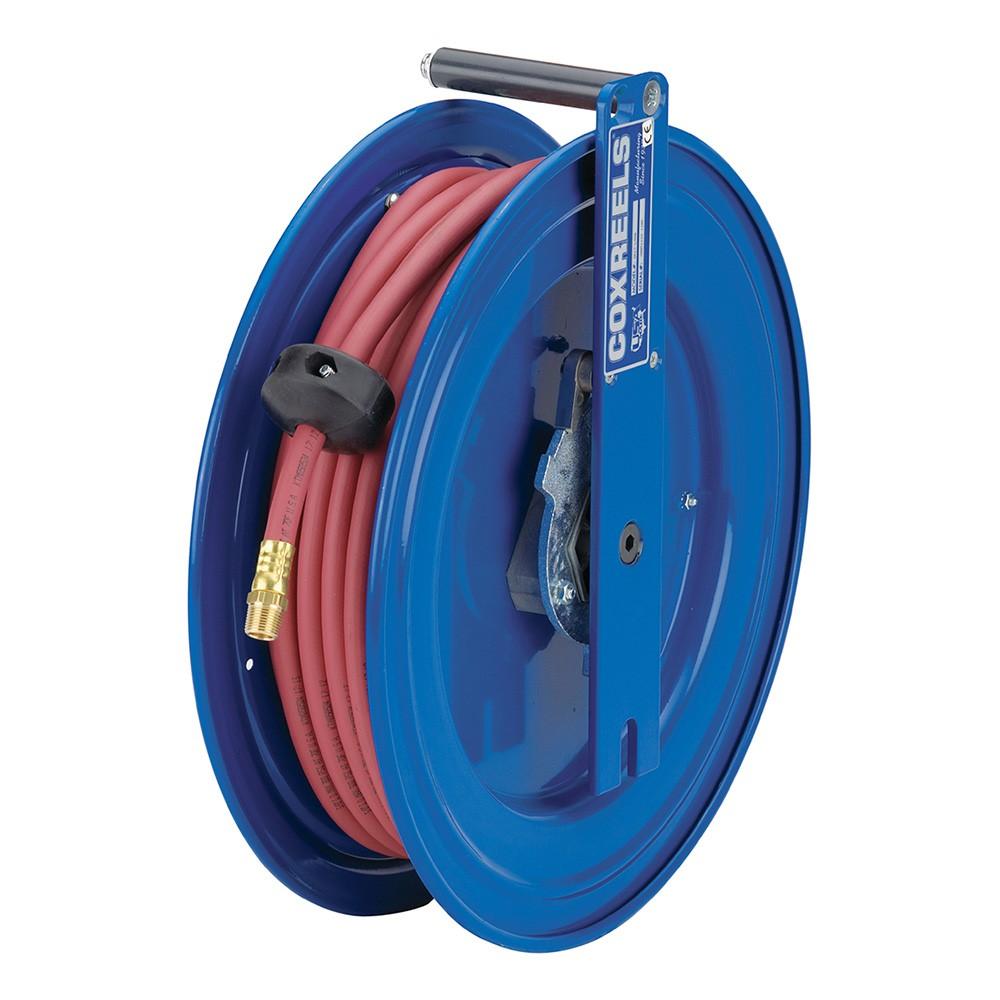

Coxreels SL19-M450 Spring Drive Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS SL19-M450 is a spring-driven hose reel from the S Series, designed for cabinet and enclosed-space side mounting in professional trade environments. It accommodates 1/2 inch ID hose up to 50 feet in length and features a 360-degree hose direction range, allowing operation in any direction the job demands. The reel uses a two-bolt mounting pattern for fast installation and removal across multiple workstations. CNC robotically spun and ribbed discs with rolled edges provide structural strength and hose protection. A permanently lubricated, enclosed cartridge-style motor keeps maintenance simple and safe. Licensed HVAC technicians, plumbers, fleet mechanics, and service vehicle operators are the primary installers.

The SL19-M450 is suited for service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, and service vehicles. It handles air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose, making it a versatile choice across multiple trade applications. The compact side-mount profile fits inside cabinets and enclosed spaces where floor or ceiling-mount reels will not work. The 360-degree guide arm allows the hose to be routed in any direction without restricting workflow at the workstation.

Key Features

• Spring-driven retraction with 360-degree hose direction for unrestricted operation
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance and hose installation without removing the reel from its mount
• Lubricated and enclosed cartridge-style motor is easily removable for safe maintenance
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Two-bolt side-mount pattern supports fast attachment and detachment for temporary or permanent installation on vertical flat surfaces, cabinets, or enclosed spaces
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as a direct-fit S Series spring-driven hose reel for professional service applications requiring cabinet or side-mount installation with 1/2 inch ID hose and 50 feet of capacity across air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose service.

Installation Notes

Installation is performed by qualified mechanics, service technicians, or tradespeople familiar with pressurized hose systems. Depressurize and drain the supply line completely before mounting or connecting hose. Secure the reel using the two-bolt pattern to a structurally sound vertical surface rated for the combined weight of the reel and hose under load. Verify that all NPT swivel connections are sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Max Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount, 2-bolt pattern
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC chip-resistant, rust-inhibiting powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL19-M450
