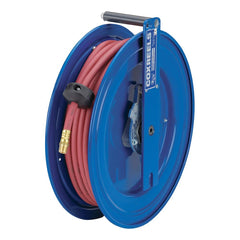

Coxreels SL19-H350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SL19-H350 is a spring-driven hose reel from the S Series line, designed for compact side-mount and cabinet-mount installations. The reel accepts 3/8-inch ID, 5/8-inch OD hose up to 50 feet in length and returns hose automatically via an enclosed cartridge-style spring motor. The unit ships as a single piece weighing 48 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Service technicians and shop mechanics install this reel in fixed or mobile work environments where a low-profile, space-saving reel mount is required. The S Series is rated for air, water, oil, grease, and oxy-acetylene or T Grade gas welding hose applications.

The SL19-H350 fits a wide range of trade and light industrial settings. Common install locations include service unit bodies, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tool stations, and service vehicles. The 360-degree hose direction allows the operator to route hose in any direction the job demands. Its two-bolt mounting pattern makes it practical for both permanent installations and temporary multi-workstation setups where the reel needs to be detached and moved between positions.

Key Features

• Enclosed cartridge-style spring motor is lubricated and easily removable for maintenance without disassembling the unit
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Two-bolt side-mount pattern supports vertical flat surfaces, cabinet interiors, and enclosed spaces for permanent or temporary installation
• Hose control bar prevents hose from slipping off the disc during retraction or payout
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

The SL19-H350 is compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose in 3/8-inch ID at lengths up to 50 feet. Designed for service units, tool benches, tool boxes, vehicle lift systems, machine tools, service vehicles, and any flat vertical surface requiring a compact spring-driven reel.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic using standard hand tools. Shut off and depressurize the supply line fully before connecting or disconnecting the reel. Secure the reel to a structurally sound flat vertical surface using the two-bolt mounting pattern and fasteners rated for the application load. Verify that the hose material and fittings are rated for the intended fluid or gas before placing the reel in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 48 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255735590

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL19-H350
