Coxreels SL17W-150 Welding Gas Hose Reel Spring Driven

Product Description

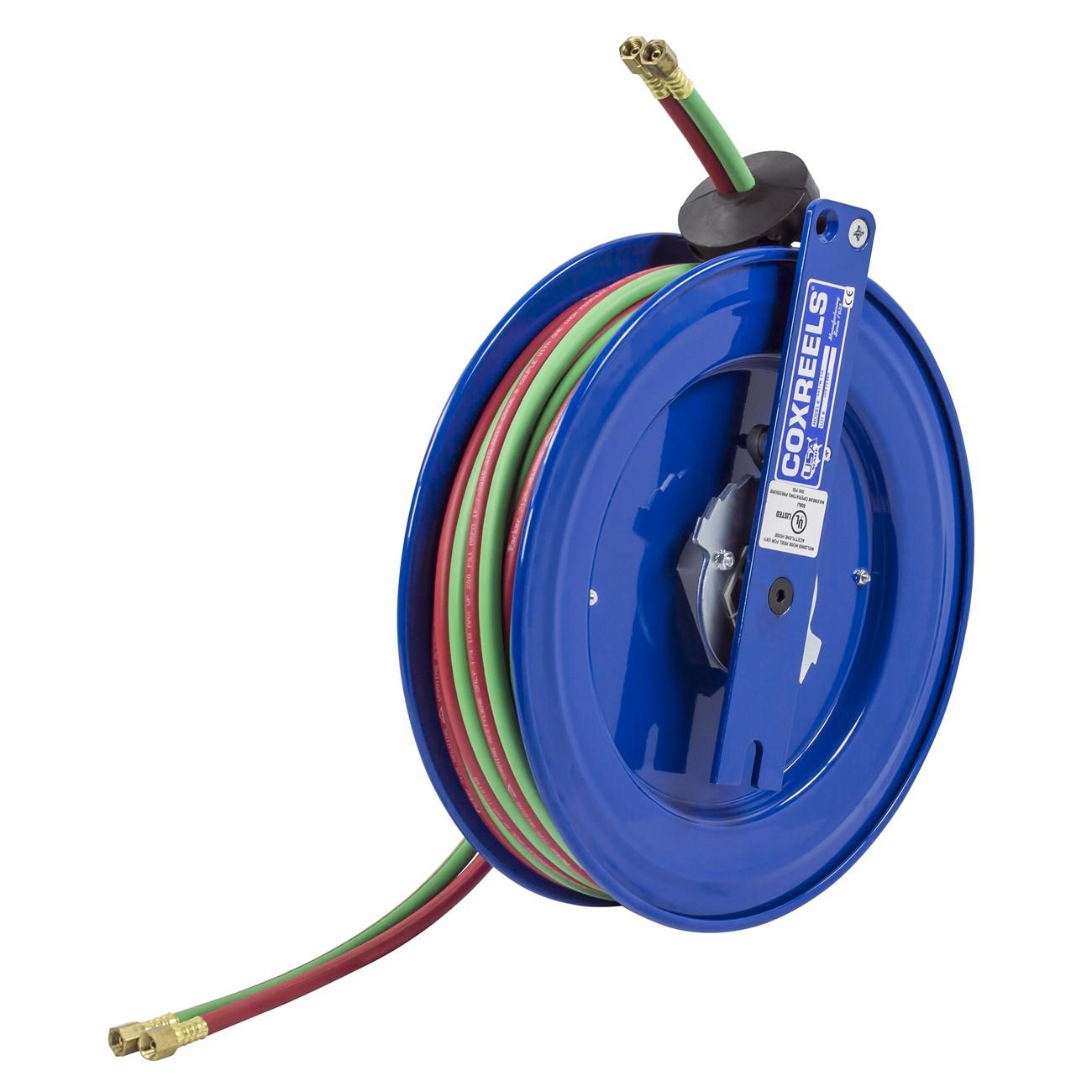

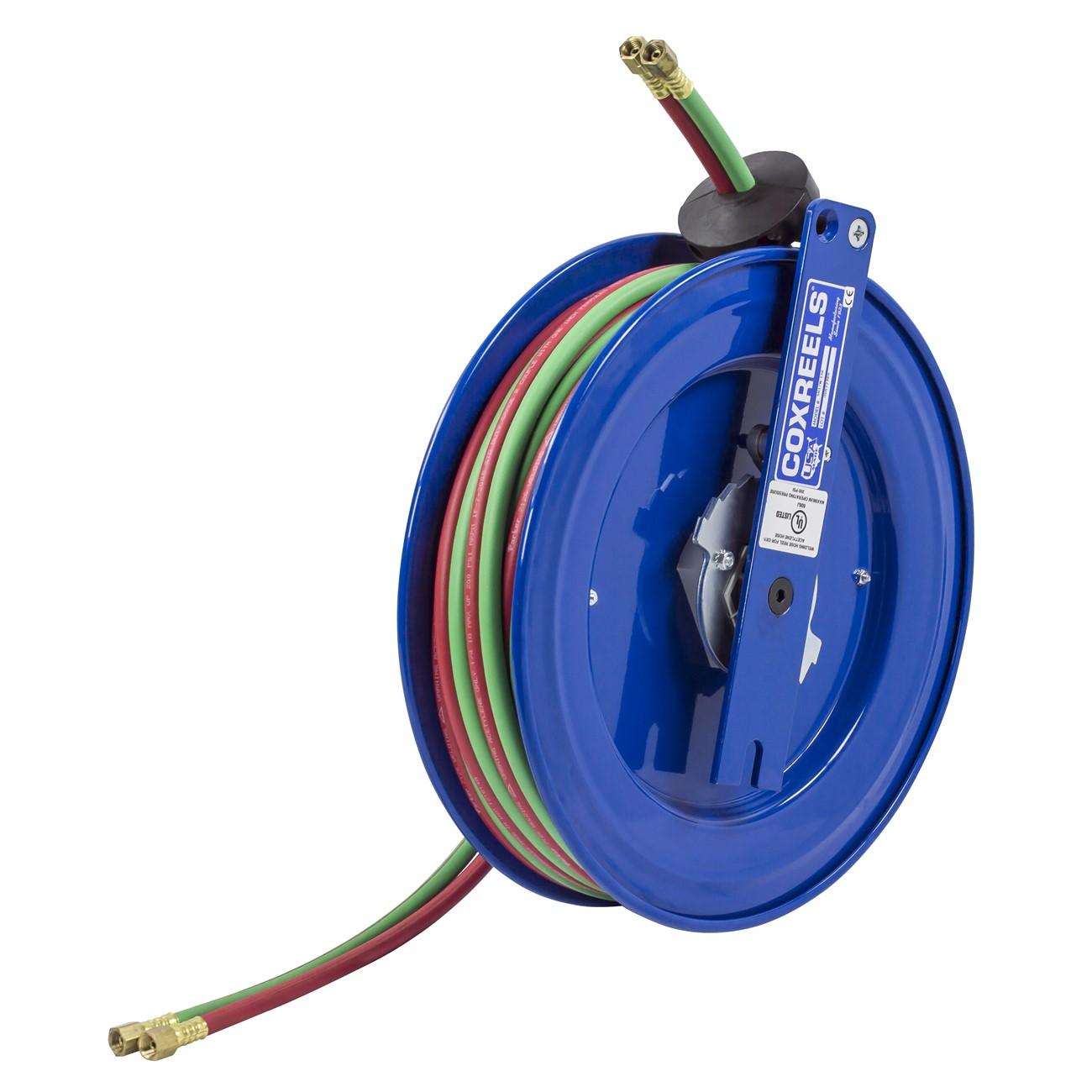

The COXREELS SL17W-150 is a spring-driven, side-mount hose reel built for welding gas applications. Part of the COXREELS S Series, it accepts a 1/4-inch ID, 50-foot oxy-acetylene welding hose and retracts it automatically via an enclosed cartridge-style spring motor. The reel features a dual-ported external 90-degree brass swivel with Viton seals, allowing both supply and outlet connections from the same side without removing the reel from its mount. The body is fabricated from steel with a CPC powder coat finish for chip and rust resistance. Licensed welding equipment technicians and service vehicle outfitters are the typical installers.

This reel is designed for professional environments where reliable, space-efficient hose management is required for oxy-acetylene or T-grade welding gas service. The side-mount, two-bolt pattern makes it a practical fit for cabinet interiors, vertical walls, beams, service vehicles, tool benches, tool boxes, and vehicle lift systems. The 360-degree hose direction capability allows the operator to work from any angle without repositioning the reel. It is equally suited to permanent fixed installations and temporary multi-workstation setups where the reel is regularly moved between stations.

Key Features

• External 90-degree dual-ported brass swivel with Viton seals — both connections accessible from one side, no dismounting required
• Enclosed cartridge-style spring motor is fully lubricated and removable for maintenance without special tooling
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Two-bolt side-mount pattern supports quick attachment and detachment for temporary or permanent installation
• Hose control bar keeps hose tracking properly on the disc and prevents slippage
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct-fit unit for oxy-acetylene and T-grade welding gas hose systems in service, industrial, and vehicle-mounted applications.

Installation Notes

Installation is performed by qualified welding equipment technicians or trained service personnel familiar with compressed gas plumbing. Shut off all gas supply valves and bleed residual pressure from the hose before mounting or connecting the reel. The two-bolt side-mount pattern requires a flat vertical surface capable of supporting the reel weight. Follow applicable compressed gas handling codes and the reel manufacturer instructions when making swivel connections to ensure leak-free joints.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Mount Style: Side mount, 2-bolt pattern
• Material: Steel with CPC powder coat finish
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds
• UPC: 674255735392

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL17W-150
