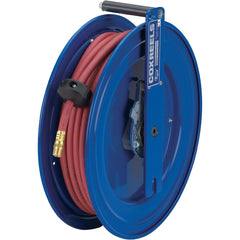

Coxreels SL15L-L325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS SL15L-L325 is an S Series spring-driven hose reel designed for side mount and cabinet mount applications. Built from steel with a CPC powder coat finish, it accommodates 3/8 inch ID, 5/8 inch OD hose up to 25 feet. The spring-driven cartridge motor automatically retracts the hose after use. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. The two-bolt mounting pattern supports quick installation and detachment, making it practical for multi-workstation environments. Licensed HVAC techs, plumbers, and general service technicians are the typical installers.

The SL15L-L325 is suited for service units, tool benches, tool boxes, vertical walls, beams, vehicle lift systems, machine tools, and service vehicles. It supports air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications. The 360-degree hose direction capability allows the operator to pull hose in any direction the job requires. Its compact side mount design fits enclosed spaces and cabinet interiors where larger reels cannot be used.

Key Features

• Spring-driven cartridge motor with enclosed lubrication for automatic hose retraction and easy removal for maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Two-bolt side mount pattern for fast permanent or temporary installation on flat vertical surfaces, cabinets, or enclosed spaces
• Hose control bar prevents hose from slipping off the disc during operation
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 25 feet in length. Compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose as part of the COXREELS S Series side mount reel line.

Installation Notes

Installation is performed by service technicians or maintenance professionals using standard hand tools. Shut off and depressurize the fluid or air supply line completely before connecting or disconnecting hose. Follow all applicable workplace safety and equipment guidelines for the specific fluid media being used. Secure both mounting bolts fully before placing the reel into service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length: 25 feet
• Material: Steel
• Swivel Material: Solid Brass
• Mount Type: Side Mount, 2-Bolt Pattern
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 17 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL15L-L325
