Coxreels SHWTL-N-175 Welding Hose Reel 1/4 in 75 Ft Steel

Product Description

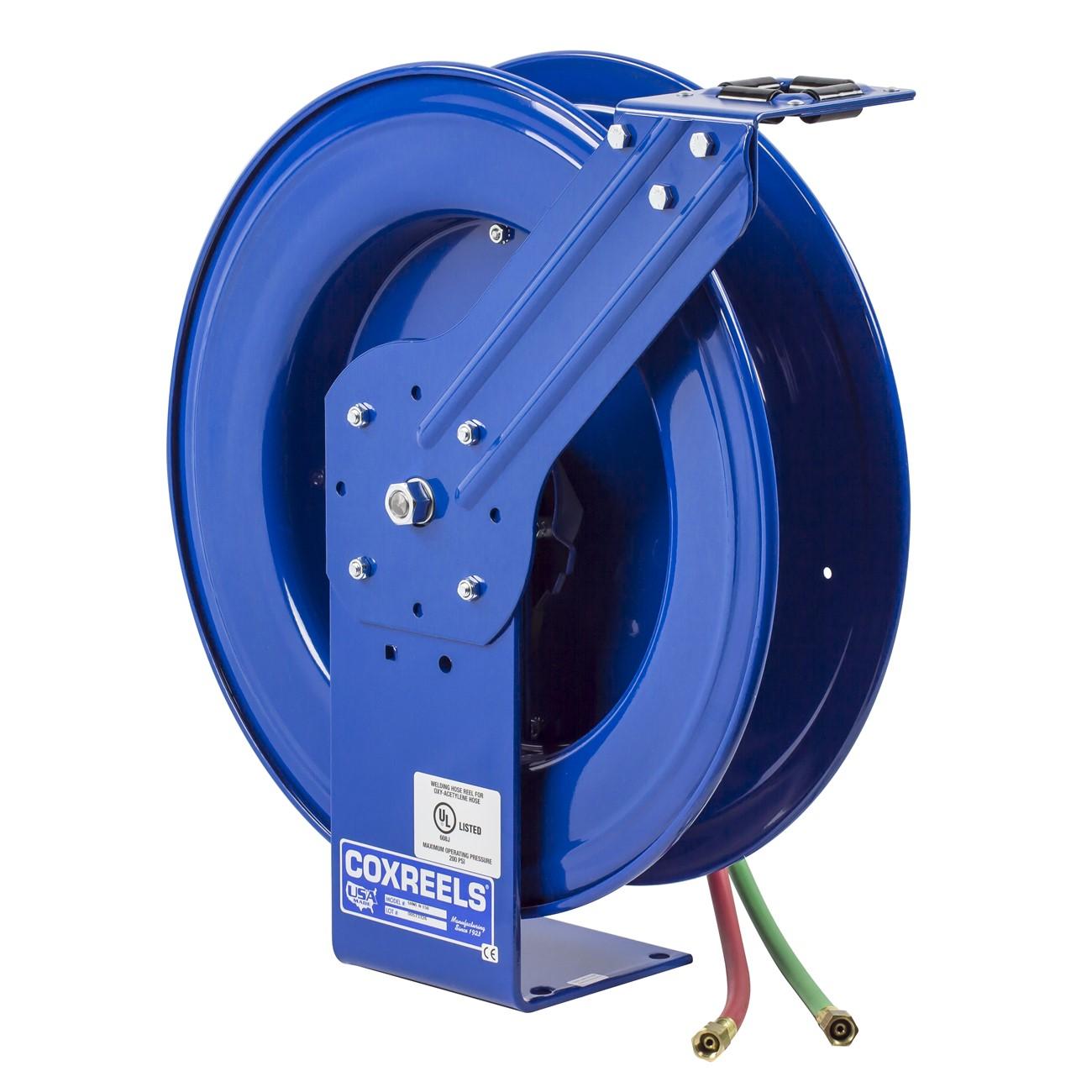

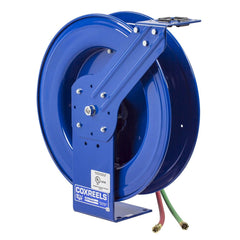

The COXREELS SHWTL-N-175 is a spring-driven welding hose reel from the SHW Series, designed to manage twin-line welding hose in demanding shop and field environments. Built on a larger chassis and frame than the compact P-W Series, this reel accommodates longer hose lengths and integrates Coxreels original Super Hub dual axle support system for increased stability during operation, reduced vibration, and greater structural integrity. It accepts 1/4 inch ID hose up to 75 feet and is constructed with a steel base and CNC robotically spun ribbed discs. Licensed welding professionals and industrial maintenance technicians install this reel in fixed and vehicle-mounted applications.

The SHWTL-N-175 suits commercial and industrial welding stations where twin-line gas hose must be stored, extended, and retracted efficiently. Typical installations include fabrication shops, shipyards, maintenance facilities, and service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making this reel adaptable across a wide range of work environments. The spring-retracting motor keeps hose tidy and off the floor, reducing trip hazards and hose wear.

Key Features

• External 90-degree full-flow dual ported brass welding gas swivel with Viton seals — both connections accessible from the same side of the reel without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe and convenient maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, hose protection, and operator safety
• Solid one-piece steel base and support post with Super Hub dual axle support for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; precision bearings are permanently lubricated

Compatibility

Designed as an OEM-style replacement and direct-fit reel for twin-line welding hose applications requiring a 1/4 inch ID, 75-foot spring-driven reel in the SHW Series configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable safety codes. Shut off all gas supply valves and verify zero pressure at the hose connections before mounting or servicing the reel. Use appropriate hardware for the mounting surface — wall, floor, ceiling, or vehicle — to support the rated load of the unit. Inspect the swivel connections and guide arm fasteners after initial installation and periodically during service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 75 feet
• Drive Type: Spring-driven
• Swivel Type: External 90-degree dual ported brass with Viton seals
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 63 pounds
• UPC: 674255724327

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWTL-N-175
