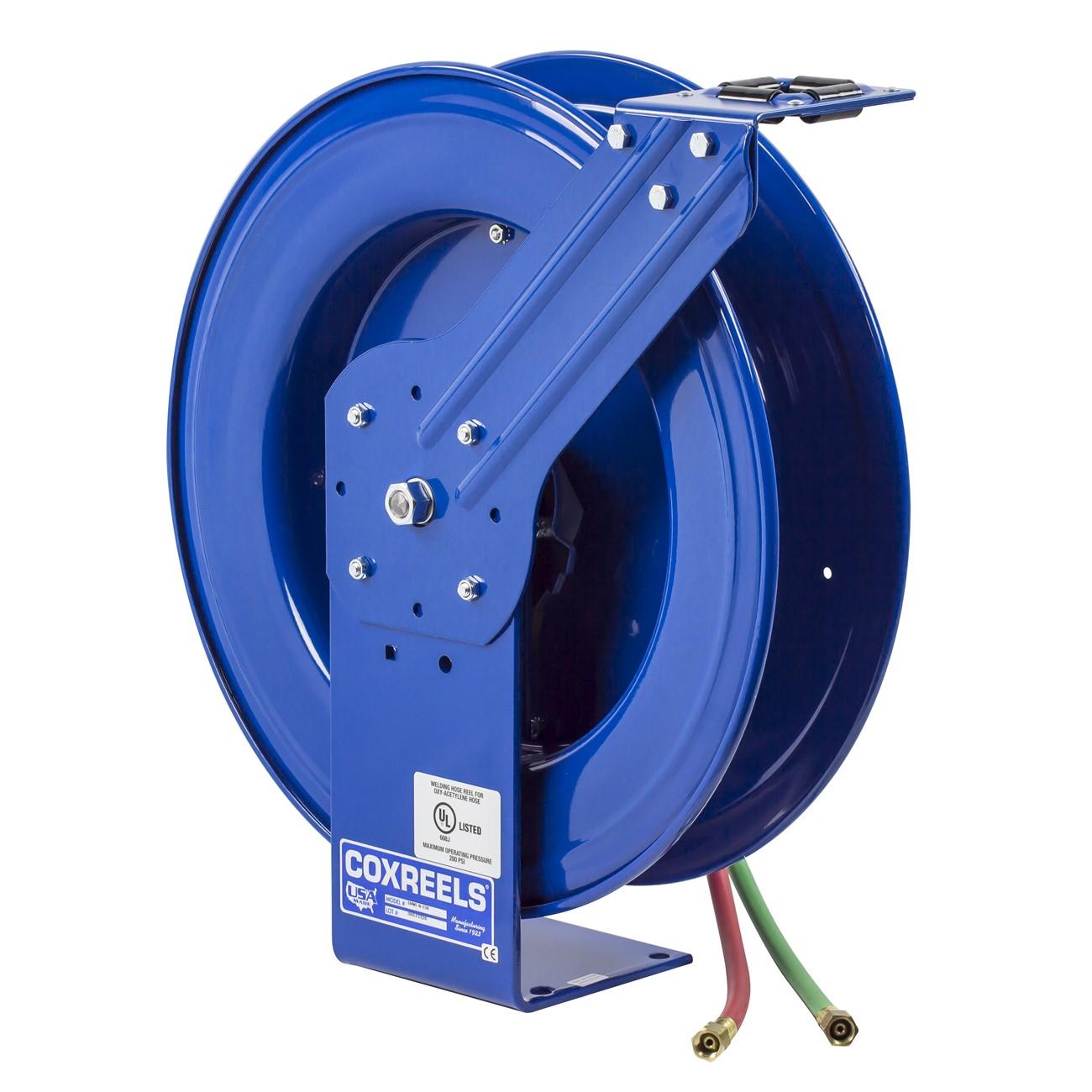

Coxreels SHWTL-N-150 Welding Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS SHWTL-N-150 is a spring-driven welding hose reel from the SHW Series, designed to manage twin-line welding hose in demanding shop and industrial environments. Built on a larger chassis than the compact P-W Series, it features Coxreels original Super Hub dual axle support system for increased stability, reduced vibration, and greater structural integrity during operation. The reel accepts 1/4 inch ID hose up to 50 feet and is constructed of steel throughout. It is installed and serviced by welding professionals, pipefitters, and industrial maintenance technicians who require reliable hose management at a fixed workstation or vehicle-mounted position.

The SHWTL-N-150 is suited for fixed welding stations, fabrication shops, and mobile service rigs where twin-line welding hose must be stored and deployed repeatedly without kinking or tangling. The larger SHW Series frame accommodates longer hose runs compared to the P-W Series, making it a practical choice for high-cycle welding operations that demand consistent hose control. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of facility layouts.

Key Features

• Super Hub dual axle support system reduces vibration and increases structural integrity during reel operation
• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no dismounting required
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges protect hose and operator
• Single-pedestal steel base with one-piece support post — no welds at the base for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed as an OEM-style replacement or direct fitment reel for twin-line welding hose applications requiring 1/4 inch ID hose capacity up to 50 feet.

Installation Notes

Installation should be performed by a qualified welding professional or industrial maintenance technician familiar with compressed gas hose systems. Shut off all gas supply and relieve hose pressure completely before mounting or servicing the reel. Follow applicable OSHA and facility safety codes for compressed gas handling. The multi-position guide arm should be secured in the correct orientation for the chosen mounting surface before the hose is connected and tensioned.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 52 pounds
• Material: Steel
• Finish: CPC powder coat
• UPC: 674255719750

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWTL-N-150
