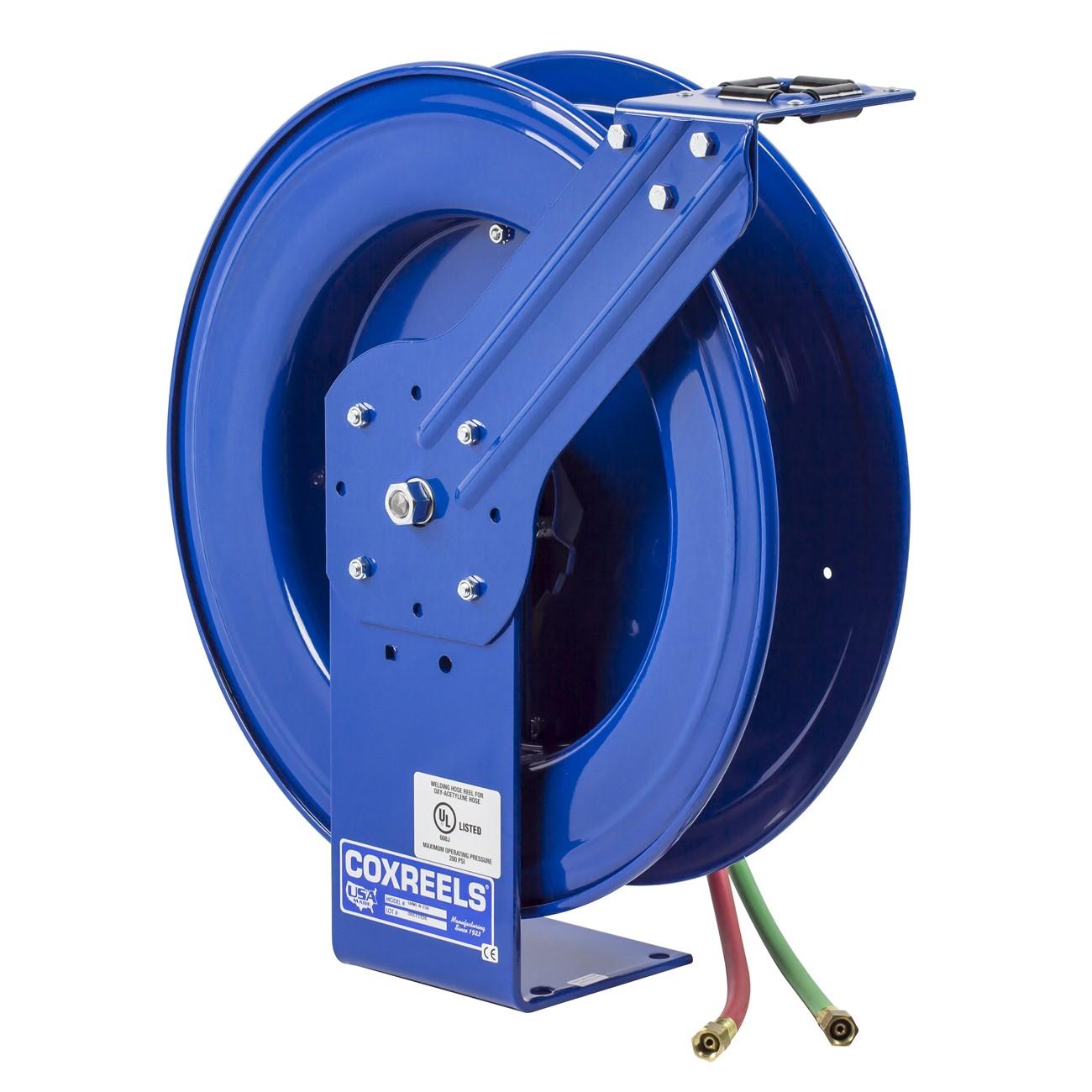

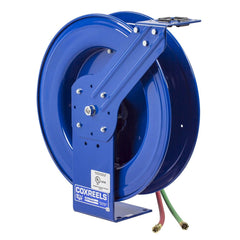

Coxreels SHWTL-N-1100 Welding Hose Reel 1/4 in 100 Ft Steel

Product Description

The COXREELS SHWTL-N-1100 is a spring-driven welding hose reel from the SHW Series, built to manage bulky twin-line welding hose in demanding shop and field environments. It features a 1/4 inch inner diameter with a 100 ft hose capacity and is constructed with a steel base and frame. The larger SHW Series chassis accommodates longer hose lengths and includes Coxreels original Super Hub dual axle support system, which reduces vibration, improves stability during operation, and increases overall structural integrity. Licensed welding professionals and industrial maintenance techs are the primary installers of this unit.

The SHWTL-N-1100 is designed for industrial and commercial welding applications where twin-line welding hose management is required. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making it suitable for fixed shop installations as well as service vehicles. The external dual-ported brass swivel allows both hose connections to be made from the same side of the reel, eliminating the need to dismount the unit during hose connection or service.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge-style motor for easy removal and maintenance
• External 90-degree full-flow dual-ported brass swivel with Viton seals for reliable welding gas delivery
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post with no-weld construction and Super Hub dual axle support for maximum stability
• Multi-position guide arm adjustable for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish for chip resistance and corrosion inhibition with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven welding hose reel for use with 1/4 inch ID twin-line welding hose in industrial and commercial welding setups.

Installation Notes

Installation is typically performed by qualified welding equipment technicians or industrial maintenance professionals. Shut off all gas supply lines and relieve hose pressure completely before mounting or servicing this reel. Ensure the mounting surface is rated to support the reel weight and any additional hose load. Follow applicable OSHA and local safety codes governing compressed gas hose and welding equipment installation.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 100 ft
• Drive Type: Spring driven
• Swivel Type: External 90-degree full-flow dual-ported brass with Viton seals
• Frame and Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• UPC: 674255730144

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWTL-N-1100
